Product Details:
|
| Model NO.: | QHCSD-69 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2year | After-sales Service: | 2 Year |
| Diesel Engine Brand: | Cummins | Dredging Depth: | 0.5 Meter -30 Meter |
| Water Flow: | 400 Cubic Meter To 20000 Cubic Meter | Maximum Discharge Distance: | 6 Kilometer |
| Capacity: | 80 Cubic Meter To 6000 Cubic Meter Per Hour | PLC System: | Siemens |
| Suction Pump Brand: | Shijiazhuang | Application: | River Lake Port Reservoir Inland Waterway |
| Cutter Head Power: | 30 Kw To 800 Kw | Hydraulic Control System: | Rexroth |
| Product Brand: | Set Sail | Optional: | Spud Carrier |
| Product Name: | Cutter Suction Dredger | Product Control: | Hydraulic |
| Cutter Head Diameter: | 1800mm | Transport Package: | Bulk Or Container |
| Specification: | Total Length 17 Meter-60 Meter | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 895100000 |
| Supply Ability: | 1400 Sets /Year | Package Size: | 3900.00cm * 860.00cm * 225.00cm |
| Package Gross Weight: | 230000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 100000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

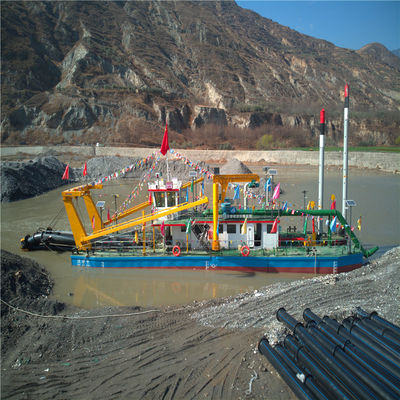

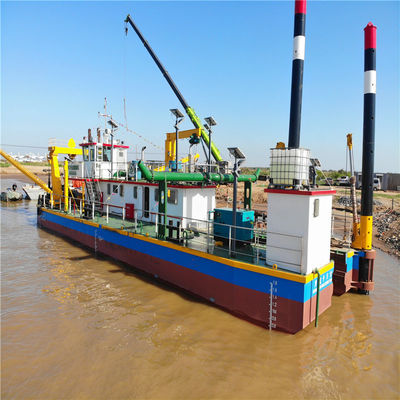

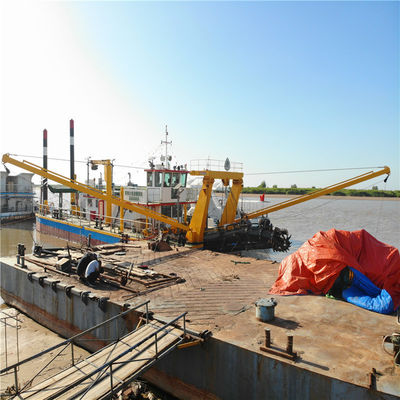

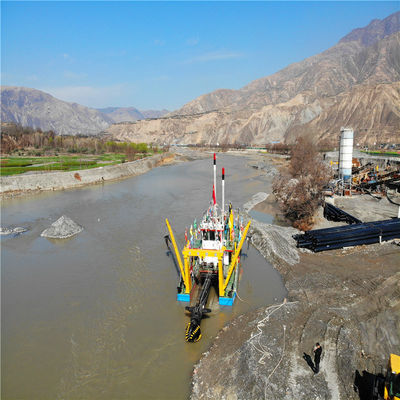

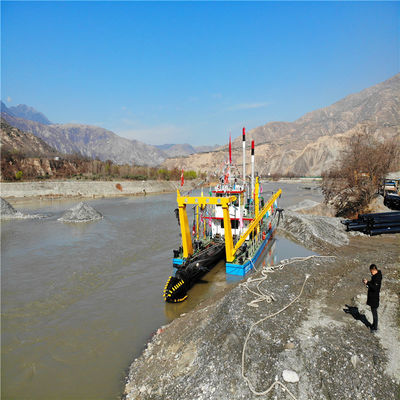

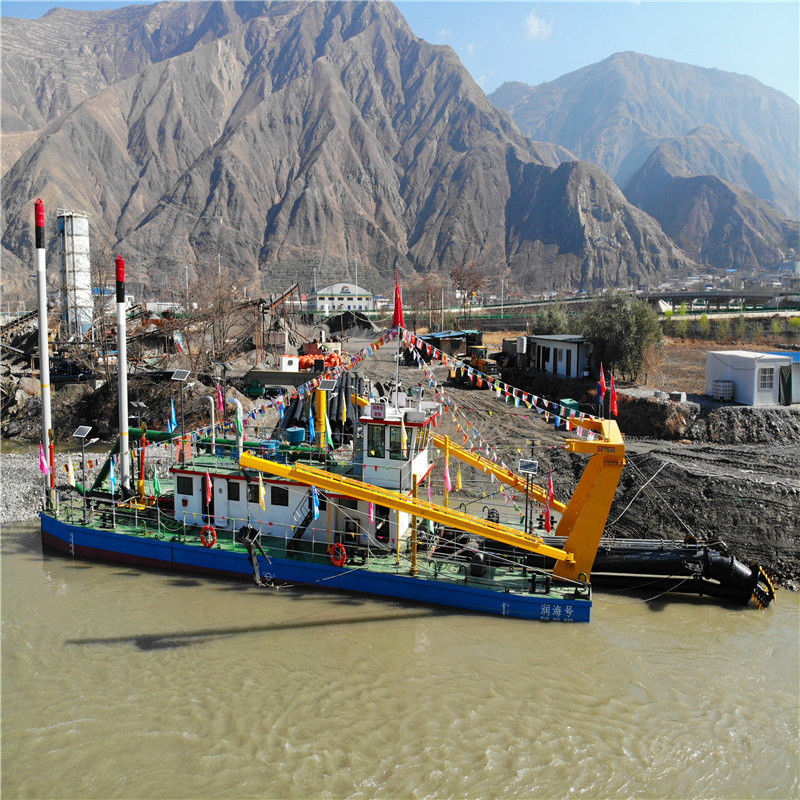

| Set Sail cutter suction dredger is widely used for river lake port and inside waterways etc . cutter suction dredger can process sand mud gravel from all kinds of dredging project . Set sail cutter suction dredger adopts good quality device to achieve the highest performance .let the customer spends the lowest cost to Get the highest profit Configuration of Cummins diesel engine ( Otherwise can provide carter Weichai and others diesel engine brand )Shijiazhuang slurry pump and hydraulic pump from the America or Germany . all configurations can reach the low failure low fuel consumption high capacity and high efficiency. |
| NO. item | Total length(m) | Water flow(m3) | Capacity (m3) | Engine power(kw) | Diging depth(m) | Discharge distance(m) | Cutter power(kw) |
| 8 inch | 17 m | 800 m3 | 160 m3 | 220 kw | 8m | 800 m | 30kw |
| 10 inch | 23 m | 1000 m3 | 200 m3 | 336 kw | 9 m | 1000 m | 50 kw |
| 12 inch | 25 m | 1500 m3 | 300 m3 | 559 kw | 10 m | 1200 m | 60 kw |
| 14 inch | 27 m | 2000 m | 400 m3 | 634 kw | 11 m | 1500 m | 70 kw |
| 16 inch | 29 m | 2500 m3 | 500 m3 | 746 kw | 13 m | 1500 m | 70 kw |
| 18 inch | 31 m | 3000 m3 | 600 m,3 | 895 kw | 14 m | 1500 m | 80 kw |
| 20 inch | 36 m | 4000 m3 | 800 m3 | 1268 kw | 15 m | 2000 m | 170 kw |
| 22 inch | 38 m | 4500 m3 | 900 m3 | 1491 kw | 16 m | 2000 m | 170 kw |
| 24 inch | 41 m | 5500 m3 | 1100 m3 | 2190 kw | 16 m | 2000 m | 300 kw |
| 26 inch | 43 m | 6000 m3 | 1200 m3 | 2380 kw | 16 m | 2000 m | 350 kw |
| 28 inch | 45 m | 7000 m3 | 1400 m3 | 3000 kw | 17 m | 2200 m | 500 kw |
| 32 inch | 50 m | 7500 m3 | 1500 m3 | 3500 kw | 17 m | 2500 m | 500 kw |
| 1 | Reliable and efficiency: The key component like the diesel engine slurry pump and hydraulic control system adopts international brand. |
| 2 | Tested in the pool delivery before :Quality testing for each dredger delivery before to insure all the function working smoothly. |
| 3 | Service:Experienced engineers to guide the installation and training the local workers . Engineers can offer support all time . |
| 4 | Installation and transportation:Dismantle structure is easily for installation and transportation . |
| *Our factory can offer the long time after -sale service and free spare parts for customers |
| *Our factory can offer the experienced installation team for installation and training the local workers |
| *we can according to the request of customers to choose the reasonable and practical device |
| *we can provide the professional and quick solution for any problem |
| *we have the professional technician regularly to follow up customers |
| *we can sign all kinds of agreement to ensure the customers right |
| Company profile : Set Sail Dredging Equipment Machinery Co., Ltd .was established in 1992. Over the 20 years development . factory covers area of 1500 acres with more than 200 employees .our mainly product : all kids of cutter suction dredger jet suction dredger chain bucket sand and gold dredger electrical cutter suction dredger trailing suction dredger sand transportation boat multi-function service boat etc. We can according to the requirements to customized the all products. |
| Company products introduce: Our certification: our factory has ISO 9001 Quality system and CE certification system the design construction is according to the standards of CCS. We can assist our customers to get the special certification of suitable for local. |
| Company business customers introduce : Our product are exported more than 50 country such as Bangladesh Malaysia Nigeria Indonesia Philippines Congo etc. Our product is sold all parts of world our factory provide the high quality an service for the wold customers. |
