Product Details:
|
| Model NO.: | QHCSD-131 | Slot Type: | CTD |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Total Length: | 31m | Total Width: | 7 |
| Total Depth: | 2 | Total Weight: | 120t |
| Main Engine Brand/Power: | Cumins /557kw | Auxiliary Engine Power: | 200kw |
| Pump Size: | 400 | Head: | 50m |
| Dredging Depth: | 12m | Discharge Distance: | 1000m |
| Discharge Pipe Diameter: | 400mm | Cutter Head Power: | 108kw |
| Anchor Boom Length: | 12m | Cutter Head Diameter: | 1450mm |
| Total Fuel Consumption: | 87kw | Transport Package: | In Bulk Or Container |
| Specification: | Capacity 400m3/h | Trademark: | Set Sail |
| Origin: | China | HS Code: | 895100000 |
| Supply Ability: | 3000set/Year | Package Size: | 3100.00cm * 700.00cm * 200.00cm |
| Package Gross Weight: | 120000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Dense Medium Cyclone |
| Samples: | US$ 5000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Dredging depth | 12m |
| Capacity | 400m3 |
| Discharge distance | 1000m |
| Draft | 1.2m |
| Total weight | 120t |
| Total length | 31m |
| Total width | 7m |
| Total hight | 2m |
| Main pump size | 400ND |
| Water flow | 2000m3 |
| Head diameter | 1450mm |
| Speed | 11/22/33 |
| Discharge distance pipe diameter | 350mm |
| Main engine power/brand | 557kw |
| Auxiliary engine power /brand | 200kw |
| Pump Gearbox brand | Fada |
| Speed ratio | 2:1 |
| Hydraulic gearbox brand | Fada |

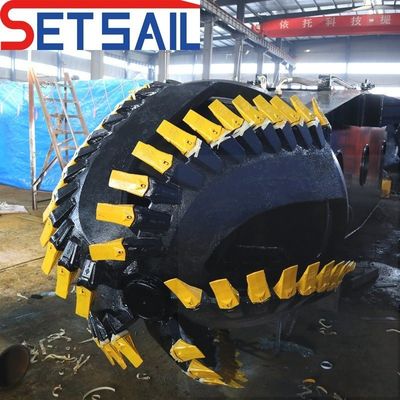

| Cutter head diameter | 1450mm |
| Cutter head power | 108kw |
| Spud diameter /wall thickness | 425mm*20mm |
| Spud Length | 17m |
| Spud weight | 7.2t |

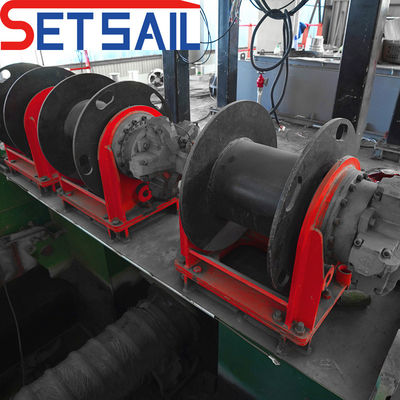

| swing winch wire rope diameter | 22mm |
| Lifting winch wire rope diameter | 24mm |
| trolley moveing distance | 6m |
| Oil cylinder diameter | 160mm |
| Hydraulic system brand | Rexroth/Huade |
| Anchor weight | 400kg |
| Diesel engine | Normally cumins on dredger Cater .Weichai Yuchai and other can available |
| Cutter head | Generally drive power hydraulic . Electric power cutter head can offer |
| Generator set | Cumins brand generator set Weichai brand others can available |
| Hydraulic system | Hydraulic control system from Germany Rexroth |

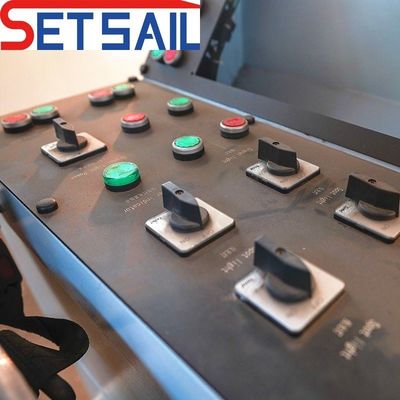

| PLC system | PLC adopts advanced system from Germany Siemens |
| 1 | Cutter suction dredger is widely used in the river lake .sea .inland waterway and reservoir so on for dredging project |
| 2. | Cutter suction dredger is helpful for the port construction and match the wash sand equipment for project |
| 3. | Cutter suction dredger can match the mining machinery to get the gold and diamond etc. |
| 4. | Cutter suction dredger is suitable for all kinds of working situation , especially river with the high sand content and large project |
| 5. | Design of cutter suction dredger can reach the more dredger depth . we can make the design according to the dredging depth working site. |
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
| We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc. |
