Product Details:
|
| Model NO.: | QHCSD-145 | Slot Type: | CTD |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Total Length: | 27m | Total Width: | 7.5m |
| Total Depth: | 3.5m | Total Weight: | 145t |
| Main Engine Brand/Power: | Cumins /634kw | Auxiliary Engine Power: | 220kw |
| Pump Size: | 350ND | Head: | 45m |
| Dredging Depth: | 11m | Discharge Distance: | 1500m |
| Discharge Pipe Diameter: | 300mm | Cutter Head Power: | 70kw |
| Anchor Boom Length: | 14m | Cutter Head Diameter: | 1500mm |
| Total Fuel Consumption: | 98kw | Transport Package: | In Bulk |
| Specification: | Capacity 400m3/h | Trademark: | Set Sail |
| Origin: | China | HS Code: | 895100000 |
| Supply Ability: | 5000 Sets/Year | Package Size: | 3100.00cm * 700.00cm * 200.00cm |
| Package Gross Weight: | 160000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 10000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Dredging depth | 11m |
| Capacity | 400m3 |
| Discharge distance | 1500m |
| Draft | 1.2m |
| Total weight | 145t |
| Total length | 27m |
| Total width | 7.5m |
| Total hight | 2m |
| Main pump size | 350ND |
| Water flow | 2000m3 |
| Speed | 11/22/33 |
| Discharge distance pipe diameter | 250mm |
| Main engine power/brand | 634kw |
| Auxiliary engine power /brand | 220kw |
| Pump Gearbox brand | Fada |
| Speed ratio | 2:1 |
| Hydraulic gearbox brand | Fada |
| Cutter head diameter | 1500mm |
| Cutter head power | 70kw |
| Spud diameter /wall thickness | 425mm*20mm |
| Spud Length | 17m |
| Spud weight | 7.2t |
| swing winch wire rope diameter | 22mm |
| Lifting winch wire rope diameter | 24mm |
| trolley moveing distance | 2.5m-4m |
| Oil cylinder diameter | 160mm |
| Hydraulic system brand | Rexroth/Huade |
| Anchor weight | 400kg |

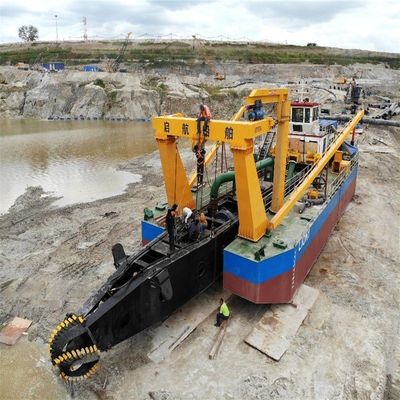

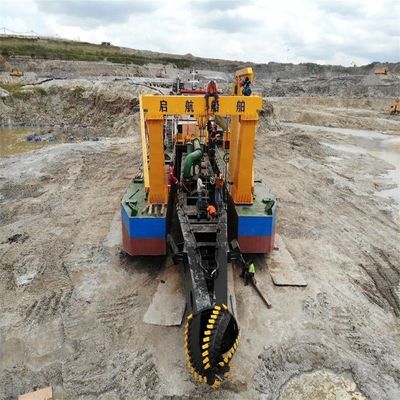

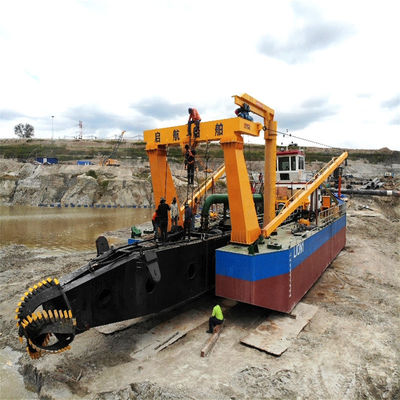

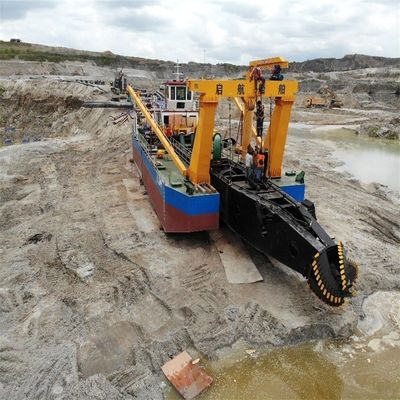

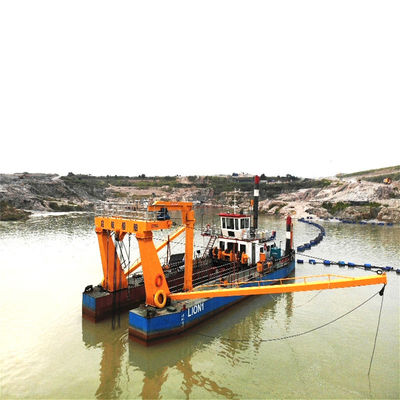

The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China. | Hydraulic brand : Rexroth and parke Power : diesel engine power . electric power Feature : High pressure . reliable performance . low failure Function: Apply all hydraulic power to the whole dredger Hydraulic valve brand : Rexroth . parke Feature : stable performance . low failure long service life Function : control the hydraulic equuipment on the dredger |
| Diesel engine | Normally cumins on dredger Cater .Weichai Yuchai and other can available |

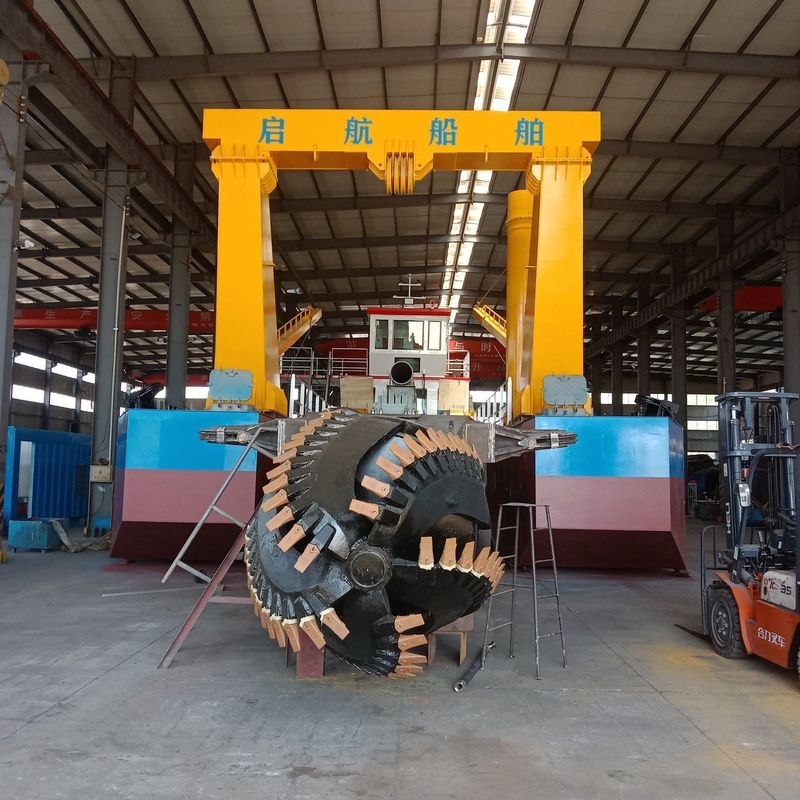

| Cutter head | Generally drive power hydraulic . Electric power cutter head can offer |
| Generator set | Cumins brand generator set Weichai brand others can available |
| Hydraulic system | Hydraulic control system from Germany Rexroth |
| PLC system | PLC adopts advanced system from Germany Siemens |
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
| We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc. |
