Product Details:
|
| Model NO.: | QHCSE-30 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1year | After-sales Service: | Lifelong |
| Capacity: | 60-4000m3 | Water Flow: | 450-20000m3 |
| Discharge Distance: | 500-5000m | Total Weight: | 28-1000t |
| Total Length: | 16.5-50m | Width: | 3.2-12.2m |
| Hight: | 1.26-5m | Bottom Plate Thickness: | 6-20mm |
| Front Plate Thickness: | 6-25mm | Deck Plate Thickness: | 6-20mm |
| Side Plate Thickness: | 6-25mm | Pump Head: | 39-65m |
| Pump Discharge /Suction Pipe: | 200-900mm | Main Engine Power: | Cummins 160kw-3000kw |
| Auxiliary Enigne Power: | Cummins 100kw-2000kw | Transport Package: | Canvas |
| Specification: | Dredging Depth 1-30m | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 5000set/Year | Package Size: | 3800.00cm * 750.00cm * 200.00cm |
| Package Gross Weight: | 180000.000kg | Lead Time: | 75 Days (1 - 1 Sets) To Be Negotiated ( > 1 Sets) |
| Type: | Cutter Suction Dredger | Power Type: | Diesel |
| Cyclone Type: | Hydrocyclone | Samples: | US$ 150000/Set 1 Set(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

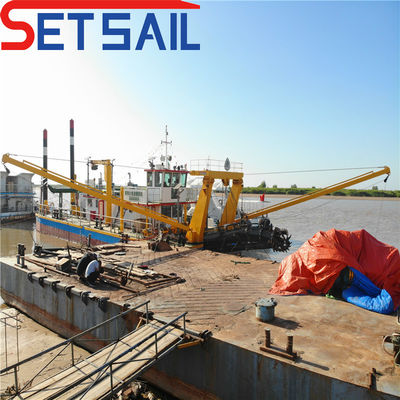

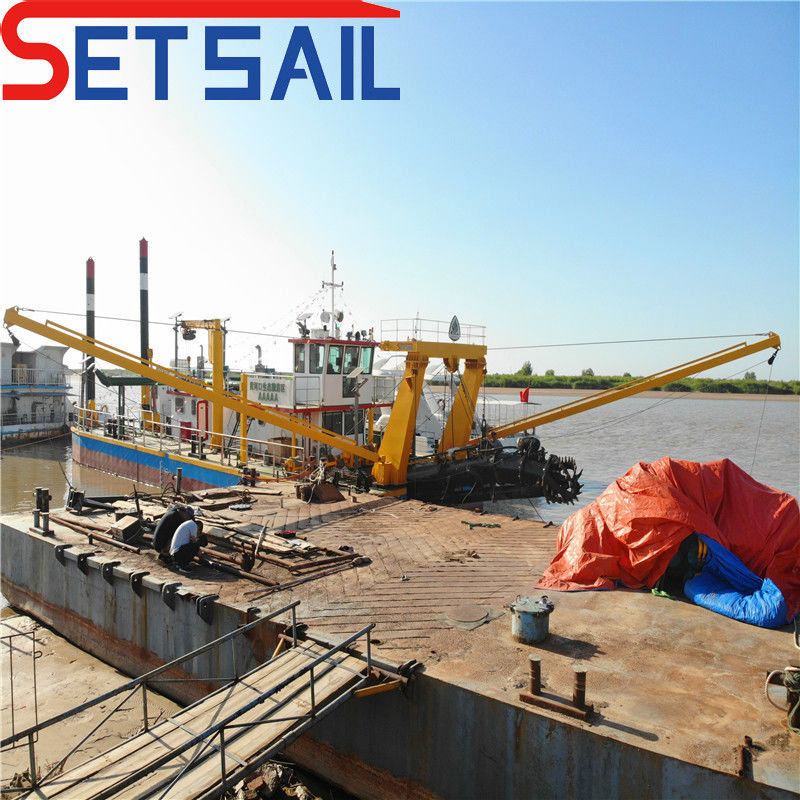

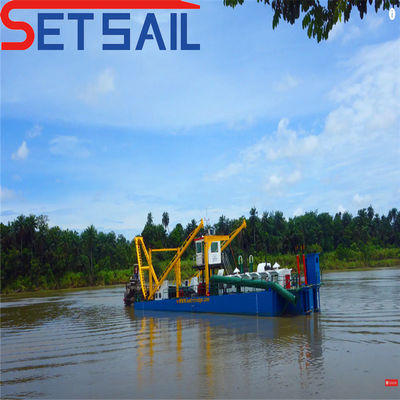

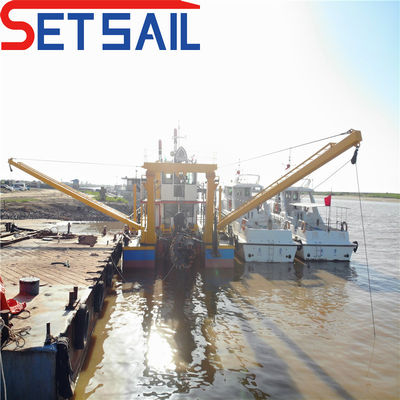

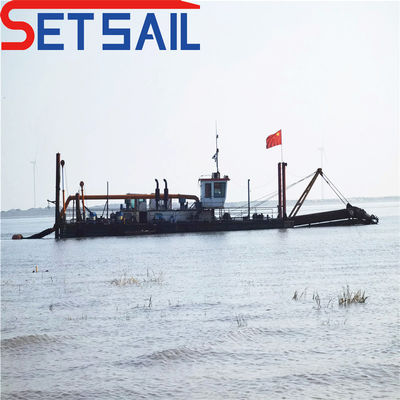

| Setsail cutter suction dredger is the most popular dredging eqipment recently . it is widly used in the all kinds of dredging project . it is suitable for river .lake .sea . reservoir . port construction so on . it can process the sand mud silt and all kinds of mixture . full automatic hydraulic control system . Cummins CAT Weichai so on diesel engine . PLC Siemens . Rexroth hydraulic .Shijiazhuang pump and europe brand so on famous equipment on our cutter suction dredging equipment . in addtion . full electric power is used on our cutter suction dredger |
| Item /size | 8inch | 10 inch | 12inch | 18inch | 20inch | 24inch | 26inch |
| Capacity (m3) | 160 | 300 | 400 | 700 | 1000 | 1400 | 1800 |
| Dredging depth(m) | 8 | 8 | 12 | 15 | 15 | 18 | 18 |
| Discharge distance (m) | 1000 | 1000 | 1000 | 1500 | 1500 | 1500 | 1500 |
| Total weight (t) | 85t | 90t | 120t | 180t | 230t | 360t | 380t |
| Pump size | 250 | 350 | 400 | 450 | 500 | 600 | 650 |
| Water flow (m3) | 800 | 1500 | 2000 | 3500 | 5000 | 7000 | 9000 |
| Discharge pipe dia.(mm) | 250 | 350 | 400 | 450 | 500 | 600 | 650 |
| Diesel engine brand | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins |
| Main engine power(kw) | 230 | 456 | 557 | 1137 | 1335 | 1620 | 1950 |
| Auxiliary engine power(kw) | 100 | 122 | 200 | 260 | 405 | 700 | 700 |
| Cutter head power (kw) | 50 | 64 | 78/108 | 180 | 260 | 450 | 450 |

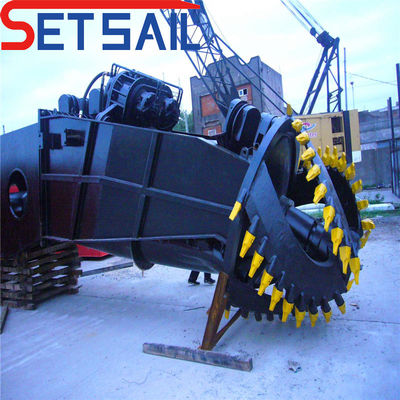

| Cutter head diameter(mm) | 1000 | 1200 | 1450 | 1800 | 2000 | 2400 | 2400 |
| Hydraulic gerbox brand | Fada | Fada | Fada | Fada | Fada | Fada | Fada |
| Hydraulic system brand | Rexroth | Rexroth | Rexroth | Rexroth | Rexroth | Rexroth | Rexroth |
| Anchor boom length(m) | 6 | 9 | 12 | 15 | 15 | 18 | 18 |
| trolley stroke(m) | 2.5-3.5 | 2.5-4 | 2.5-4 | 4-6 | 4-6 | 6-8 | 6-8 |
| Notice: Above parameter is accurate and real infromation .cutter suction we can do maximum water flow more than 20000m3 maximum discharge distance over 5 kilometer .maximum dredging depth over 30 meter . | |||||||
| 1 step | Purchase the consist standard marine plate . Cummins engine . Shijiazhuang slurry pump and Rexroth so on |
| 2 step | Cut all kinds of plate and partial welding |
| 3 step | Welding for the hull . including the main pontoon side pontoon so on . |
| 4 step | Assemble the configuration device including engine pump hydraulic system cutter head generater set anchor boom so on |
| 5 step | Painting for all product body . advanced anti-crrosion technology to protect the cutter suction dredging equipment |
| 6 step | Testing dredging equipment in the pool . testing for wate flow capacity dredging depth diesel engine pump hydraulic systme PLS etc. |
| Our dredging equipment are exported more than 200 area and 100 contries . such as Nigerial. Malaysia. Bangladish . Cameroon .South Africa. Congo .Indonesia. Philippines. so on. |
| Qingzhou Setsail Dredging Machinery Equipment Co., Ltd. Is located in Qingzhou City Shandong Province China. total area near 90,000 m2. and more than 25 years manufacturing experience in water area environmental protective equipment. It is a professional supplier of integrated with R&D, consultation, manufacturing and after-sale service. Kehan now has obtained many certifications: CE, ISO9001:2015, ISO14001:14001, ISO45001. |
| The main productions like Cutter suction dredgers. Wheel bucket sucion dredger . chain bucket gold dredger . multi -fuction service working boat aquatic weed harvester and related equipment have been exported to near 100 areas and countries. |
| Setsail factoruy as the high-end brand and has been highly reputed by customers of its products' durable, high efficiency, low break down, short delivery time and professional field service. |
| With professional engineer teams. global trading teams. professional production process and CCS certified welders lead to Setsail's fast development today. Setsail is committed to creating a world famous brand in the field of water environment protection. |
