Product Details:
|
| Model NO.: | 8inch-31 | Slot Type: | CTN |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Dredging Depth: | 8 Meter | Solid Capacity: | 160 M3 |
| Discharge Distance: | 800 Meter | Total Weight: | 85ton |
| Total Length: | 31.1 Meter | Total Width: | 5.5meter |
| Total Height: | 1.48meter | Sand Pump Brand: | Shijiazhuang |
| Water Flow: | 800m3 | Head: | 46 Meter |
| Main Engine Power: | Cummins 230kw | Auxiliary Engine Power: | Cummins 100kw |
| Cutter Head Diameter: | 1000 Mm | Cutter Head Power: | 50kw |
| Hydraulic Brand: | Rexroth | Transport Package: | Canvas |

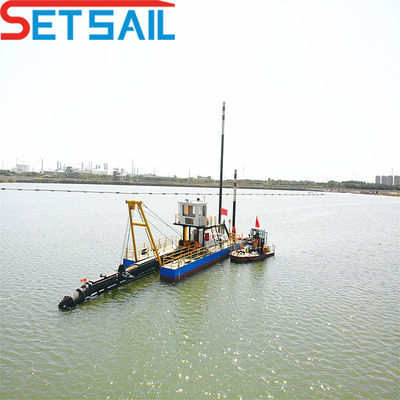

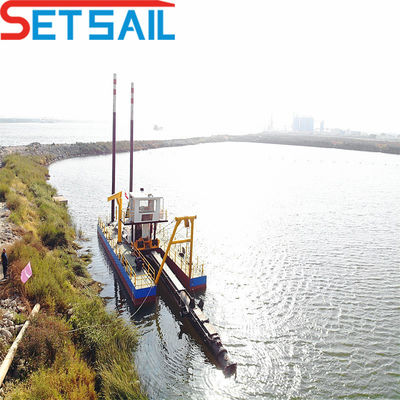

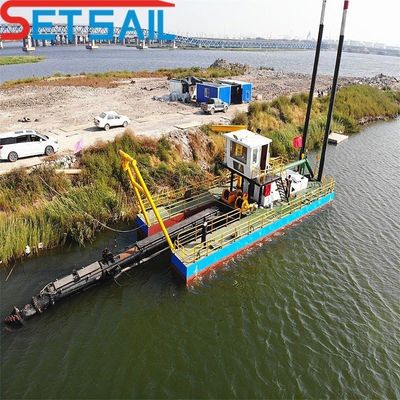

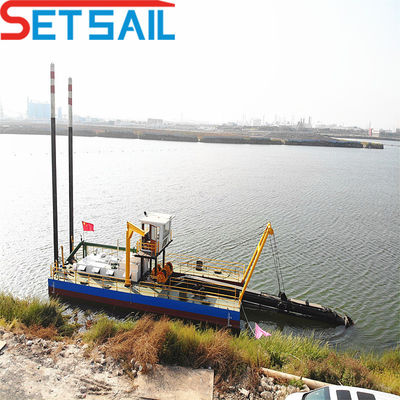

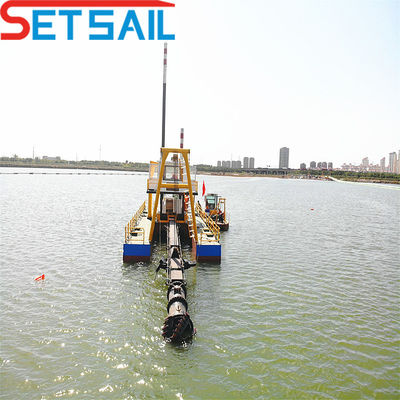

| Specification: | 8inch Cutter Suction Dredger | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 2000 Sets/Year | Package Size: | 3100.00cm * 550.00cm * 150.00cm |
| Package Gross Weight: | 90000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 5000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| 1 | Main engine and auxiliary engine from US and UK .we can according to your request to offer engine brand. |
| 2 | Hydraulic control system from Rexroth. |
| 3 | Slurry pump from Kingda. |
| 4 | PLC system from Siemens. |
| 5 | Bushes/Shaft from NSk -Japan. |
| 6 | Sealing from parker -America. |
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
| 1 | Main auxiliary Engine brand | Cummins |
| 2 | Main/auxiliary engine power | 456/122kw |
| 3 | Speed | 1500/1800/r/min |
| 4 | Cooling way | Water cooling way |
| 1 | Water flow | 1500m3 |
| 2 | Head | 53m |
| 3 | Speed | 720r/min |
| 4 | Efficiency | 76.75% |
| 5 | Suction /discharge pipe size | 350mm |
| 1 | Diameter | 1200mm |
| 2 | Speed | 11/22/33 |
| 3 | Cutter power | 64kw |
| 1 | Solid capacity | 160cubic meter |
| 2 | Discharge distance | 800 meter |
| 3 | Total weight | 90 ton |
| 4 | Total length | 31.1 meter |
| 5 | Total width | 5.5 meter |
| 6 | Total height | 1.48 meter |
| 7 | Sand pump water flow | 800 cubic meter |
| 8 | Suction /discharge pipe size | 250mm |
| 9 | Main engine brand /power | Cummins/230kw |
| 10 | Auxiliary engine brand/power | Cummins/100kw |
| 11 | Cutter head diameter | 1000mm |
| 12 | Cutter head speed | 16.5/33 r/min. |
| 13 | Cutter head power | 50kw |
| 1 | Make high depther dredger . especially is electrical underwater pump can reach the steadier performance . |
| 2 | Advanced detail design. from point to surface are according to the actual situation to design. |
| 3 | Configuration pretty rich. Anchor boom . carrirage. depth sounder meter .water flow meter . concentrate meter so on . |
| 4 | Long discharge distance . according all dredger working situation to reasonable design to save the budget for customer. |
| 1 | Help the customer to solve the any failure in time . |
| 2 | Cost for Offering the full spare parts |
| 3 | Low salary for Sending the engineer to the abord |
| 4 | Long time quality warrant |
| 1 | You are factory ? | We are factory we can offer the lowest quotation . |
| 2 | You factory ability? | Our factory has works more than 100 . over 20 engineers in research development team |
| 3 | Do you have many abord cutomers? | Bangladesh. Nigeria. Malaysia. The Philippines. In Indonesia. Chad. Guinea. more than 100 contries . |
| 4 | You can offer the dredger working site abord? | Yes . we can offer the working site for visitting . |
| 5 | Your can offer the all certification ? | We have full certifications Such as ISO . CE SO ON |
