Product Details:
|
| Model NO.: | QHCSD-238 | Slot Type: | CTD |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Capacity: | 160m3-10000m3 | Dredging Depth: | 8m-30m |
| Water Flow: | 800m3-20000m3 | Max.Discharge Distance: | 5000m |
| Diesel Enigne Brand: | Cat. Cummins . Weichai | Hydraulic System: | Rexroth |
| Cutter Head Diameter: | 70mm-3000mm | Cutter Head Power: | 30kw-500kw |
| Discharge Pipe Diameter: | 200mm-900mm | PLC Brand: | Siemens |
| Total Weight: | 50t-800t | Pump Size: | 200ND-900ND |
| Head: | 30m-70m | Product Brand: | Set Sail |
| Optional: | Water Flow Meter .Concentration Meter | Transport Package: | Protection Film Package |
| Specification: | Alloy Steel | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 8905100000 |
| Supply Ability: | 2000set /Year | Package Size: | 1900.00cm * 380.00cm * 250.00cm |
| Package Gross Weight: | 68000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Dense Medium Cyclone |
| Samples: | US$ 150000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| 1. Cutter Suction Dredger of steel construction, the non self-propelled and self-propelled dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers. The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China. |
| 2. It's hull consists of a main pontoon and two side pontoons. Is to be easy to dismantle or mount for transportation by road, rail or water, and is to be easy to reassemble at project site. The engines and dredge pump are located in the center pontoon, the 2 side pontoons serve as fuel bunkers, ballast tanks and store. |

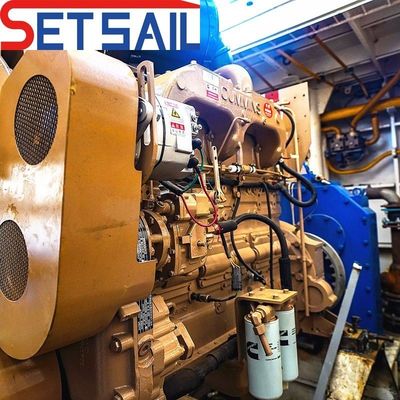

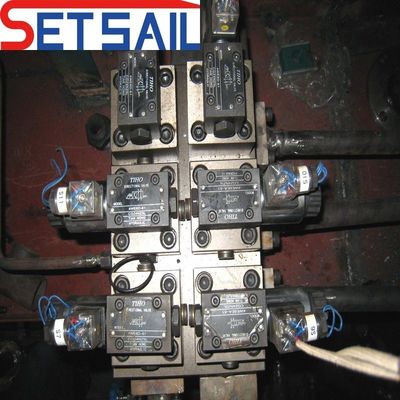

| 3. The dredger is powered by diesel engines. The main diesel engine is to drive the dredge pump and the auxiliary engine is to drive hydraulic system, including cutter, swing and ladder winches, anchor winches, and the spud rams etc. |
| 4. The spacious control cabin is ergonomically designed with 360 degree view. All the operation buttons, swifts, indicators, gauges are equipped on the control desk. Only one worker can control all the dredger in the operation room. |
| 5. The dredger is painted by 4 layers of marine paint to protect from the corrosion. The ZINC anode can be used to give better anti-corrosion function. |
| 1 | Cutter Head | 9 | Signal Light Support | 17 | Ventilator |
| 2 | Pulley for Ladder | 10 | Control Cabin Base | 18 | Spud |
| 3 | Pulley for Swing | 11 | Diesel Engine | 19 | Discharge Pipe |
| 4 | Anchor | 12 | 3 phase Electric Motor | 20 | Spud Holder |
| 5 | Pulley for A-shape Portal Frame | 13 | Diesel Engine | 21 | Rail |
| 6 | A-shape Portal Frame | 14 | Gearbox | 22 | Suction Pipe |
| 7 | Swing Winch | 15 | Slurry Pump | ||
| 8 | Control Cabin | 16 | Main Pontoon Cover |
| Size | Capacity | Dredge depth | Water flow | Discharge distance | Fuel consumption | Diesel engine power and brand |
| 6 | 90m3 | 6m | 450m3 | 500m | 25 L | Cummins 180kw |
| 8 | 160m3 | 8m | 600m3 | 800m | 38 L | Cummins 298kw |
| 10 | 200m3 | 9m | 800m3 | 1000m | 52 L | Cummins 447kw |
| 12 | 300m3 | 10m | 1200m3 | 1200 | 70 L | Cummins 582kw |
| 14 | 400m3 | 12m | 2000m3 | 1500m | 73 L | Cummins634kw |
| 16 | 500m3 | 14m | 2000m3 | 1500m | 85 L | Cummins 746kw |
| 18 | 600m3 | 15m | 3000m3 | 2000m | 103 L | Cummins 895kw |
| 20 | 700m3 | 15m | 3500m3 | 2000m | 154 L | Cummins 1342kw |
| 22 | 900m3 | 16m | 4500m3 | 2000m | 188 L | Cummins 1641 kw |
| 24 | 1100m3 | 20m | 5500m3 | 2100m | 251 L | Cummins 2190kw |
| 26 | 1400m3 | 20m | 7000m3 | 2200m | 273 L | Cummins 2380kw |
| 28 | 1600m3 | 21m | 8000m3 | 2300 | 344 L | Cummins 3000kw |
| 32 | 2000m3 | 25m | 10000m3 | 2500 | 401 L | Cummins 3500kw |
| After Cutter suction dredger is finished by the factory . Normal we use the special protection material to pack .then use the truck to transport the port . product is load into the ship as the bulk. Our factory provide the safest transportation to ensure our customers get the undamaged Product . |
| Set Sail Dredging Equipment Machinery Co., Ltd is one of the leader manufacture dredging equipment in china .our factory covers over 40000 square meter more than 200 employees in factory. Our factory has experience more than 20 years complete research development production design testing assemble after sales service department so on . let our customers do not worry anything Set sail expect cooperation with the worldwide customers to create the bright tomorrow. |
