Product Details:
|
| Model NO.: | QHCSD-274 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Power: | Diesel And Electrical | Engine Brand: | Cummins |
| Steel Plate Standard: | Ccsb | Pump Brand: | Shijiazhuang Industrial Pump |

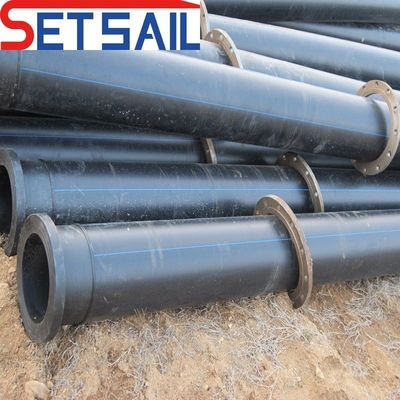

| Sand Pipe Material: | HDPE | PLC Brand: | Siemens |
| Hydraulic System: | Gemany Rexroth | Gerbox Brand: | Fada |

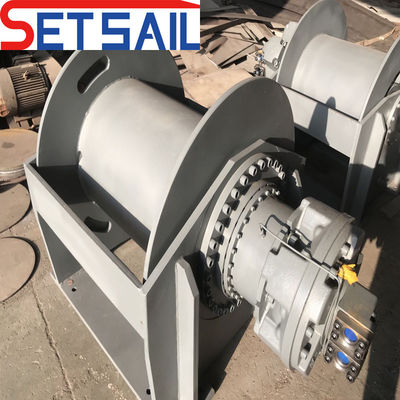

| Hydraulic Winch: | Xinhong Brand | Electrical Appliance: | ABB Brand |
| Optional: | Depth Sounder . Water Flow Meter . | Toatl Length: | 16m-50m |
| Total Breadth: | 5m-15m | Total Height: | 2m-10m |
| Total Capacity: | 120m3-8000m3 | Transport Package: | Canvas |
| Specification: | Diesel Engine Power | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 10000set/Year | Package Size: | 1900.00cm * 400.00cm * 250.00cm |
| Package Gross Weight: | 68000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 4000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

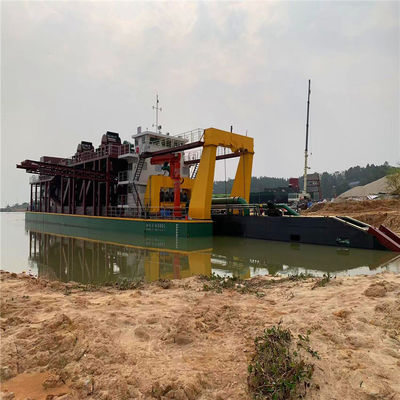

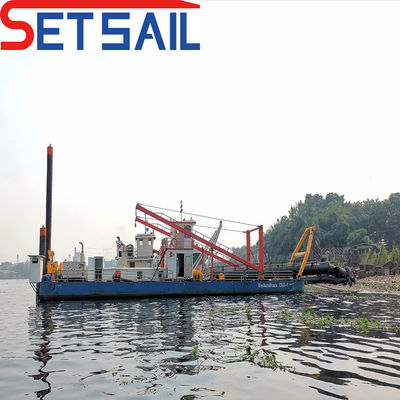

| Set Sail hydraulic cutter suction dredger can apply to all kinds of geologic structures and can be widely used in mineral digging river dredging lake dredging port dredging and reclamation works. absorbing advanced technology of Dutch related products. this series of dredgers show their feature of resonable design. all hydraulic control. simple operation. little maintenance and strong power. The capacity of dredgers ranges from 300 m3/hr to 10000 m3 per hour dredging depth from 4 m to 30 m and discharge distance from 300 m to 4000 m, which can satisfy different dredger work demands. |
| Model | QHCSD150 (6inch) | QHCSD200 (8inch) | QHCSD250 (10inch) | QHCSD300 (12inch) | QHCSD350 (14inch) | QHCSD450 (18inch) | QHCSD500 (20inch) | QHCSD600 (24inch) |
| Dimensions (L*W*H)m | 25*4.7*1.26 | 26*5.3*1.5 | 32.5*5.3*1.5 | 33*6.6*1.8 | 35*6.8*2 | 37*7.9*2.2 | 39*9*2.5 | 42*10*2.8 |
| Dredging Depth | 12m | 12m | 15m | 15m | 15m | 20m | 20m | 20m |
| Water Capacity | 600m3/h | 800 m3/h | 1600 m3/h | 2500 m3/h | 3000 m3/h | 4000 m3/h | 5000 m3/h | 5500 m3/h |
| Discharging Distance | 800m | 1000m | 1200m | 1500m | 2000m | 2000m | 2500m | 2500m |
| Total Weight | 29t | 38t | 55t | 82t | 110t | 180t | 210t | 300t |
| Remark: all of cutter suction dredging equipment are customized product . we can do the most water flow can reach the 20000 cubic meter . | ||||||||
| 1 | Specially -made cutter head structure . it can meet different working condition and add the concentration . |
| 2 | Our factory can made large number of big capacity cutter suction dredger more than water flow 20000 cubic meter |
| 3 | Specially -made structure of the dredger . such as full electric power and only one underwater structure . |
| 4 | Really import devices from the abroad on the dredger such as Rexroth hydraulic system |
| 5 | All the steel plate can reach the CCSB standard . advanced manufacture device for the all each step |
| 1. Cummins diesle engine . stable performance . long continue working time . convient after sales service |

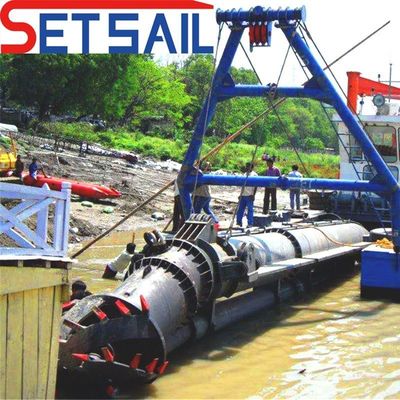

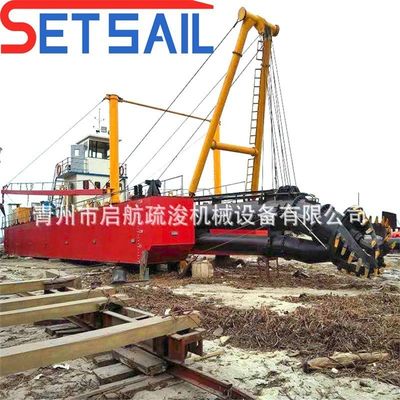

| 2. Hydraulic cutter head . different of cutter teeth shape can meet the different working condition . specially-made blade can add the capacity . |
| 3.Hydraulic pump . |
| 4.Sand pump : Shijiazhuang industiral factory. |
