Product Details:
|
| Model NO.: | QHCSD-236 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1year | After-sales Service: | Lifelong |
| Dredging Depth: | 18m | Capacity: | 1400m3 |
| Discharge Distance: | 1500m | Total Weight: | 360t |
| Total Width: | 10.2m | Total Height: | 2.7m |
| Pump Size: | 600ND | Water Flow: | 7000m3 |
| Discharge Pipe Diameter: | 700mm | Main Engine Power: | 1620kw |
| Auxiliary Engine Power: | 700kw | Engine Brand: | Cummins |
| Cutter Head Power: | 450kw | Cutter Head Diameter: | 2400mm |
| PLC: | Siemens | Transport Package: | Canvas |
| Specification: | Total Length 46m | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 1000 Sets /Year | Package Size: | 1900.00cm * 400.00cm * 250.00cm |
| Package Gross Weight: | 68000.000kg | Lead Time: | 40 Days (1 - 1 Sets) To Be Negotiated ( > 1 Sets) |
| Type: | Cutter Suction Dredger | Power Type: | Diesel |
| Cyclone Type: | Hydrocyclone | Samples: | US$ 450000/Set 1 Set(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

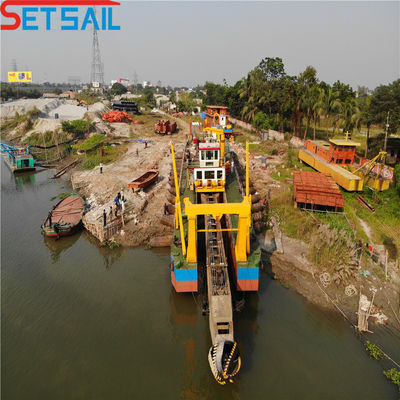

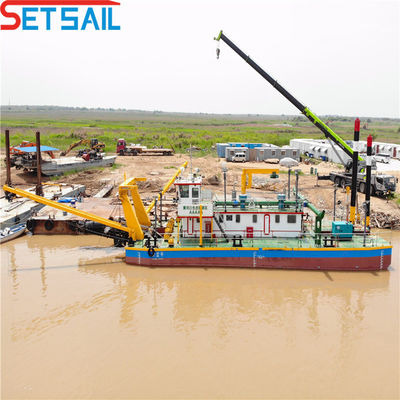

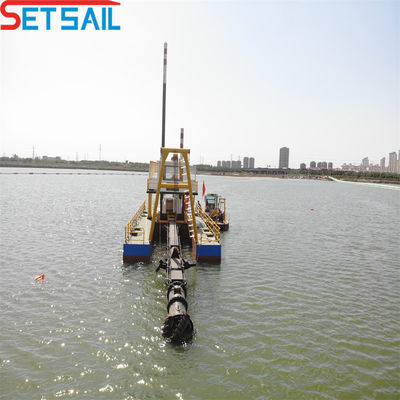

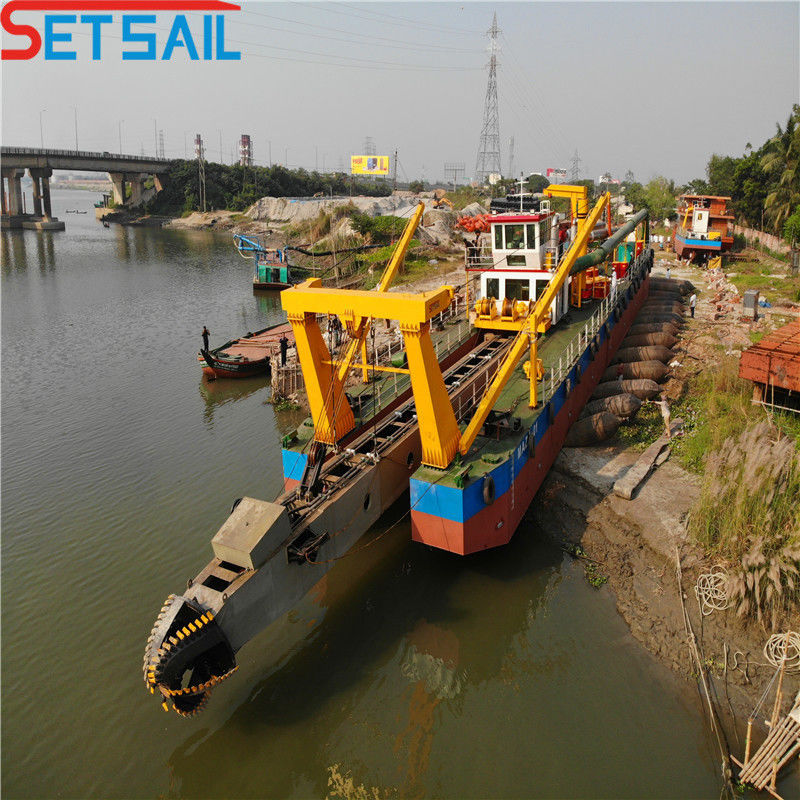

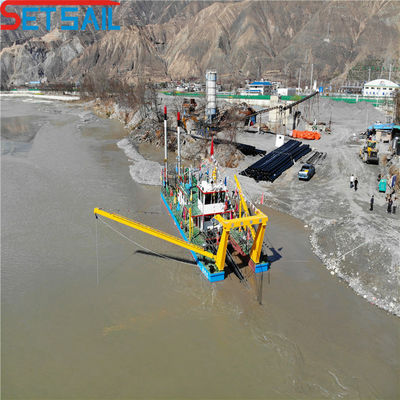

| Set Sail brand cutter suction dredger is self-propelled and non self propelled . it adopts dismantled and box structure .cutter suction dredger power from diesel engine with hydraulic control system or full of the electric power . Normally the power from the diesel engine power to drive the pump and all hydraulic system . all device use the famous brand : Cummins diesel engine. Shijiazhang industrial slurry pump .Rexorth hydraulic system . Siemens PLC system etc . our factory also offer the other brand according to the customers requirements and customize the all kinds of dredging machinery. |
| 1 | Cutter suction dredger is widely used the river and lake for dredging project . it process the sand and mud and the other mixture |
| 2 | Cutter suction dredger is used for the inland waterway construction |
| 3 | Cutter suction dredger can work for mining project match the collection mining machinery to get the gold. diamond and others |
| 4 | Cutter suction dredger can match the sand washing production line to get the clean sand |
| 5 | Cutter suction dredger can construct the pork and dredging reservoir project . |
| 6 | We can do the special cutter suction dredger to suit the sea working site . |
| Item / Information | Diesel power water flow 7000m3 24 inch cutter suction dredger |
| Maily electric motor power | 1620kw |
| Auxiliary electric motor power | 700kw |
| Water flow | 7000m3 |
| Concentration | 20% |
| Capacity | 1400m3/h |
| Cutter head diameter | 2400mm |
| Cutter head power | 450 kw |
| Cutter teeth quantity | 50 piece |
Cutter head motor brand | XHS7C7-4300*5.5 |
| Pump size | 500ND |
| Discharge pipe diameter | 600mm |
| Dreding depth | 18m |
| Discharge distance | 1500m |
| Hydraulic brand | Rexroth |
| PLC | Siemens |
| 1 | Professional team offer the profession service throughout . |
| 2 | Professional salesmen and engineer can provide the precise design and timely and efficiency communication. |
| 3 | All dredging machinery support our customers inspection . we can offer the passed product All production parts must through the strict testing . |
| 4 | Before production we can send the engineer to the on site to collect the information |
| 5 | Product is finished we can send the maintain team and engineer to abroad until the all dredger working normally . |
| 6 | We can free for training the local workers and all kinds of guidance . complex problems we can help customers to solve them when necessary we can send the engineer to foreign |
