Product Details:
|
| Model NO.: | QHCSD-229 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Dredging Depth: | 16m | Capacity: | 1100m3 |
| Discharge Distance: | 2000m | Total Weight: | 370t |
| Total Length: | 41m | Pump Size: | 500ND |
| Water Flow: | 5500m3 | Discharge Pipe Diameter: | 500mm |
| Mail Engine Power: | 2190kw | Auxiliary Engine Power: | 450W |
| PLC: | Siemens | Hydraulic System: | Rexroth |
| Total Width: | 10.2m | Total Height: | 2.7m |
| Optional: | Carrier .Water Flow Meter | Transport Package: | Canvas |
| Specification: | Capacity 1100m3/h | Trademark: | Set Sail |
| Origin: | China | HS Code: | 895100000 |
| Supply Ability: | 1000 Sets Per Year | Package Size: | 4100.00cm * 1002.00cm * 270.00cm |
| Package Gross Weight: | 360000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 200000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

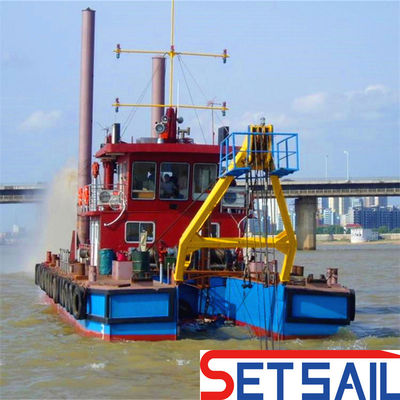

| Set Sail brand cutter suction dredger is self-propelled and non self propelled . it adopts dismantled and box structure .cutter suction dredger power from diesel engine with hydraulic control system or full of the electric power . Normally the power from the diesel engine power to drive the pump and all hydraulic system . all device use the famous brand : Cumins diesel engine. Shijiazhang industrial slurry pump .Rexorth hydraulic system . Siemens PLC system etc . our factory also offer the other brand according to the customers requirements and customize the all kinds of dredging machinery. |
| 1. | Cutter suction dredger is widely used the river and lake for dredging project . it process the sand and mud and the other mixture |
| 2 | Cutter suction dredger is used for the inland waterway construction |
| 3 | Cutter suction dredger can work for mining project match the collection mining machinery to get the gold. diamond and others |
| 4 | Cutter suction dredger can match the sand washing production line to get the clean sand |
| 5 | Cutter suction dredger can construct the pork and dredging reservoir project . |
| 6 | We can do the special cutter suction dredger to suit the sea working site . |
5. 22inch cutter suction dredger basic parameter: | Item / Information | Diesel power water flow 5500m3 24 inch cutter suction dredger |
| Maily electric motor power | 2190kw |
| Auxiliary electric motor power | 450kw |
| Water flow | 5500m3 |
| Concentration | 20% |
| Capacity | 1100m3/h |
| Cutter head diameter | 2000mm |
| Cutter head power | 300 kw |
| Cutter teeth quantity | 50 piece |
Cutter head motor brand | XHS7C7-4300*5.5 |
| Pump size | 500ND |
| Discharge pipe diameter | 500mm |
| Dreding depth | 16m |
| Discharge distance | 1500m |
| Hydraulic brand | Rexroth |
| PLC | Siemens |
| Frequency converter | GD350-1200G-6 |
7.Set sail service : | 1 | Professional team offer the profession service throughout . |
| 2 | Professional salesmen and engineer can provide the precise design and timely and efficiency communication. |
| 3 | All dredging machinery support our customers inspection . we can offer the passed product All production parts must through the strict testing . |
| 4 | Before production we can send the engineer to the on site to collect the information |
| 5 | Product is finished we can send the maintain team and engineer to abroad until the all dredger working normally . |
| 6 | We can free for training the local workers and all kinds of guidance . complex problems we can help customers to solve them when necessary we can send the engineer to foreign |
9.Customer visit our factory : 10.Factory profile and main product : | Company profile : Set Sail Dredging Equipment Machinery Co., Ltd .was established in 1992. Over the 20 years development . factory covers area of 1500 acres with more than 200 employees .our mainly product : all kids of cutter suction dredger jet suction dredger chain bucket sand and gold dredger electrical cutter suction dredger trailing suction dredger sand transportation boat multi-function service boat etc. We can according to the requirements to customized the all products. |
| Company products introduce: Our certification: our factory has ISO 9001 Quality system and CE certification system the design construction is according to the standards of CCS. We can assist our customers to get the special certification of suitable for local. |
Company business customers introduce : Our product are exported more than 50 country such as Bangladesh Malaysia Nigeria Indonesia Philippines Congo etc. Our product is sold all parts of world our factory provide the high quality an service for the wold customers. |
