Product Details:
|
| Model NO.: | QHCSD-230 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1year | After-sales Service: | Lifelong |
| Dredging Depth: | 16m | Capacity: | 1100m3 |
| Discharge Distance: | 2000m | Total Weight: | 370t |
| Total Length: | 41m | Pump Size: | 500ND |
| Water Flow: | 5500m3 | Discharge Pipe Diameter: | 500mm |
| Mail Engine Power: | 2190kw | Auxiliary Engine Power: | 450W |
| PLC: | Siemens | Hydraulic System: | Rexroth |

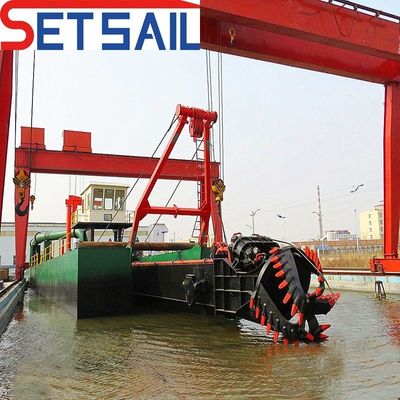

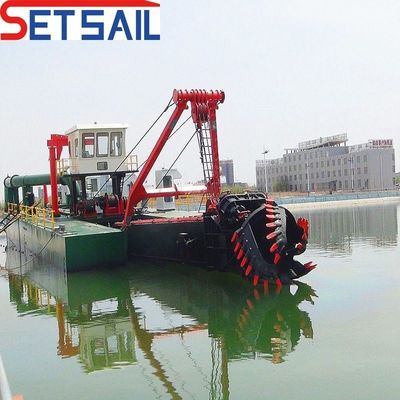

| Product Name: | 24 Inch Cutter Suction Dredger | Product Brand: | Set Sail |
| Optional: | Centrafuge Meter . Carrier | Transport Package: | Canvas |
| Specification: | Capacity 1100m3/h | Trademark: | Set Sail |
| Origin: | China | HS Code: | 895100000 |
| Supply Ability: | 1000 Sets Per Year | Package Size: | 1800.00cm * 380.00cm * 200.00cm |
| Package Gross Weight: | 40000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 200000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Set Sail brand cutter suction dredger is self-propelled and non self propelled . it adopts dismantled and box structure .cutter suction dredger power from diesel engine with hydraulic control system or full of the electric power . Normally the power from the diesel engine power to drive the pump and all hydraulic system . all device use the famous brand : Cummins diesel engine. Shijiazhang industrial slurry pump .Rexorth hydraulic system . Siemens PLC system etc . our factory also offer the other brand according to the customers requirements and customize the all kinds of dredging machinery. |

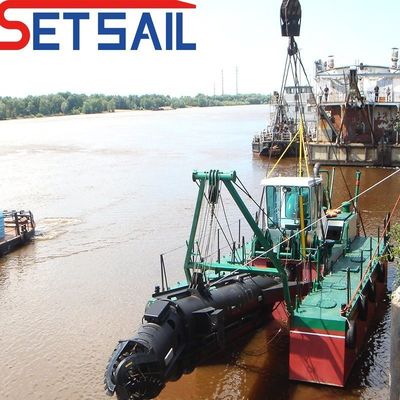

| 1 | Cutter suction dredger is widely used the river and lake for dredging project . it process the sand and mud and the other mixture |
| 2 | Cutter suction dredger is used for the inland waterway construction |

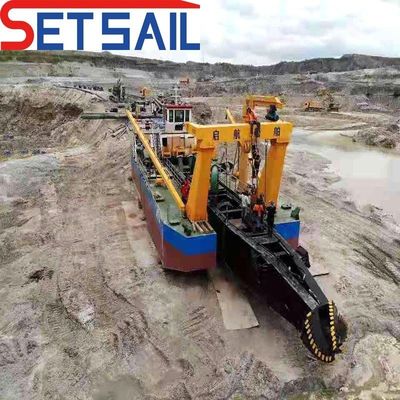

| 3 | Cutter suction dredger can work for mining project match the collection mining machinery to get the gold. diamond and others |
| 4 | Cutter suction dredger can match the sand washing production line to get the clean sand |
| 5 | Cutter suction dredger can construct the pork and dredging reservoir project . |
| 6 | We can do the special cutter suction dredger to suit the sea working site . |
5. 22inch cutter suction dredger basic parameter: | Item / Information | Diesel power water flow 5500m3 24 inch cutter suction dredger |
| Maily electric motor power | 2190kw |
| Auxiliary electric motor power | 450kw |
| Water flow | 5500m3 |
| Concentration | 20% |
| Capacity | 1100m3/h |
| Cutter head diameter | 2000mm |
| Cutter head power | 300 kw |
| Cutter teeth quantity | 50 piece |
Cutter head motor brand | XHS7C7-4300*5.5 |
| Pump size | 500ND |
| Discharge pipe diameter | 500mm |
| Dreding depth | 16m |
| Discharge distance | 1500m |
| Hydraulic brand | Rexroth |
| PLC | Siemens |
| Frequency converter | GD350-1200G-6 |
| 1 | Professional team offer the profession service throughout . |
| 2 | Professional salesmen and engineer can provide the precise design and timely and efficiency communication. |
| 3 | All dredging machinery support our customers inspection . we can offer the passed product All production parts must through the strict testing . |
| 4 | Before production we can send the engineer to the on site to collect the information |
| 5 | Product is finished we can send the maintain team and engineer to abroad until the all dredger working normally . |
| 6 | We can free for training the local workers and all kinds of guidance . complex problems we can help customers to solve them when necessary we can send the engineer to foreign |
9.Customer visit our factory :10.Factory profile and main product : Contact Person: Mr. Liu
Tel: +8618663658716
