Product Details:
|
| Model NO.: | SD-21 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Application: | River Lake Sea Pork Reservoir Inland Waterway | Engine Brand: | Cummins Weichai |
| Capacity: | 160m3- 5000m3 | Dredging Depth: | 4m -30n |
| Discharge Distance: | 1m-6000m | Hydraulic Brand: | Rexroth Vickers Parker |
| Pump Brand: | Shijiazhuang Industrial Pump | Gerbox Brand: | Huade |
| PLC Brand: | Siemens | Cutter Head Power: | 50kw-800kw |
| Aseptic Technique: | Zinc Spelter | Width: | 5m-15m |
| Depth: | 2.2m-5m | Engine Power: | 220kw-5000kw |
| Anchor Rod Way: | Hydraulic Winch | Transport Package: | Suitable For Long Transportaion Packaging |
| Specification: | Water Flow 800m3-20000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 10000 Set/Year | Package Size: | 3900.00cm * 750.00cm * 200.00cm |
| Package Gross Weight: | 230000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Cast Iron Cyclone |
| Samples: | US$ 250000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

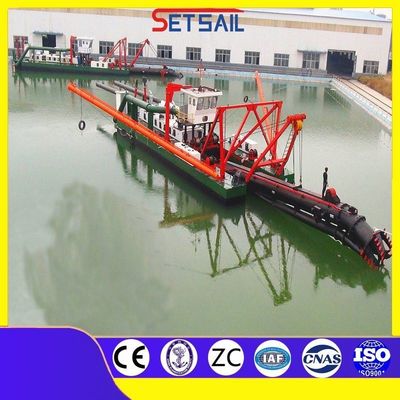

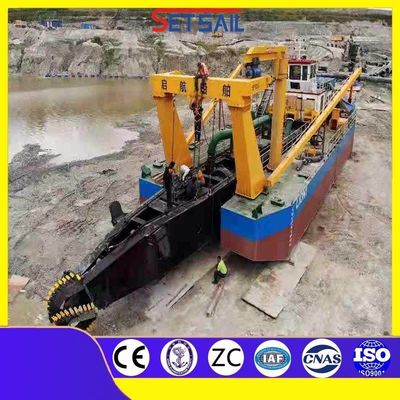

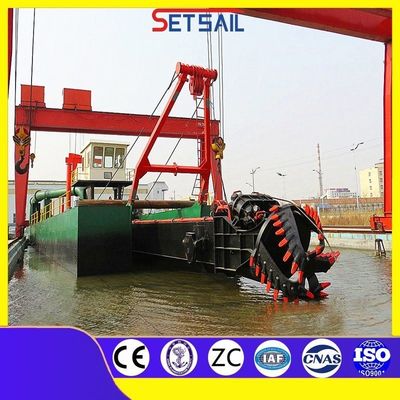

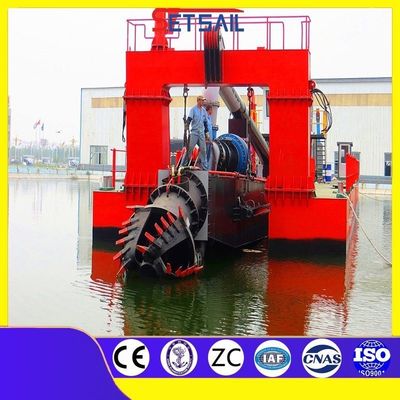

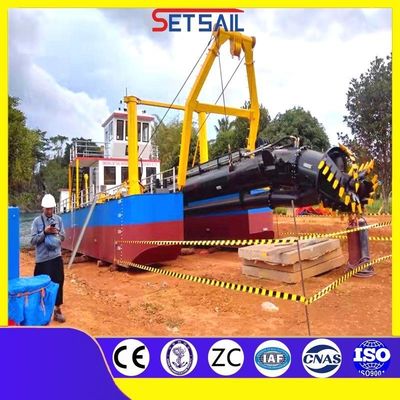

| 1. Cutter Suction Dredger of steel construction. the non self-propelled and self-propelled dismountable type. is able to berth and dredge at any waters both in the coastal area and inland rivers. The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China. |

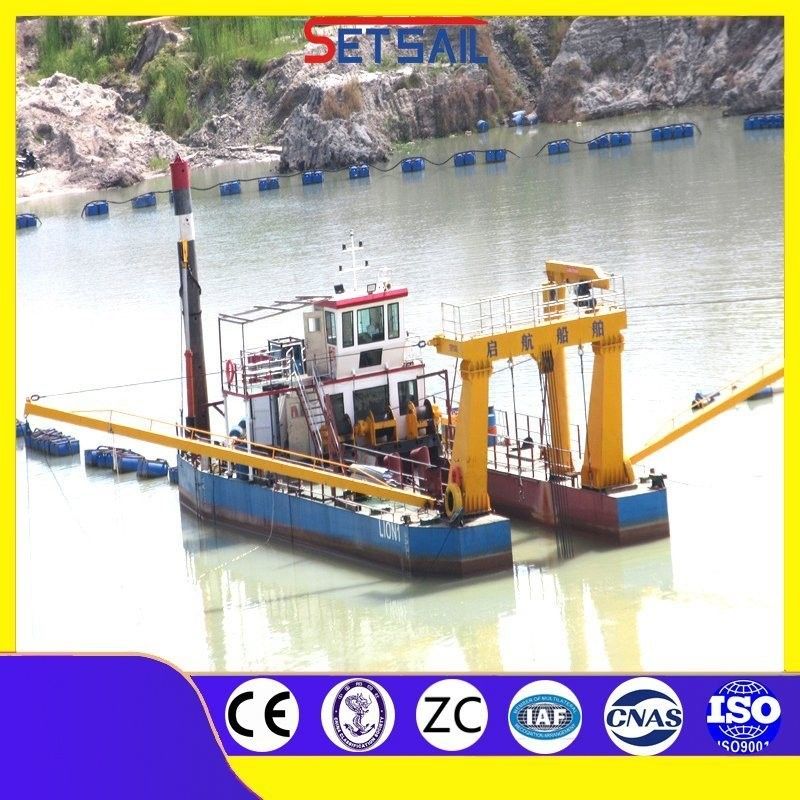

| 2. It's hull consists of a main pontoon and two side pontoons. Is to be easy to dismantle or mount for transportation by road, rail or water, and is to be easy to reassemble at project site. The engines and dredge pump are located in the center pontoon, the 2 side pontoons serve as fuel bunkers. ballast tanks and store. |
| 3. The dredger is powered by diesel engines. The main diesel engine is to drive the dredge pump and the auxiliary engine is to drive hydraulic system. including cutter. swing and ladder winches. anchor winches. and the spud rams etc. |
| 4. The spacious control cabin is ergonomically designed with 360 degree view. All the operation buttons. swifts.indicators. gauges are equipped on the control desk. Only one worker can control all the dredger in the operation room. |
| 5. The dredger is painted by 4 layers of marine paint to protect from the corrosion. The ZINC anode can be used to give better anti-corrosion function. |
| Item | Water flow(m3) | Capacity (m3) | Mainly engine power(kw) | consumption(L) | Cutter head power(kw) | Pump size | Discharge distance(m) | Dredging depth(m) | Total weight(t) |
| 8 inch | 800m3 | 160m3 | 220kw | 25L | 30kw | 150 | 800m | 8m | 60t |
| 10 inch | 1000m3 | 200m3 | 336kw | 38L | 50kw | 200 | 1000m | 9m | 65t |
| 12 inch | 1500m3 | 300m3 | 559kw | 64L | 60kw | 250 | 1100m | 10m | 130t |
| 14 inch | 2000m3 | 400m3 | 634kw | 72L | 70kw | 300 | 1200m | 10m | 145t |
| 16 inch | 2500m3 | 500m3 | 746kw | 85L | 70kw | 350 | 1300m | 11m | 145t |
| 18 inch | 3000m3 | 600m3 | 895kw | 102L | 80kw | 400 | 1500m | 13m | 180t |
| 20 inch | 3500m3 | 700m3 | 1268kw | 145L | 170kw | 450 | 1500m | 15m | 245t |
| 22 inch | 4500m3 | 900m3 | 1491kw | 171L | 170kw | 500 | 1600m | 16m | 245t |
| 24 inch | 5500m3 | 1100m3 | 2190kw | 251L | 300kw | 500 | 1600m | 16m | 370t |
| 26 inch | 6000m3 | 1200m3 | 2380kw | 273L | 300kw | 600 | 2000m | 16m | 660t |
| 28 inch | 7000m3 | 1400m3 | 3000kw | 343L | 500kw | 600 | 2000m | 20m | 700t |
| 32 inch | 7500m3 | 1500m3 | 3500kw | 401L | 500kw | 700 | 2200m | 20m | 750t |
| Water flow 12000m3 | 3600m3 | 1342kwx2 | 307L | 600kw | 900 | 2000m | 18m | 800t | |
| Water flow 15000m3 | 4500m3 | 1641kwx2 | 376L | 760kw | 980 | 2000m | 18m | 900t | |
| Our factory can made all electric power cutter suction dredger and all kinds of dredging machinery |
| Our factory break the traditional manufacture technology . remove the main room to the bridge frame to improve the concentration to add the capacity . we have the most advanced seal technology |
| Our factory adopts the particular design technology can do the large water flow cutter suction dredger and all kinds of dredging machinery . we can do the biggest water flow 30000 cubic meter |
| All parts from famous brand combine the our factory advanced technology can get the best performance |
| 1 | Easily operation . one worker can handle all . |
| 2 | Original Siemens PLC control system . all documents are appeared on the system |
| 3 | Reliable Rexroth hydraulic system . all brand hydraulic system from import we can offer. |
| 4 | All kinds of filter for hydraulic oil and water to get the fresh water and oil for cooling and hydraulic system |
| 5 | Each mainly device are tested individually and then fully test the whole in the testing pool |
| 6 | Short delivery time . Normally hot dredger we have in stock . others normally is 2-4 month |
| 7 | All spare parts our factory always have in stock . |
| 8 | Long after sales service and foreign service can available. |
| 9 | Economical price and high output to ensure the customers cover the cost for the shortest time and get the largest value . |
| 10 | Standard design:The pontoons and main spare parts are connected by the bolts and nuts, which means the dredger can be dismantled in the factory and mounted in the construction sites. Of course, the delivery time will be reduced a lot by containers. |
| 11 | World -class spare parts: We use the best parts like Cummins diesel engine and Siemens PLC controlling system, Shijiazhuang pump.......Also. we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers. |
| 12 | Dredger application The dredgers can be adapted to different circumstance like river and lake. The material like sand, stones. mud.salt can be easily sucked and discharged to the destination place. |
| 1 | Inquiry and consulting support. Our service team all online to guide for every problem |
| 2 | Sample sand dredger testing support. We have testing support for all dredger |
| 3 | View our Factory. Welcome to inspect factory |
| 4 | Training how to install the sand dredger boat, training how to use the sand dredger .training how to repair dredger |
| 5 | Engineers available to service sand dredger boat overseas. When the complex failure we will send the engineer to oversea |
| 6 | After sales team in Nigeria, India, Bangladesh, Colombia etc for 24h sand dredger boat after-sale service |
| 7 | we can offer the all guide service :assemble .repair and free for training the local workers |
| 1 | Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| 2 | Factory has manufacture experience more than 20 years. |
| 3 | More than 50 certificated engineers and technicians. |
| 4 | We have certification and patent more than 50 item. It contains ISO CE etc. |
| 5 | Set Sail dredger is sold more than 80 countries . |
| 6 | We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc. |
