Product Details:
|
| Model NO.: | QHCSD-155 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Dredging Depth: | 20m | Discharge Distance: | 2200m |
| Soild Capacity: | 1400m3 | Load Draft: | 2m |
| Total Length: | 45m | Main Engine Power: | Cummins 3000kw |
| Auxiliary Engieng: | Cummins 1000kw | Pump Water Flow: | 7000m3 |
| Head: | 64m | Discharge Pipe Diameter: | 600mm |
| Total Weight: | 700t | Total Power: | 4000kw |
| Displacement: | 780t | Lifting Winch Pulling Force: | 200kn |
| Swing Winch Pulling Force: | 160kn | Transport Package: | Canvas And Container |
| Specification: | 28 Inch Water Flow 7000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 5000set/Year | Package Size: | 1800.00cm * 820.00cm * 250.00cm |
| Package Gross Weight: | 68000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 100000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Item | Parameter | Remark |
| Dredging depth | 20m | Add undereater pump can reach the 30meter |
| Solid capacity | 1400m3 | According to 20% concentration to count |
| Discharge distance | 2200m | Add the booster station can reach the long distance transportation |
| Load draft | 2m | |
| Total weight | 700t | |
| Toal length | 45m | |
| Total width | 9.8m | |
| Total depth | 3.6m | it means the dimension is from bottom to the deck |
| Bottom plate thickness | 14mm | CCS Standard |
| Front and back plate thickness | 20mm | |
| Side plate thickness | 12mm | |
| Deck plate thickness | 12mm | |

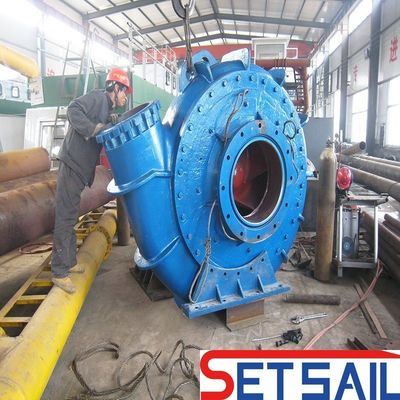

| Pump brand | Shijiazhuang industrial pump factory | According to the customer's request to choose the brand |
| Water flow | 7000m3 | we can do the over 20000m3 cutter suction dredger |
| Head | 64m | |
| Rotate speed | 400r/m | |
| Efficiency | 81.50% | |
| Suction /Discharge pipe diameter | 600mm | Diameter is not changeless according to the anthentic situation to choice . |
| Main engien brand and power | Cummins 3000kw | Can provide CAT .Weichai so on diesel engine brand |
| Rotate speed | 1900r | Rotate speed is adjustable |
| Auxiliary diesle engine and brand | Cummins 1000kw | Can provide CAT .Weichai so on diesel engine brand |
| Driving Pump and hydraulic system gerbox Brand | Hangzhou Fada | |
| Sup diameter *wall thickness | 860mm*25mm | |
| Weight | 700ton | |

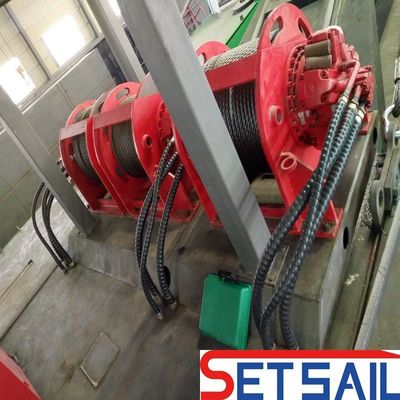

| Lifting winch first layer pull | 200KN | |
| Wire rope diameter | 28mm | |
| Swing winch first layer pull | 160KN | |
| Wire rope diameter | 26mm | |

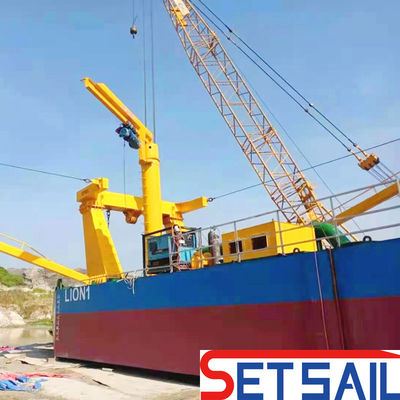

| Anchor boom length | 18m | |
| Spud carriage stroke | 6m-8m | |
| Spund carriage pontoon length | 12m |
| 1 | A wide range of use applications. General used for river. lake .sea .reservoir .and inland waterway so on |
| 2 | Full hydraulic control with Rexroth. Vickers . all brand from the abroad . |
| 3 | Siemens PLC operation with the operation convenience.modular control all data in the one place. |
| 4 | Dredger components available in factories to allow short delivery times . all conponents is tested serious . |
| 5 | Follow manufacture guideline: CCS-ZC standard .all process can reach the international standard. |
| 6 | Western Dredge brand parts. easy to find globally . All the accessories have overseas service points |
| 7 | Optional equipment is available such as Spud carriage, anchor boom. underwater pump so on . |
| 8 | Gain access to our sales team. design team. manufacture team 24/7. help the customers solves failure in time. |
| 9 | The modular design enables fast assembly with seniors engineers . |
| 1 | 30 years' dredger manufacture workmanship. especially large water flow dredger field . |
| 2 | Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger. |
| 3 | Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service . |
| 4 | 6 manufacture shops .R&D center, testing pool. |
| 5 | Large production. ISO 9001 2015 quality system. CE certification so on . |
| 6 | Presences more than 40 countries. |
