Product Details:
|
| Model NO.: | QHCSD-165 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Total Length: | 45m | Main Engine Brand And Power: | Cummins /3000kw |
| Auxiliary Enigne Power: | Cummins /1000kw | Harbour Generator: | Cummins /75GF |
| Dredging Technology: | Warman Technology | Discharge Pipe Diameter: | 600mm |
| Head: | 64m | Max.Dredging Depth: | 20m |
| Water Flow: | 7000m3 | Capacity: | 1400m3/H |
| Discharge Distance: | 2200m | Cutter Head Diameter: | 2200mm |
| Cutter Power: | 500kw | Draught: | 2m |
| Total Fuel Consumption: | 600L/H | Transport Package: | Canvas |
| Specification: | 28 Inch Water Flow 7000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 1000 Sets Per Year | Package Size: | 1800.00cm * 380.00cm * 200.00cm |
| Package Gross Weight: | 36000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 100000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

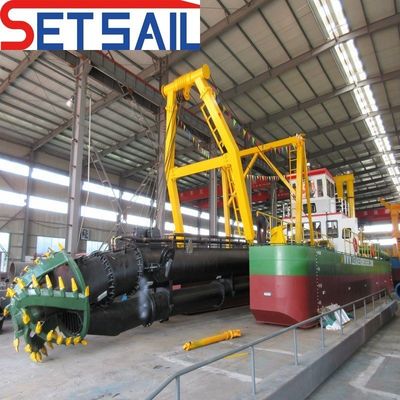

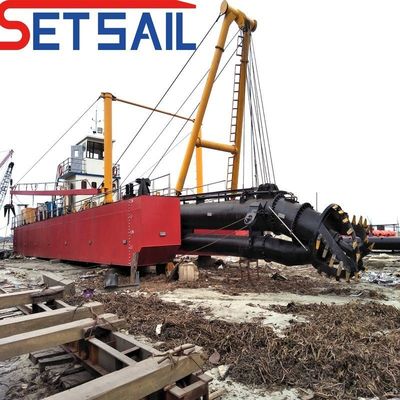

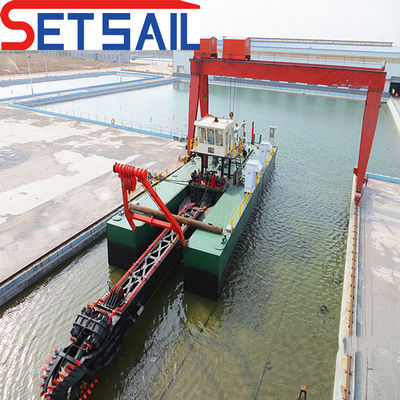

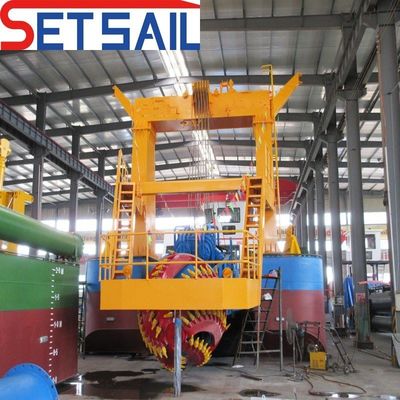

| 28 inch cutter suction dredger is the large cutter suction dredger form our factory .it is widely used in the river .lake .sea . reservoir so on large dredging project . all configuration device from the famous state owned factory and abroad . diesel engine and electric power can avaliable for dredger . hydraulic and Siemens PLC control all dredger .equiped flowmeter .concentration meter and monitor system so on . a lots of optional installation:anchor boom . trolley so on . it is can reach the high capacity and long continue working time and long discharge distance . |
| Setsail dredgers are of modular structure which is convenient for the disassembly and transportation. Other characteristics include reasonable design. easy operation. long duration and running continuity. The dredger can be widely used for maintenance dredging. infrastructure dredging. environmental-friendly dredging and sand mining etc. |
| Total length | 45m |
| Hull size | 38*9.8*3.6m |
| Structure | box structure |
| Main engine brand /power | Cummis/2200kw |
| Auxiliary engine brand /power | Cummins/720kw |
| Harbour generator | 75kw |
| Dredging pump | Warman techenology |
| Discharge pipe diameter | 700mm |
| Head | 64m |
| Max.dredging depth | 17m |
| Water flow | 7000m3 |
| Soild sand capacity | 1400m3 |
| Max. discharge distance | 2200m |
| Cutter head power | 500kw |

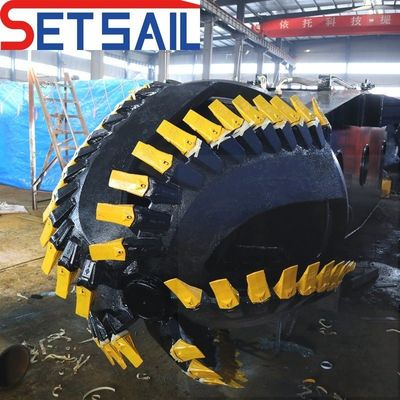

| Cutter head diameter | 2200m |
| Drauft | 2m |
| Displacement | 780ton |

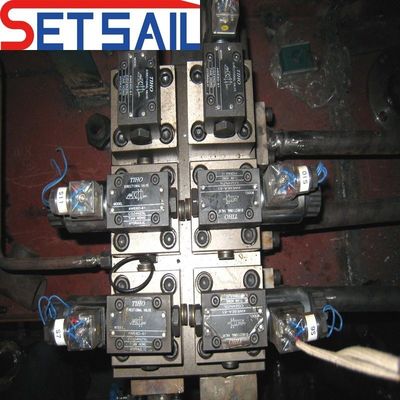

| Hydraulic control system | Siemens PLC |
| Lifting winch pulling force | 200kn |
| Swing winch | 160kn |
| Total weight | 320t |
| Total fuel consumption | 428L/H |
| Model | Sand and solid capacity | Max. dredging depth | Discharge distance |
| QH 200 | 160m3/h | 8m | 800m |
| QH 250 | 200 m3/h | 9m | 1000m |
| QH 300 | 300 m3/h | 10m | 1200m |
| QH 350 | 400 m3/h | 11m | 1500m |
| QH 400 | 500 m3/h | 13m | 1500m |
| QH 450 | 600 m3/h | 14m | 1500m |
| QH 500 | 800 m3/h | 15m | 2000m |
| QH 550 | 900 m3/h | 16m | 2000m |
| QH 600 | 1100 m3/h | 16m | 2000m |
| QH 650 | 1200 m3/h | 16m | 2100m |
| QH 700 | 1400 m3/h | 17m | 2200m |
| QH 800 | 1500 m3/h | 17m | 2500m |
| QH 300D | 500 m3/h | 16m | 1500m |
| QH 400D | 825 m3/h | 22m | 1500m |
| QH 500D | 1000 m3/h | 25m | 2000m |
| QH 600D | 1800 m3/h | 25m | 2000m |
| QH 700D | 2250 m3/h | 28m | 2500m |
| QH 800D | 2400 m3/h | 30m | 2500m |
5. Detailed introduce : 6.Factory shows : 7. Contact information : Contact Person: Mr. Liu
