Product Details:
|
| Model NO.: | QHCSD-188 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Total Length: | 50m | Main Engine Brand And Power: | Cummins /3000kw |
| Auxiliary Enigne Power: | Cummins /720kw | Harbour Generator: | Cummins /103kw |
| Dredging Technology: | Warma Technology | Discharge Pipe Diameter: | 800mm |
| Head: | 66m | Max.Dredging Depth: | 17m |
| Water Flow: | 7500m3 | Capacity: | 1500m3/H |

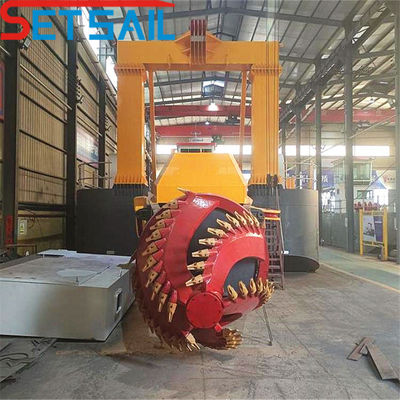

| Discharge Distance: | 2500m | Cutter Head Diameter: | 2350mm |
| Cutter Power: | 500kw | Draught: | 2.7m |
| Total Fuel Consumption: | 518L/H | Transport Package: | Canvas |
| Specification: | 32 Inch Water Flow 6000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 1000 Sets Per Year | Package Size: | 4600.00cm * 1002.00cm * 270.00cm |
| Package Gross Weight: | 360000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 50000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

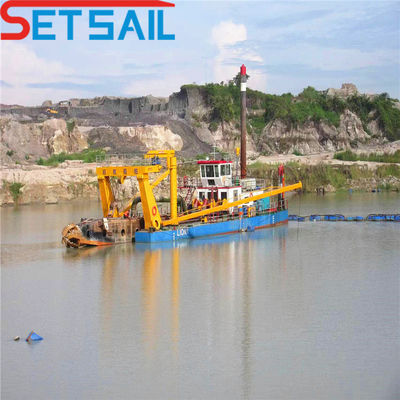

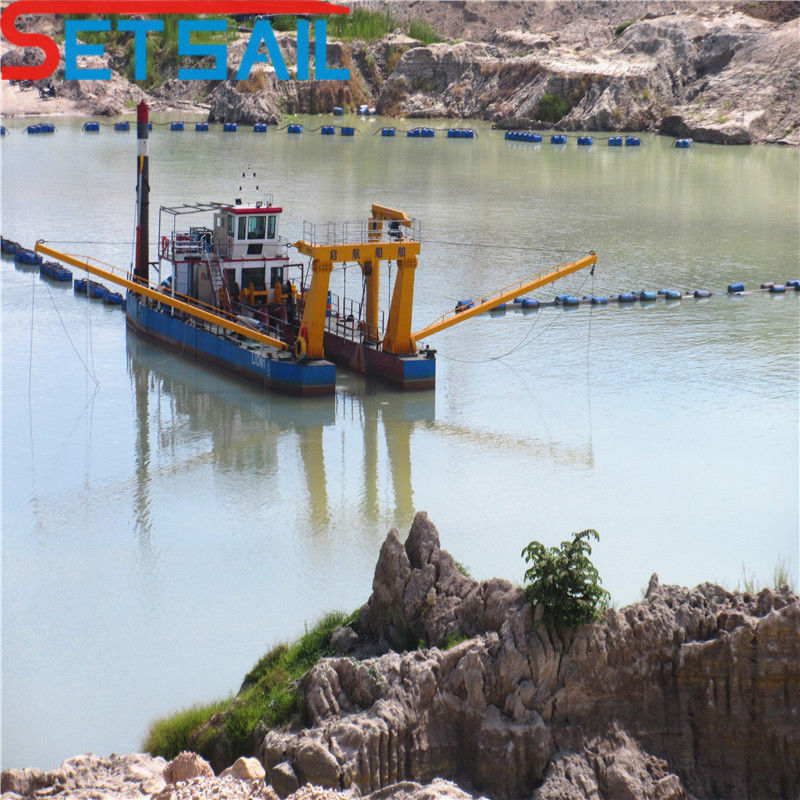

| 32 inch cutter suction dredger is the large cutter suction dredger form our factory .it is widely used in the river .lake .sea . reservoir so on large dredging project . all configuration device from the famous state owned factory and abroad . diesel engine and electric power can avaliable for dredger . hydraulic and Siemens PLC control all dredger .equiped flowmeter .concentration meter and monitor system so on . a lots of optional installation:anchor boom . trolley so on . it is can reach the high capacity and long continue working time and long discharge distance . |
| Setsail dredgers are of modular structure which is convenient for the disassembly and transportation. Other characteristics include reasonable design. easy operation. long duration and running continuity. The dredger can be widely used for maintenance dredging. infrastructure dredging. environmental-friendly dredging and sand mining etc. |
| Total length | 50m |
| Hull size | 46*12.1*3.8m |
| Structure | box structure |
| Main engine brand /power | Cummis/3000kw |
| Auxiliary engine brand /power | Cummins/720kw |
| Harbour generator | 103kw |
| Dredging pump | Warma techenology |
| Discharge pipe diameter | 800mm |
| Head | 63m |
| Max.dredging depth | 17m |
| Water flow | 7500m3 |
| Soild sand capacity | 1500m3 |
| Max. discharge distance | 2500m |
| Cutter head power | 500kw |
| Cutter head diameter | 2350m |
| Drauft | 2.7m |
| Displacement | 1100ton |
| Hydraulic control system | Siemens PLC |
| Lifting winch pulling force | 280kn |
| Swing winch | 200kn |
| Total weight | 510t |
| Total fuel consumption | 518L/H |
| Model | Sand and solid capacity | Max. dredging depth | Discharge distance |
| QH 200 | 160m3/h | 8m | 800m |
| QH 250 | 200 m3/h | 9m | 1000m |
| QH 300 | 300 m3/h | 10m | 1200m |
| QH 350 | 400 m3/h | 11m | 1500m |
| QH 400 | 500 m3/h | 13m | 1500m |
| QH 450 | 600 m3/h | 14m | 1500m |
| QH 500 | 800 m3/h | 15m | 2000m |
| QH 550 | 900 m3/h | 16m | 2000m |
| QH 600 | 1100 m3/h | 16m | 2000m |
| QH 650 | 1200 m3/h | 16m | 2100m |
| QH 700 | 1400 m3/h | 17m | 2200m |
| QH 800 | 1500 m3/h | 17m | 2500m |
| QH 300D | 500 m3/h | 16m | 1500m |
| QH 400D | 825 m3/h | 22m | 1500m |
| QH 500D | 1000 m3/h | 25m | 2000m |
| QH 600D | 1800 m3/h | 25m | 2000m |
| QH 700D | 2250 m3/h | 28m | 2500m |
| QH 800D | 2400 m3/h | 30m | 2500m |
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.

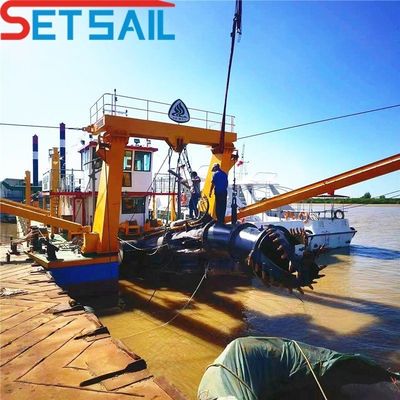

Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
6.Factory shows : | Company profile : Set Sail Dredging Equipment Machinery Co., Ltd .was established in 1992. Over the 20 years development . factory covers area of 1500 acres with more than 200 employees .our mainly product : all kids of cutter suction dredger jet suction dredger chain bucket sand and gold dredger electrical cutter suction dredger trailing suction dredger sand transportation boat multi-function service boat etc. We can according to the requirements to customized the all products. |
| Company products introduce: Our certification: our factory has ISO 9001 Quality system and CE certification system the design construction is according to the standards of CCS. We can assist our customers to get the special certification of suitable for local. |
| Company business customers introduce : Our product are exported more than 50 country such as Bangladesh Malaysia Nigeria Indonesia Philippines Congo etc. Our product is sold all parts of world our factory provide the high quality an service for the wold customers. |
