Product Details:
|
| Model NO.: | QHCSD-294 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Hull Size: | 35*10.2*2.7m | Output Pipe Diameter: | 800mm |
| Maximum Dredging Depth: | 18m | Water Flow: | 9000m3 |
| Capacity: | 1350m3-1800m3 | Maximum Discharge Distance: | 1500m |
| Cutter Head Diameter: | 2400mm | Cutter Power: | 450kw |
| Total Weight: | 380ton | Main Engine Power: | 2427kw |
| Auxiliary Engine Power: | 736kw | Diesel Engine Brand: | Cummin |
| Total Fuel Consumption: | 547L | Hydraulic Control System: | Rexroth /Ward |
| Electric System: | PLC And ABB | Transport Package: | Canvas |
| Specification: | 32inch Water Flow 9000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 1000 Sets Per Year | Package Size: | 4600.00cm * 1002.00cm * 270.00cm |
| Package Gross Weight: | 447000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 3000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd .our factory is one of China leading company of sand & gold& diamond mining equipments. has more than 25 years' experience in designing.producing.selling cutter suction dredger. jet suction dredger. bucket chain dredger. diamond/gold dredgers. sand washing plant. gold washing plant. sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Afrrica.South America.Middle Easr and other regions. |

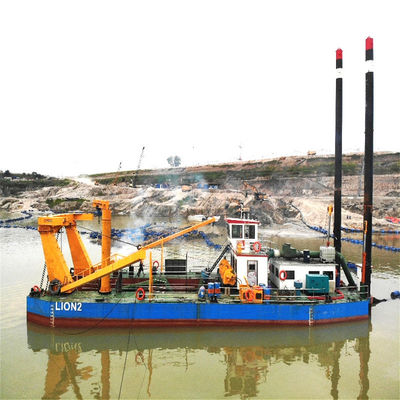

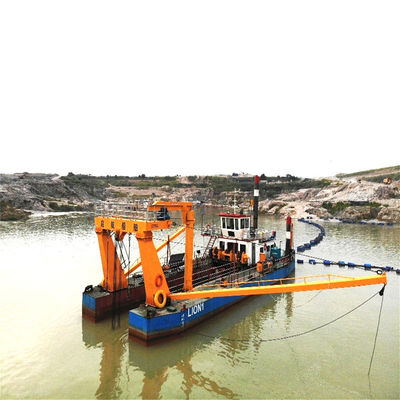

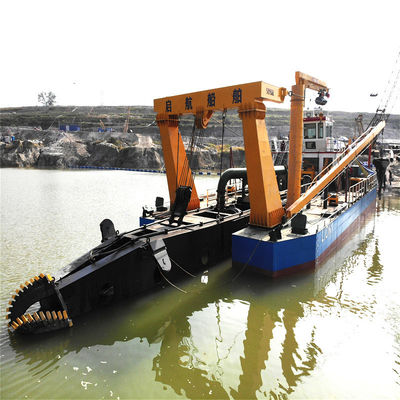

| Cutter Suction Dredgers are of the highest possible quality. ensuring a long lifetime with a minimum of maintenance. The maxmum capacity of 32 inch dredger can reach to from 1800-2700 m3 water flow can go up to 9000 m³/h, and digging depth to 1-25 meters, discharge distance to 200-3000 meters. |
| Total length | 46m |
| Hull size | 35*10.2*2.7m |
| Discharge pipe diameter | 800mm |
| Water flow | 9000m3/h |
| solid capacity | 1350m3-1800m3 |
| Discharge distance | 1500m |
| Cutter head diameter | 2400mm |
| Cutter head power | 450kw |
| Draught | 1.6m |
| Displacement | 477ton |
| Total weight | 380ton |
| Main engine power | Cumins 2427kw |
| Auxiliary engine power | Cumins 736kw |
| Total fuel consumption | 547 litre |
| Hydraulic control system | Rexroth |
| Electric control system | Siemens PLC |
| 1 | Relable and high efficiency-improtant device is international brand |
| 2 | After sales service -engineer in the working site for installation and training ,24/7 technical support . |
| 3 | Provide free spare part for a year. then cost to offer service and spare part |
| 4 | Can dismantled and easy transportation |
| 1 | Reliable and efficiency: The key component like the diesel engine slurry pump and hydraulic control system adopts international brand. |
| 2 | Tested in the pool delivery before :Quality testing for each dredger delivery before to insure all the function working smoothly. |
| 3 | Service:Experienced engineers to guide the installation and training the local workers . Engineers can offer support all time . |
| 4 | Installation and transportation:Dismantle structure is easily for installation and transportation . |
| 5 | Great Adaptability. The cutter suction dredgers can be widely used in river, lake, sea, reservoir and so on for sand/mud dredging, waterway cleaning and reclamaition work. |
| 6 | Easy Operation. With hydraulic system and PLC control system, all the dredgers operation can be done in the operation cabin. |
| 7 | Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system. |
| 8 | Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves. |

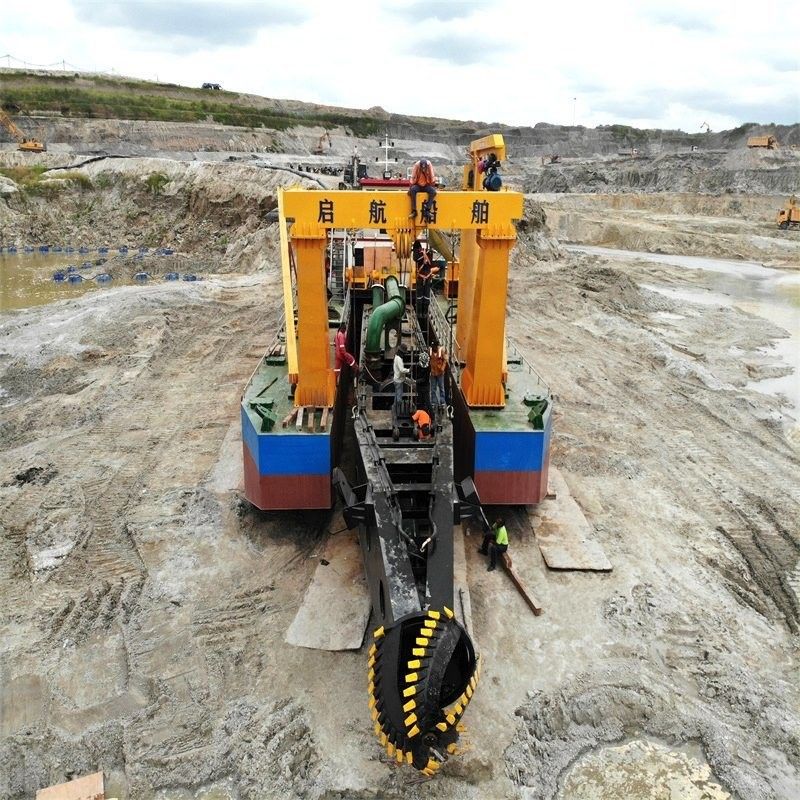

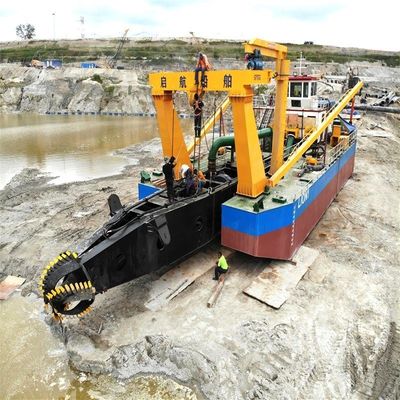

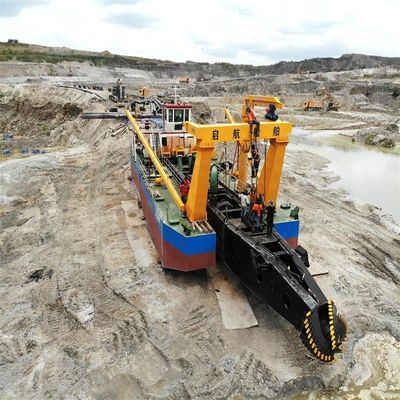

| 9 | The dredgers are dismountable. So they can be disassembled and assembled easily. Thus it is convenient for the transportation by road, rail or water. |
| 10 | Professional engineers will be sent to the project site to insist the customers on the installation, commissioning, testing of the dredgers and training of operators. |
| *Our factory can offer the long time after -sale service and free spare parts for customers |
| *Our factory can offer the experienced installation team for installation and training the local workers |
| *we can according to the request of customers to choose the reasonable and practical device |
| *we can provide the professional and quick solution for any problem |
| *we have the professional technician regularly to follow up customers |
| *we can sign all kinds of agreement to ensure the customers right |
