Product Details:
|
| Model NO.: | QHCSD-295 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Hull Size: | 35*10.2*2.7m | Output Pipe Diameter: | 800mm |
| Maximum Dredging Depth: | 18m | Water Flow: | 9000m3 |
| Capacity: | 1350m3-1800m3 | Maximum Discharge Distance: | 1500m |
| Cutter Head Diameter: | 2400mm | Cutter Power: | 450kw |
| Total Weight: | 380ton | Main Engine Power: | 2427kw |
| Auxiliary Engine Power: | 736kw | Diesel Engine Brand: | Cumins |
| Total Fuel Consumption: | 547L | Hydraulic Control System: | Rexroth /Ward |
| Electric System: | PLC And ABB | Transport Package: | Canvas |
| Specification: | 32inch Water Flow 9000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 1000 Sets Per Year | Package Size: | 4600.00cm * 1002.00cm * 270.00cm |
| Package Gross Weight: | 447000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 3000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd .our factory is one of China leading company of sand & gold& diamond mining equipments. has more than 25 years' experience in designing.producing.selling cutter suction dredger. jet suction dredger. bucket chain dredger. diamond/gold dredgers. sand washing plant. gold washing plant. sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Afrrica.South America.Middle Easr and other regions. As for more information about our company and products,Please serach https://dredgerfactory.en.made-in-china.com |

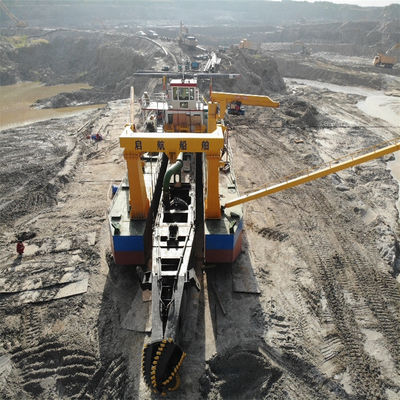

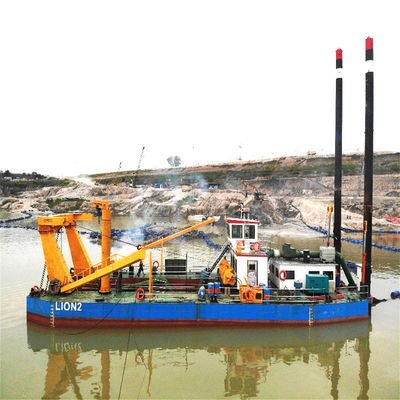

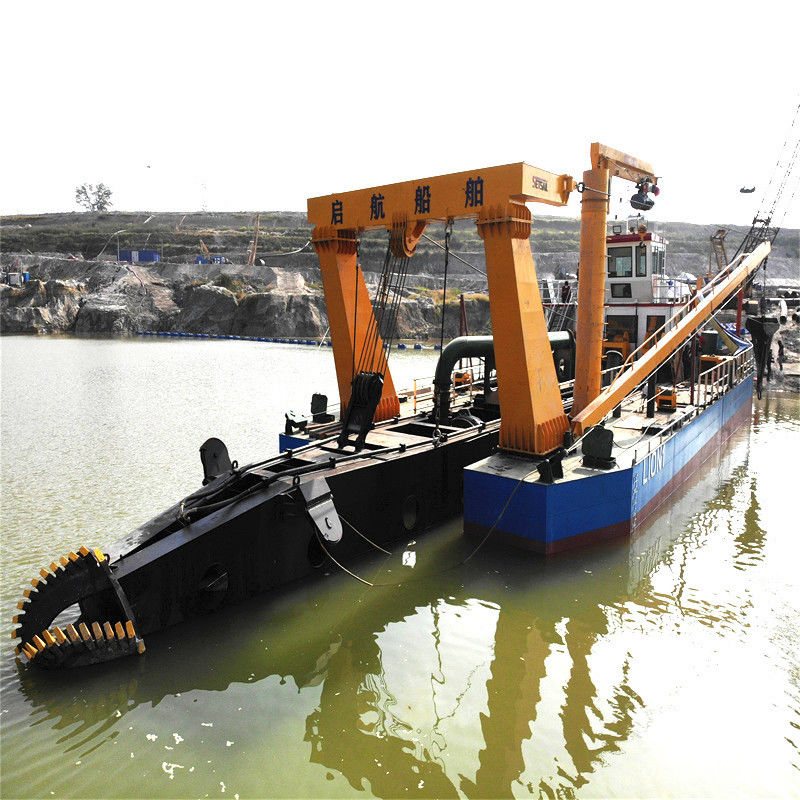

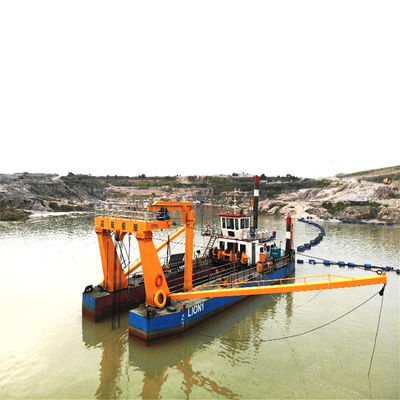

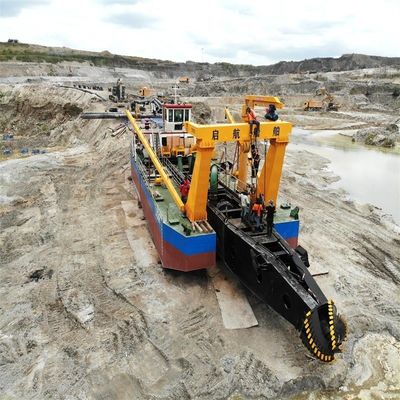

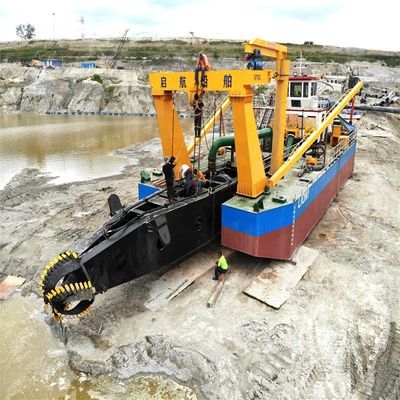

| Cutter Suction Dredgers are of the highest possible quality. ensuring a long lifetime with a minimum of maintenance. The maxmum capacity of 32 inch dredger can reach to from 1800-2700 m3 water flow can go up to 9000 m³/h, and digging depth to 1-25 meters, discharge distance to 200-3000 meters. |
| Total length | 46m |
| Hull size | 35*10.2*2.7m |
| Discharge pipe diameter | 800mm |
| Water flow | 9000m3/h |
| solid capacity | 1350m3-1800m3 |
| Discharge distance | 1500m |
| Cutter head diameter | 2400mm |
| Cutter head power | 450kw |
| Draught | 1.6m |
| Displacement | 477ton |
| Total weight | 380ton |
| Main engine power | Cumins 2427kw |
| Auxiliary engine power | Cumins 736kw |
| Total fuel consumption | 547 litre |
| Hydraulic control system | Rexroth |
| Electric control system | Siemens PLC |
| 1 | Relable and high efficiency-improtant device is international brand |
| 2 | After sales service -engineer in the working site for installation and training ,24/7 technical support . |
| 3 | Provide free spare part for a year. then cost to offer service and spare part |
| 4 | Can dismantled and easy transportation |
| 1 | Wide range of use applications |
| 2 | High efficiency. large output. long pump distance.low fuel consumption |
| 3 | Rexroth. Vickers full hydraulic control |
| 4 | Siemens PLC is easy to operate |
| 5 | Engine choice from Weichai. Cumins. and more. |
| 6 | Equipped with Australian technology dredge pump |
| 7 | The modular design enables fast assembly with HID seniors engineers |
| 8 | Dredger components available in factories to allow short delivery times |
| 9 | Control the working process of dredging and pumping. delivering dredged materials. lower cost. |
| 10 | Follow manufacture guideline: CCS-ZC standard |
| 11 | CE ISO certificates acquired to prove high quality |
| 12 | Western Dredge brand parts. easy to find globally |
| 13 | Can choose reliable Chinese brand parts to lower costs |
| 14 | Gain access to our sales team. design team, manufacture team 24/7 |
|
| 2. How is your price of cutter suction dredger ? First we can offer the precise and professional design. Price must be match the quality |
| 3. How is your manufacture period ? Normal we have in stock on hot sale cutter suction dredger size . others we can finished in the 1-3 hours |
| 4. How is your grouped equipment on your cutter suction dredger ? Abroad Famous brand diesel engine brand slurry pump PLC system Hydraulic control system brand etc on our cutter suction dredger we can according to the requirement of customer to customized |
| 5.How is your packaging and transportation ? All cutter suction dredger transport by bulk we use the specially protection material to packaging. The fist layer use the film to pack the main pontoon the other equipment pack into the pontoon each the equipment is separated by the vacuum bag to protect the undamaged. |
| 6. How is your payment system? Our factory support T/T L/C etc. |
| 7. How is your service? Before sign contract we can send the engineer to the working site the research . then according to the requirements to make the design . professional engineer track throughout Cutter suction dredger is finished our factory will send the installation team to the abroad To help installation and training local worker .until cutter suction dredger can normal working |
