Product Details:
|
| Model NO.: | QHCSD-296 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Hull Size: | 35*10.2*2.7m | Output Pipe Diameter: | 800mm |
| Maximum Dredging Depth: | 18m | Water Flow: | 9000m3 |
| Capacity: | 1350m3-1800m3 | Maximum Discharge Distance: | 1500m |
| Cutter Head Diameter: | 2400mm | Cutter Power: | 450kw |
| Total Weight: | 380ton | Main Engine Power: | 2427kw |
| Auxiliary Engine Power: | 736kw | Diesel Engine Brand: | Cumins |
| Total Fuel Consumption: | 547L | Hydraulic Control System: | Rexroth /Ward |
| Electric System: | PLC And ABB | Transport Package: | Canvas |
| Specification: | 32inch Water Flow 9000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 1000 Sets Per Year | Package Size: | 4600.00cm * 1002.00cm * 270.00cm |
| Package Gross Weight: | 360000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 3000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd .our factory is one of China leading company of sand & gold& diamond mining equipments. has more than 25 years' experience in designing.producing.selling cutter suction dredger. jet suction dredger. bucket chain dredger. diamond/gold dredgers. sand washing plant. gold washing plant. sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Afrrica.South America.Middle Easr and other regions. As for more information about our company and products,Please serach https://dredgerfactory.en.made-in-china.com |

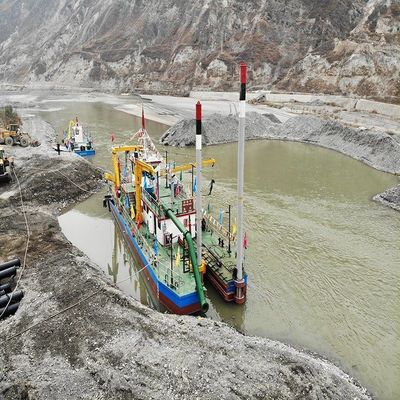

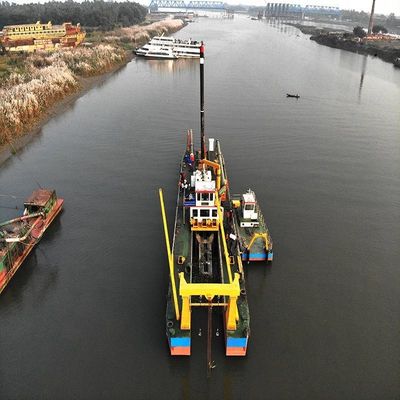

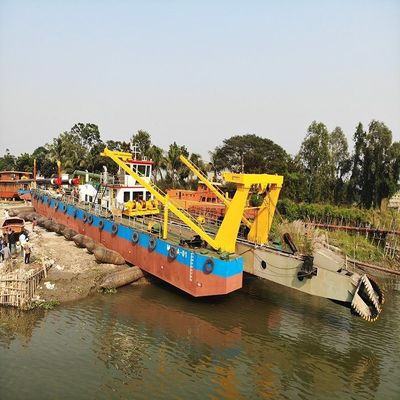

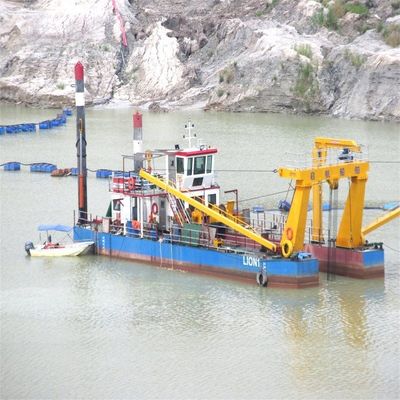

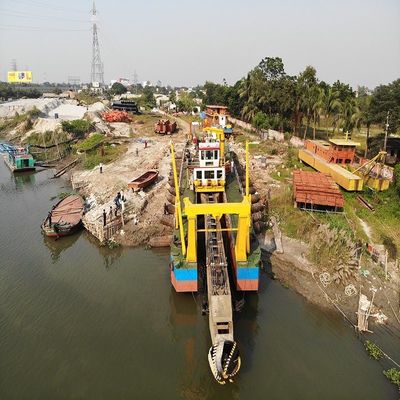

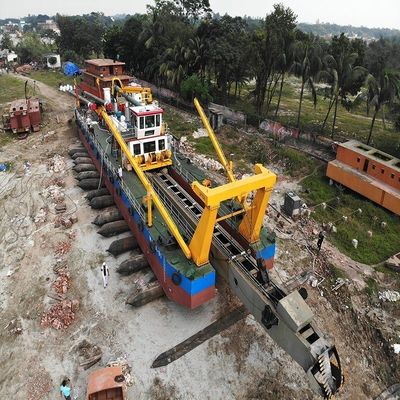

| Cutter Suction Dredgers are of the highest possible quality. ensuring a long lifetime with a minimum of maintenance. The maxmum capacity of 32 inch dredger can reach to from 1800-2700 m3 water flow can go up to 9000 m³/h, and digging depth to 1-25 meters, discharge distance to 200-3000 meters. The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China. The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China. The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear , and hooks at the bottom. Further salient features of the dredger are the dredger is powered by a Marine engine. the main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments such as cutter, swing and ladder winches, and the spud rams etc. The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts. The hull steel plate used is CCSB (shipbuilding steel plate ) . |
| Total length | 46m |
| Hull size | 35*10.2*2.7m |
| Discharge pipe diameter | 800mm |
| Water flow | 9000m3/h |
| solid capacity | 1350m3-1800m3 |
| Discharge distance | 1500m |
| Cutter head diameter | 2400mm |
| Cutter head power | 450kw |
| Draught | 1.6m |
| Displacement | 477ton |
| Total weight | 380ton |
| Main engine power | Cumins 2427kw |
| Auxiliary engine power | Cumins 736kw |
| Total fuel consumption | 547 litre |
| Hydraulic control system | Rexroth |
| Electric control system | Siemens PLC |
| 1 | Relable and high efficiency-improtant device is international brand |
| 2 | After sales service -engineer in the working site for installation and training ,24/7 technical support . |
| 3 | Provide free spare part for a year. then cost to offer service and spare part |
| 4 | Can dismantled and easy transportation |
