Product Details:
|
| Model NO.: | QHCSD-298 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Hull Size: | 35*10.2*2.7m | Output Pipe Diameter: | 800mm |
| Maximum Dredging Depth: | 18m | Water Flow: | 9000m3 |
| Capacity: | 1350m3-1800m3 | Maximum Discharge Distance: | 1500m |
| Cutter Head Diameter: | 2400mm | Cutter Power: | 450kw |
| Total Weight: | 380ton | Main Engine Power: | 2427kw |
| Auxiliary Engine Power: | 736kw | Diesel Engine Brand: | Cumins |
| Total Fuel Consumption: | 547L | Hydraulic Control System: | Rexroth /Ward |
| Electric System: | PLC And ABB | Transport Package: | Canvas |
| Specification: | 32inch Water Flow 9000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 1000 Sets Per Year | Package Size: | 4600.00cm * 1002.00cm * 270.00cm |
| Package Gross Weight: | 360000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 3000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd .our factory is one of China leading company of sand & gold& diamond mining equipments. has more than 25 years' experience in designing.producing.selling cutter suction dredger. jet suction dredger. bucket chain dredger. diamond/gold dredgers. sand washing plant. gold washing plant. sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Afrrica.South America.Middle Easr and other regions. As for more information about our company and products,Please serach https://dredgerfactory.en.made-in-china.com |
| Cutter Suction Dredgers are of the highest possible quality. ensuring a long lifetime with a minimum of maintenance. The maxmum capacity of 32 inch dredger can reach to from 1800-2700 m3 water flow can go up to 9000 m³/h, and digging depth to 1-25 meters, discharge distance to 200-3000 meters. |
| Total length | 46m |
| Hull size | 35*10.2*2.7m |
| Discharge pipe diameter | 800mm |
| Water flow | 9000m3/h |
| solid capacity | 1350m3-1800m3 |
| Discharge distance | 1500m |
| Cutter head diameter | 2400mm |
| Cutter head power | 450kw |
| Draught | 1.6m |
| Displacement | 477ton |
| Total weight | 380ton |
| Main engine power | Cumins 2427kw |
| Auxiliary engine power | Cumins 736kw |
| Total fuel consumption | 547 litre |
| Hydraulic control system | Rexroth |
| Electric control system | Siemens PLC |
| 1 | Relable and high efficiency-improtant device is international brand |
| 2 | After sales service -engineer in the working site for installation and training ,24/7 technical support . |
| 3 | Provide free spare part for a year. then cost to offer service and spare part |
| 4 | Can dismantled and easy transportation |
Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.

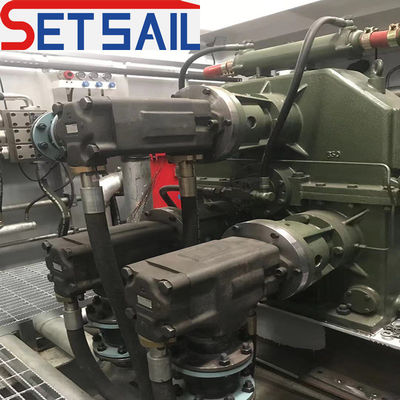

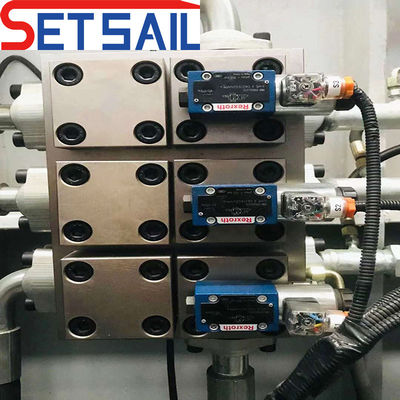

Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
5.our service :| Company profile : Set Sail Dredging Equipment Machinery Co., Ltd .was established in 1992. Over the 20 years development . factory covers area of 1500 acres with more than 200 employees .our mainly product : all kids of cutter suction dredger jet suction dredger chain bucket sand and gold dredger electrical cutter suction dredger trailing suction dredger sand transportation boat multi-function service boat etc. We can according to the requirements to customized the all products. |
| Company products introduce: Our certification: our factory has ISO 9001 Quality system and CE certification system the design construction is according to the standards of CCS. We can assist our customers to get the special certification of suitable for local. |
| Company business customers introduce : Our product are exported more than 50 country such as Bangladesh Malaysia Nigeria Indonesia Philippines Congo etc. Our product is sold all parts of world our factory provide the high quality an service for the wold customers. |
