Product Details:
|
| Model NO.: | QHCSD-307 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2year | After-sales Service: | Lifelong |
| Power: | Cummins Diesel Engine | Hydraulic System: | Rexroth |
| Water Flow: | 7000 Cubic Meter | Capacity: | 1400 M3 |
| Dredging Depth: | 18m | Discharge Distance: | 1500m |
| Total Length: | 46m | Discharge Pipe Diameter: | 700mm |
| Cutter Head Diameter: | 2400mm | Draught: | 1.5m |
| Displacement: | 447t | Total Weight: | 360t |
| Main Engine Power: | 1838kw | Auxiliary Engine Power: | 736kw |
| Total Fuel Consmption: | 445L | Transport Package: | Canvas |
| Specification: | 28 Inch Water Flow 7000m3 | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 8905100000 |
| Supply Ability: | 10000 Sets Per Year | Package Size: | 3900.00cm * 750.00cm * 200.00cm |
| Package Gross Weight: | 360000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 10000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Total length | 46m |
| Hull size | 35*10.2*2.7m |
| Discharge pipe diameter | 700mm |
| Water flow | 7000m3/h |
| solid capacity | 1050m3-1400m3 |
| Discharge distance | 1500m |
| Cutter head diameter | 2400mm |
| Cutter head power | 450kw |
| Draught | 1.5m |
| Displacement | 447ton |
| Total weight | 360ton |
| Main engine power | Cummins 2427kw |
| Auxiliary engine power | Cummins 736kw |
| Total fuel consumption | 547 litre |

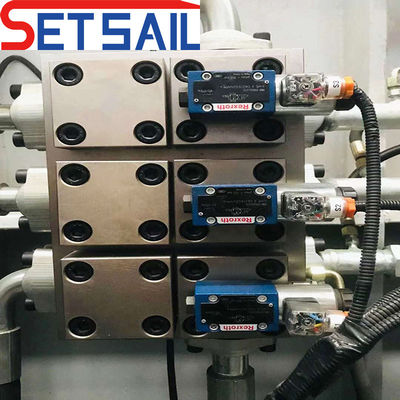

| Hydraulic control system | Rexroth |
| Electric control system | Siemens PLC |
| Our factory can made all electric power cutter suction dredger and all kinds of dredging machinery |
| Our factory break the traditional manufacture technology . remove the main room to the bridge frame to improve the concentration to add the capacity . we have the advanced seal technology |
| Our factory adopts the particular design technology can do the large water flow cutter suction dredger and all kinds of dredging machinery . we can do the biggest water flow 30000 cubic meter |
| All parts from famous brand combine the our factory advanced technology can get the best performance |
| ★ Modular design: The pontoons and main spare parts are connected by the bolts and nuts. which means the dredger can be dismantled in the factory and mounted in the construction sites. Of course. the delivery time will be reduced a lot by containers. |
| ★ World -class spare parts: We use the best parts like Cummins disel engine and Simmens PLC controlling system. Shijiazhuang pump.......Also. we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers. |
| ★ Flexible in use: The dredgers can be adapted to different circumstance like river and lake. The material like sand. stones. mud. salt can be easily sucked and discharged to the destination place. |
Set Sail Dredging Equipment Machinery Co., Ltd is one of the leader manufacture dredging equipment in china .our factory covers over 40000 square meter more than 200 employees in factory. Our factory has experience more than 20 years complete research development production design testing assemble after sales service department so on . let our customers do not worry anything Set sail expect cooperation with the worldwide customers to create the bright tomorrow |
