Product Details:
|
| Model NO.: | QHCSD-333 | Slot Type: | CTN |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Diesel Engine Brand: | Cumins . Weichai | Hydraulic System Brand: | Rexroth |
| PLC System Brand: | Siemens | Water Flow: | 6000 Cubic Meter |
| Capacity: | 900-1200 Cubic Meter | Maximum Dredging Depth: | 20 Meter |
| Maximum Discharge Distance: | 2000 Meter | Total Length: | 39 Meter |
| Hull Size: | 28*8.8*2.25 Meter | Discharge Pipe Inner Diameter: | 600mm |

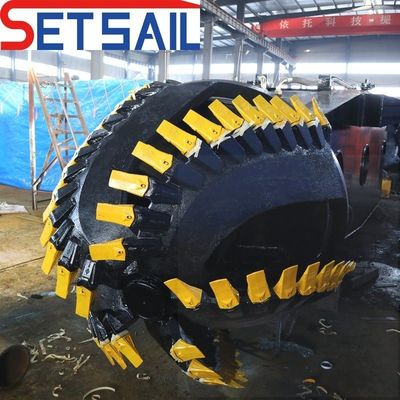

| Cutter Head Diameter: | 2000mm | Cutter Head Power: | 260kw |
| Main Engine Power: | 1620 Kw | Auxiliary Engine Power: | 405 Kw |
| Total Fule Consumption: | 350L | Transport Package: | Canvas And Container |
| Specification: | 26 Inch Cutter Suction Dredger | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 5000set/Year | Package Size: | 3900.00cm * 860.00cm * 225.00cm |
| Package Gross Weight: | 230000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 4000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Technical Specification
| Item Name | Descriptions /Specifications |
| Clear water flow per hour | 5000 cubic meter |
| Production Capacity (solid) | 750-1000 cbm/hr for medium sand at a distance of 2000 m. |
| Slurry concentration, % | Min 15%, Max 20% |
| Discharge distance (max) | Max 2000 m |
| Dredging depth at 45 degree 45 | 15 m |
| Min. dredging depth | 1.4m |
| Inner Diameter of suction pipe | 700mm |
| Inner Diameter of discharge pipe | 600mm |
| Average Draught | 1.25m |
| Maximum draught | 1.5m |
| Total weight | 230Ton |
| Main engine power | 1620kw |
| Auxiliary engine power | 405kw |
| Total installed power | 2025KW |
| Fuel tank capacity | 60Ton |
| Delivery time | 100days |
The impeller is fitted on the shaft by trapezoid thread directly machine on the shaft end. The shaft sealing is a water cooled sealing that can be replaced after wear life. The impeller is a special type of double curved vanes high efficiency and wear life optimized tested in laboratory and onboard of dredgers. The impeller is fixed on the shaft by trapezoid thread machined directly in the impeller hub.
The pump casing has a shape of a volute designed of a high efficiency and wear life optimized tested in laboratory and onboard of dredgers. The pump liners are made of high wear resistant materials and thick wall thickness to maximize the wear life. The casting covers are made from fabricated steel stiffened where necessary and machining to fit the case and the liners.
| 1 | Design the dredger based on the customer's detailed requirements such as : clear water flow per hour. dredge depth. discharge distance and engine brand we can support WeichaiCumins and others. |
| 2 | supply one year's guarantee for the whole dredger except the wear spare parts. |
| 3 | supply after-sales installation. trial operation. training the operators. maintence and other services. |
| 4 | we can offer the lifetime cost price accessories and technical support |
| Qingzhou Qihang Dredging Machinery Equipment Co., Ltd , is one of China leading company of sand & gold& diamond mining equipments. which has more than 20 years' experience in producing cutter suction dredgers.jet suction dredgers.bucket chain dredger. diamond/gold dredgers. sand washing plant. dry land gold washing plant, sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Africa.South America.Middle East and other regions. |
