Product Details:
|
| Model NO.: | QHCSD-336 | Slot Type: | CTN |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Diesel Engine Brand: | Cummins . Weichai | Hydraulic System Brand: | Rexroth |
| PLC System Brand: | Siemens | Water Flow: | 6000 Cubic Meter |
| Capacity: | 900-1200 Cubic Meter | Maximum Dredging Depth: | 20 Meter |
| Maximum Discharge Distance: | 2000 Meter | Total Length: | 39 Meter |
| Hull Size: | 28*8.8*2.25 Meter | Discharge Pipe Inner Diameter: | 600mm |

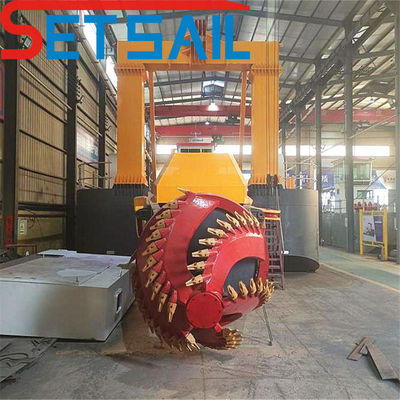

| Cutter Head Diameter: | 2000mm | Cutter Head Power: | 260kw |
| Main Engine Power: | 1620 Kw | Auxiliary Engine Power: | 405 Kw |
| Total Fule Consumption: | 350L | Transport Package: | Canvas And Container |
| Specification: | 26 Inch Cutter Suction Dredger | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 5000set/Year | Package Size: | 1800.00cm * 380.00cm * 250.00cm |
| Package Gross Weight: | 68000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 4000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
Technical Specification
| Item Name | Descriptions /Specifications |
| Clear water flow per hour | 5000 cubic meter |
| Production Capacity (solid) | 750-1000 cbm/hr for medium sand at a distance of 2000 m. |
| Slurry concentration, % | Min 15%, Max 20% |
| Discharge distance (max) | Max 2000 m |
| Dredging depth at 45 degree 45 | 15 m |
| Min. dredging depth | 1.4m |
| Inner Diameter of suction pipe | 700mm |
| Inner Diameter of discharge pipe | 600mm |
| Average Draught | 1.25m |
| Maximum draught | 1.5m |
| Total weight | 230Ton |
| Main engine power | 1620kw |
| Auxiliary engine power | 405kw |
| Total installed power | 2025KW |
| Fuel tank capacity | 60Ton |
| Delivery time | 100days |
| 1 | Design the dredger based on the customer's detailed requirements such as : clear water flow per hour. dredge depth. discharge distance and engine brand we can support WeichaiCummins and others. |
| 2 | supply one year's guarantee for the whole dredger except the wear spare parts. |
| 3 | supply after-sales installation. trial operation. training the operators. maintence and other services. |
| 4 | we can offer the lifetime cost price accessories and technical support |
| Qingzhou Qihang Dredging Machinery Equipment Co., Ltd , is one of China leading company of sand & gold& diamond mining equipments. which has more than 20 years' experience in producing cutter suction dredgers.jet suction dredgers.bucket chain dredger. diamond/gold dredgers. sand washing plant. dry land gold washing plant, sand washing & screening machinery. sand transport barge.work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa.Africa.South America.Middle East and other regions. |
| 1 | Reliable and efficiency: The key component like the diesel engine slurry pump and hydraulic control system adopts international brand. |
| 2 | Tested in the pool delivery before :Quality testing for each dredger delivery before to insure all the function working smoothly. |
| 3 | Service:Experienced engineers to guide the installation and training the local workers . Engineers can offer support all time . |
| 4 | Installation and transportation:Dismantle structure is easily for installation and transportation . |
