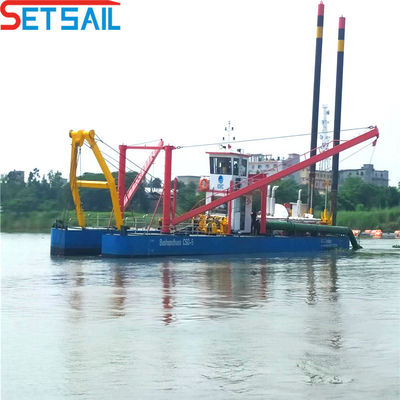

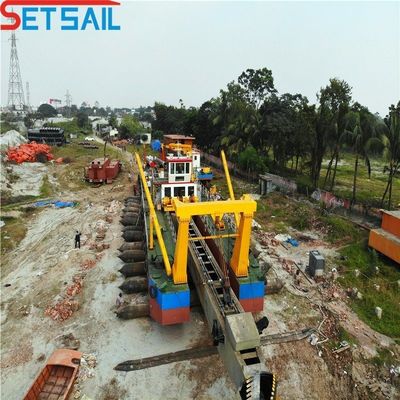

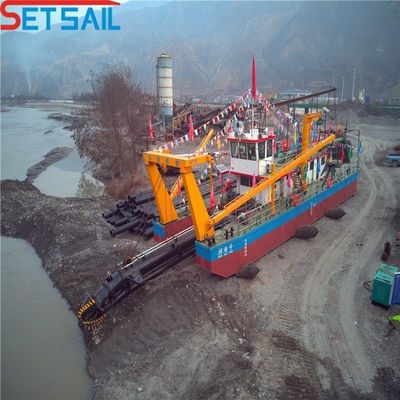

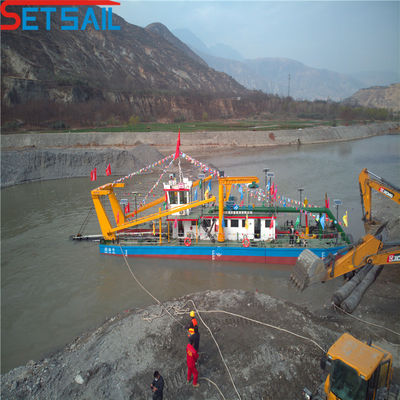

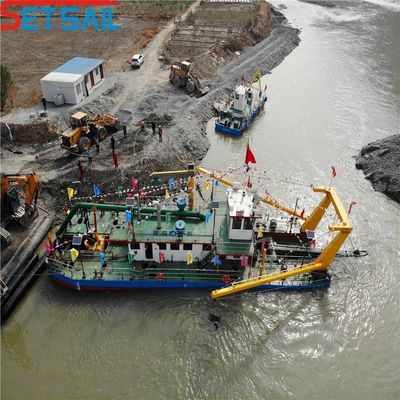

Weichai Diesel Engine 26 Inch Cutter Suction Dredger Maximum Dredging Depth 20 Meter

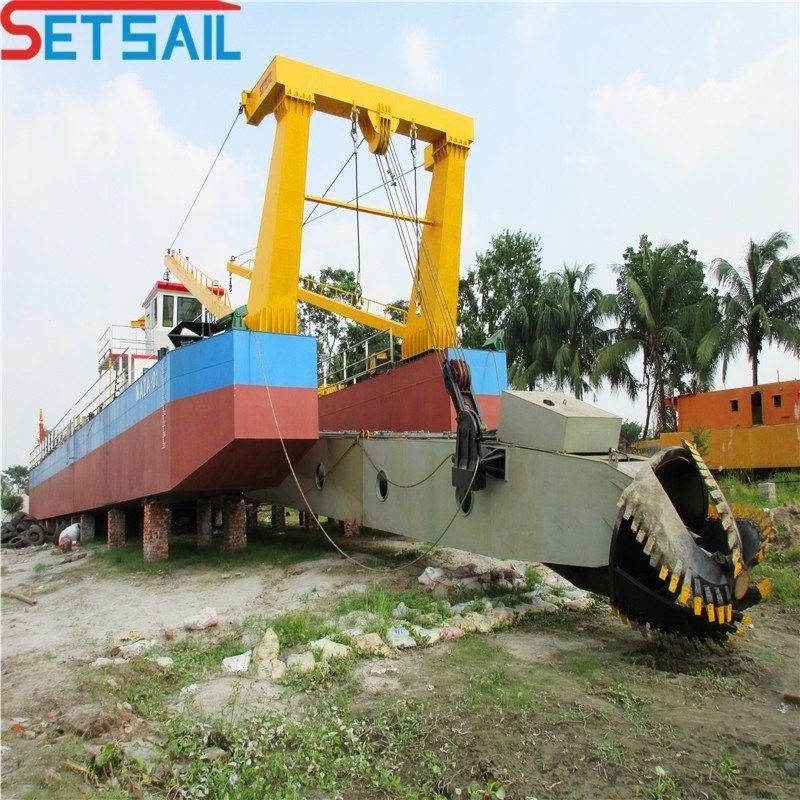

       Set Sail cutter suction dredger's (CSD) suction tube has a cutting mechanism at the suction inlet. The cutting mechanism loosens the bed material and transports it to the suction mouth. The material is usually sucked up by a wear-resistant centrifugal pump and discharged either through a pipe line or to a barge. Cutter suction dredgers are most often used in geological areas consisting of hard surface materials (for example gravel deposits or surface bedrock) where a standard suction dredger would be ineffective. They can be used instead of underwater blasting.

          Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic  electric or both together)


 Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.

 Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

Technical Specification

1. A wide range of use applications
2. High efficiency, large output, far pump distance, low fuel consumption
3. Full hydraulic control with Rexroth, Vickers
4. Siemens PLC operation with the operation convenience
5. Engine choice from Weicchai, Cummins, Caterand more.
6. The modular design enables fast assembly with Set Sail seniors engineers
7. Dredger components available in factories to allow short delivery times
8. Control the working process of dredging and pumping, delivering dredged materials. lower cost;
9. Follow manufacture guideline: CCS-ZC standard
10. CE certificates acquired to prove high quality
11. Western Dredge brand parts, easy to find globally
12. Can choose reliable Chinese brand parts to lower costs
13. Gain access to our sales team, design team, manufacture team 24/7
14. Lifetime Technical Assistance
15. Optional equipment is available such as Spud carriage, anchor boom.
