Product Details:
|
| Model NO.: | QH-D46 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Water Flow: | 4000 M3 | Dredging Depth: | 15m |
| Capacity: | 800 M3 | Mainly Engine Power: | 1193kw |
| Auxiliary Engine Power: | 447kw | Output Distance: | 1500m |
| Total Length: | 38m | Width: | 7.5m |
| Depth: | 2.2m | Total Height: | 7m |
| Pump Size: | 450 | Cutter Head Power: | 170kw |
| Total Fuel Consumption: | 137L | Engine Brand: | Cummins Weichai |
| Hydraulic Brand: | Rexroth | Transport Package: | Bulk. Container |
| Specification: | Total Weight 180t | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 8905100000 |
| Supply Ability: | 2000set /Year | Package Size: | 3900.00cm * 750.00cm * 200.00cm |
| Package Gross Weight: | 230000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 100000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

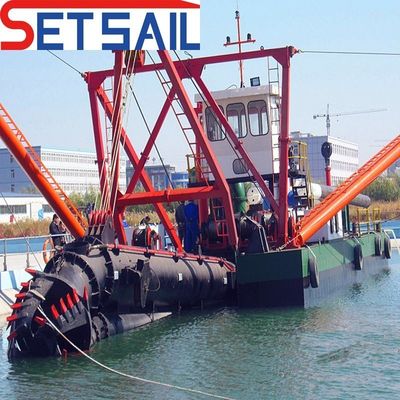

| Set Sail cutter suction dredger is widely used for river lake port and inside waterways etc . cutter suction dredger can process sand mud gravel from all kinds of dredging project . Set sail cutter suction dredger adopts good quality device to achieve the highest performance .let the customer spends the lowest cost to Get the highest profit Configuration of Cummins diesel engine ( Otherwise can provide carter Weichai and others diesel engine brand )Shijiazhuang slurry pump and hydraulic pump from the America or Germany . all configurations can reach the low failure low fuel consumption high capacity and high efficiency. |
| Simple to introduce the principle : Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together) |
| Water flow 4000 20 inch cubic meter basic parameter | |
| Inch size | 20 inch |
| Solid sand Capacity | 800 m3 |
| Discharge distance | 1500m |
| Diesel engine power | 1193kw |
| Auxiliary engine | 447kw |
| Discharge pipe diameter | 450mm |
| Cutter power | 170kw |
| Hydraulic system | Rexroth from Germany |
| Total fuel consumption | 137L |
| Total power | 1640KW |
| Total weight | 180T |
| Model | Sand and solid capacity | Max. dredging depth | Discharge distance |
| QH200 | 160m3/h | 8m | 800m |
| QH250 | 200 m3/h | 9m | 1000m |
| QH 300 | 300 m3/h | 10m | 1200m |
| QH 350 | 400 m3/h | 11m | 1500m |
| QH 400 | 500 m3/h | 13m | 1500m |
| QH 450 | 600 m3/h | 14m | 1500m |
| QH500 | 800 m3/h | 15m | 2000m |
| QH550 | 900 m3/h | 16m | 2000m |
| QH 600 | 1100 m3/h | 16m | 2000m |
| QH 650 | 1200 m3/h | 16m | 2100m |
| QH700 | 1400 m3/h | 17m | 2200m |
| QH800 | 1500 m3/h | 17m | 2500m |
| Remark: Set sail cutter suction dredger can offer the water flow from 800 cubic meter to 30000 cubic meter .also according to customers requirement to customized all standard and non standard dredging cutter suction dredger with the other power cutter suction dredger | |||
| 1 | Wide range of use applications |
| 2 | High efficiency. large output. long pump distance.low fuel consumption |
| 3 | Rexroth. Vickers full hydraulic control |
| 4 | Siemens PLC is easy to operate |
| 5 | Engine choice from Weichai. Cummins. and more. |
| 6 | Equipped with Australian technology dredge pump |
| 7 | The modular design enables fast assembly with HID seniors engineers |
| 8 | Dredger components available in factories to allow short delivery times |
| 9 | Control the working process of dredging and pumping. delivering dredged materials. lower cost. |
| 10 | Follow manufacture guideline: CCS-ZC standard |
| 11 | CE ISO certificates acquired to prove high quality |
| 12 | Western Dredge brand parts. easy to find globally |
| 13 | Can choose reliable Chinese brand parts to lower costs |
| 14 | Gain access to our sales team. design team, manufacture team 24/7 |
| 15 | Lifetime Technical Assistance |
|
| 2. How is your price of cutter suction dredger ? First we can offer the precise and professional design. Price must be match the quality |
| 3. How is your manufacture period ? Normal we have in stock on hot sale cutter suction dredger size . others we can finished in the 1-3 hours |
| 4. How is your grouped equipment on your cutter suction dredger ? Abroad Famous brand diesel engine brand slurry pump PLC system Hydraulic control system brand etc on our cutter suction dredger we can according to the requirement of customer to customized |
| 5.How is your packaging and transportation ? All cutter suction dredger transport by bulk we use the specially protection material to packaging. The fist layer use the film to pack the main pontoon the other equipment pack into the pontoon each the equipment is separated by the vacuum bag to protect the undamaged. |
| 6. How is your payment system? Our factory support T/T L/C etc. |
| 7. How is your service? Before sign contract we can send the engineer to the working site the research . then according to the requirements to make the design . professional engineer track throughout Cutter suction dredger is finished our factory will send the installation team to the abroad To help installation and training local worker .until cutter suction dredger can normal working |
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
| Setsail cutter suction dredger factory expects cooperation with worldwide customers |
