Product Details:
|
| Model NO.: | QHTSD-146 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1year | After-sales Service: | Lifeong |
| Diesel Engine Power: | 110kw-2000kw | Water Flow: | 100m3-20000m3 |
| Dredging Depth: | 4m-15m | Capacity: | 500m3-5000m3 |
| Draught: | 0.85m-15m | Total Length: | 17m-50m |
| Total Width: | 4.5m-12m | Total Depth: | 1.5m-5m |
| Bottom Plate Thickness: | 6mm-20mm | Side Plate Thickness: | 6mm-20mm |
| Front Plate Thickness: | 5mm-20mm | Application: | River Sand .Mud . Salt Lake |
| Hydraulic System: | Rexroth | PLC: | Siemens |
| Optional: | Water Flow Meter Sounder Depth | Transport Package: | Canvas |
| Specification: | Capacity 50m3-4000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 10000 Set/Year | Package Size: | 3900.00cm * 860.00cm * 225.00cm |
| Package Gross Weight: | 230000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 2000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

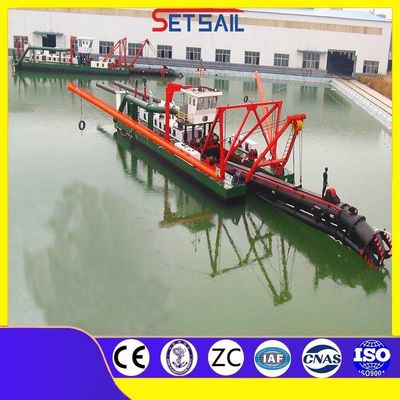

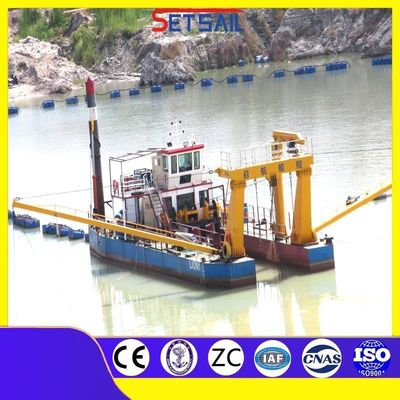

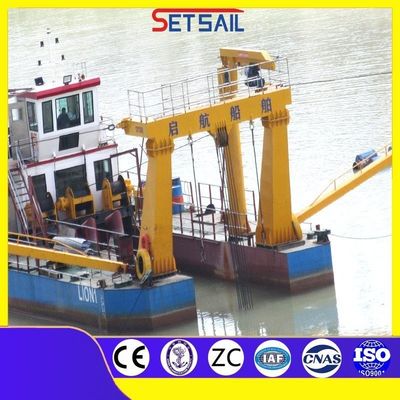

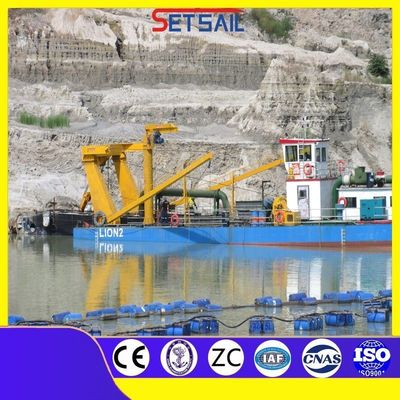

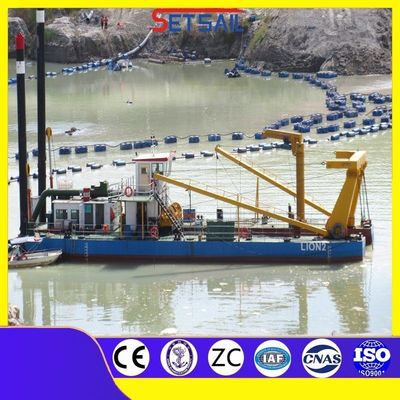

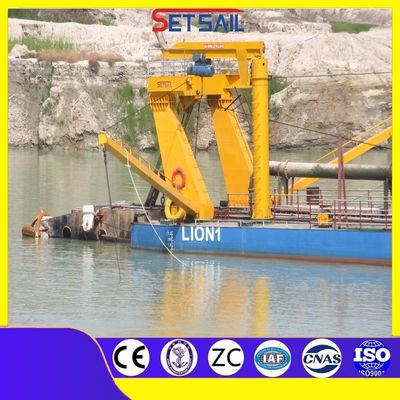

| Cutter suction dredger is a kind of dredger that is widely used in beach dredging projects. It uses the front end of the suction pipe. The cutter suction pipe is equipped with a rotating cutter device to cut and agitate the river bottom sediment, and then through the suction pipe, the Mud, mud transport, mud unloading and other work processes can be completed continuously at one time. It is a high-efficiency, low-cost dredger and a good underwater excavating machine. The split structure makes the installation and transportation of the cutter suction boat simpler and more flexible, can be easily transported to any location. With its robust design, it is the preferred choice in its class due to low maintenance, excellent fuel consumption and high productivity levels. |
| Item | Water flow(m3) | Capacity (m3) | Mainly engine | Auxiliary engine | Discharge distance(m) | Dredging depth(m) | Cutter head power |
| 8 inch | 800m3 | 160m3 | 230kw | 100kw | 1000m | 8m | 50kw |
| 10 inch | 1500m3 | 300m3 | 456kw | 122kw | 1100m | 10m | 64kw |
| 12 inch | 2000m3 | 400m3 | 557kw | 200kw | 1200m | 12m | 108kw |
| 14 inch | 2500m3 | 500m3 | 582kw | 224kw | 1300m | 13m | 150kw |
| 16 inch | 3000m3 | 600m3 | 895kw | 298 kw | 1400m | 14m | 170kw |
| 18 inch | 3500m3 | 700m3 | 1137kw | 260kw | 1500m | 15m | 180kw |
| 20 inch | 5000m3 | 1000m3 | 1335kw | 405kw | 1500m | 15m | 260kw |
| 22 inch | 5500m3 | 1100m3 | 1491kw | 582kw | 1600m | 16m | 300kw |
| 24 inch | 6000m3 | 1200m3 | 1620kw | 700kw | 1600m | 18m | 450kw |
| 26 inch | 9000m3 | 1800m3 | 1950kw | 700kw | 2000m | 20m | 450kw |
| 1 | 1.More than 20 years factory . |
| 2 | 2.Exported over 50 countries . |
| 3 | 3.Over 500 projects worldwide . |
| 4 | 4.Famous brand equipment on our cutter suction dredger . |
| 5 | 5.Can offer the all customized cutter suction dredger size . |
| 6 | 6.All professional team for servicing customers. |
| 7 | 7.Timely safe and high efficiency delivery time. |
| 8 | 8.Flexible payment methods . |
| 9 | 9.safely transportation methods . |
1. factory can also customize all kinds of size dredger . |
2..Chain bucket sand and gold mining dredger : Set sail factory can produce sand chain bucket dredger . gold and diamond chain bucket dredger and land mining machinery so on |
3. Wheel bucket dredger .In addition Set sail factory can offer jet suction dredger trailing suction dredger multi-function service working boat sand transportation boat . sand washing production line etc |
