Product Details:
|
| Model NO.: | QHCSD-216 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Dredging Depth: | 15m | Capacity: | 1000m3 |
| Discharge Distance: | 1500m | Total Weight: | 230t |
| Total Length: | 39m | Pump Size: | 500ND |
| Water Flow: | 5000m3 | Discharge Pipe Diameter: | 600mm |
| Mail Engine Power: | 1335kw | Auxiliary Engine Power: | 405kw |
| PLC: | Siemens | Hydraulic System: | Rexroth |
| Engine Brand: | Cumins . Weichai | Sand Pump Brand: | Shijiazhuang |
| Optional: | Carrier . Water Flow Meter | Transport Package: | Canvas |
| Specification: | Capacity 1000m3/h | Trademark: | Set Sail |
| Origin: | China | HS Code: | 895100000 |
| Supply Ability: | 1000 Sets Per Year | Package Size: | 3900.00cm * 860.00cm * 225.00cm |
| Package Gross Weight: | 245000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 350000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

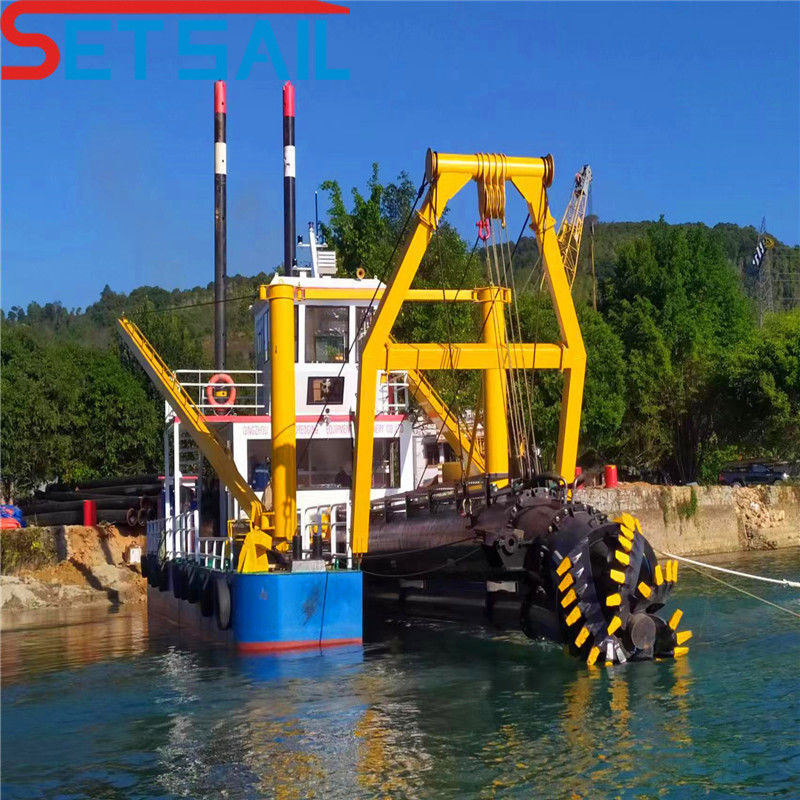

| Set Sail brand cutter suction dredger is self-propelled and non self propelled . it adopts dismantled and box structure .cutter suction dredger power from diesel engine with hydraulic control system or full of the electric power . Normally the power from the diesel engine power to drive the pump and all hydraulic system . all device use the famous brand : Cumins diesel engine. Shijiazhang industrial slurry pump .Rexorth hydraulic system . Siemens PLC system etc . our factory also offer the other brand according to the customers requirements and customize the all kinds of dredging machinery. |
| 1. | Cutter suction dredger is widely used the river and lake for dredging project . it process the sand and mud and the other mixture |
| 2 | Cutter suction dredger is used for the inland waterway construction |
| 3 | Cutter suction dredger can work for mining project match the collection mining machinery to get the gold. diamond and others |
| 4 | Cutter suction dredger can match the sand washing production line to get the clean sand |
| 5 | Cutter suction dredger can construct the pork and dredging reservoir project . |
| 6 | We can do the special cutter suction dredger to suit the sea working site . |
Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
| Item / Information | Diesel power water flow 5000m3 20 inch cutter suction dredger |
| Maily electric motor power | 1335kw |
| Auxiliary electric motor power | 405kw |
| Water flow | 5000m3 |
| Concentration | 20% |
| Capacity | 1000m3/h |
| Cutter head diameter | 2000mm |
| Cutter head power | 260 kw |
| Cutter teeth quantity | 50 piece |
Cutter head motor brand | XHS7C7-4300*5.5 |
| Pump size | 500ND |
| Discharge pipe diameter | 600mm |
| Dreding depth | 18m |
| Discharge distance | 1500m |
| Hydraulic brand | Rexroth |
| PLC | Siemens |
| Frequency converter | GD350-1200G-6 |
7.Set sail service : | 1 | Professional team offer the profession service throughout . |
| 2 | Professional salesmen and engineer can provide the precise design and timely and efficiency communication. |
| 3 | All dredging machinery support our customers inspection . we can offer the passed product All production parts must through the strict testing . |
| 4 | Before production we can send the engineer to the on site to collect the information |
| 5 | Product is finished we can send the maintain team and engineer to abroad until the all dredger working normally . |
| 6 | We can free for training the local workers and all kinds of guidance . complex problems we can help customers to solve them when necessary we can send the engineer to foreign |
