Product Details:
|
| Model NO.: | QHCSD-207 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1year | After-sales Service: | Lifelong |
| Capacity: | 900m3 | Dredging Depth: | 16m |
| Discharge Distance: | 2000m | Main Engine Power: | 1491kw |
| Auxiliary Engine Power: | 298kw | Discharge Pipe Diameter: | 450mm |
| Cutter Head Diameter: | 1700mm | Cutter Head Power: | 170kw |
| Pulling Winch Force: | 80kn | Swing Winch Force: | 80kn |
| Total Weight: | 245t | Total Fuel Consumption: | 268L/H |
| PLC System: | Siemens | Hydraulic System: | Rexroth |
| Total Length: | 38m | Transport Package: | Canvas |
| Specification: | Water Flow 4500m3 | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 895100000 |
| Supply Ability: | 1500 Sets /Year | Package Size: | 1900.00cm * 380.00cm * 220.00cm |
| Package Gross Weight: | 40000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 450000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Simple to introduce the principle : Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric or both together) |

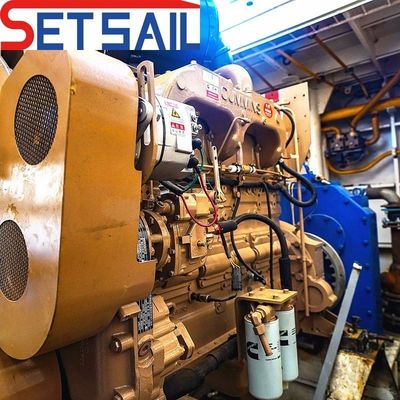

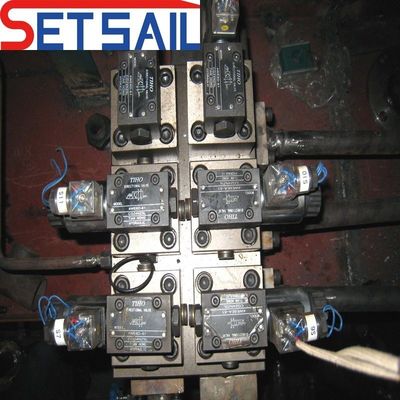

| From the product start we purchase the CCS standard plate and to others original material to ready for manufacture .all device adopts high quality and famous brand . normal diesel engine from American Cummins.we can offer the other engine brand Cater . Wechai so on .Slurry pump from Shijiazhuang industrial pump . Siemens PLC system . Hydraulic system from Germany Rexroth etc. |
| Set sail workers try the best do each detail perfect from the point to the face . provide the high quality to our customer let customers spend the lowest cost the get the biggest value. We can offer timely and high efficiency service let our customer do not worry anything . |
| Item | Parameter |
| Capacity (cubic meter ) | 900m3 |
| Water flow (cubic meter ) | 4500m3 |
| Maximum dredging Depth( meter) | 16m |
| Discharge distance (meter) | 2000m |
| Engine power and brand (kw) | 1491kw |
| Main Engine fuel consumption (Liter) | 160L |

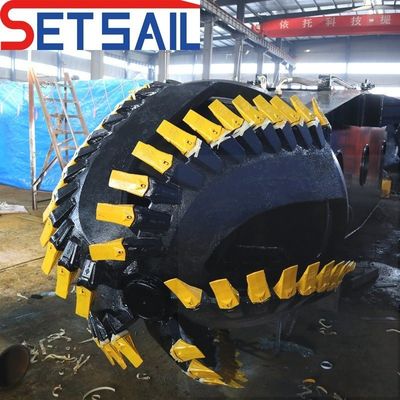

| Cutter head diameter(mm) | 2000mm |
| Cutter head power(kw) | 170kw |
| PLC system | Siemens |
| Hydraulic control system | Rexorth |
| Slurry pump brand and type | Shijiazhuang WN500 |
| Discharge pipe diameter (mm) | 500mm |
| Total length (meter) | 38m |
| Total width (meter) | 8.5m |
| Total hight (meter) | 2.5m |
| Total weight | 245T |
| NO. Item | Water flow (m3) | Capacity(m3) | Dredging depth(m) | Discharge distance (m) | Pump type | Mainly engine power(kw) |
| 8 inch | 800 | 160 | 8 | 800 | WN200 | 220 |
| 10 inch | 1000 | 200 | 9 | 1000 | WN250 | 336 |
| 12 inch | 1500 | 300 | 11 | 1200 | WN350 | 559 |
| 14 inch | 2000 | 400 | 12 | 1500 | WN300 | 634 |
| 16 inch | 2500 | 500 | 13 | 1500 | WN350 | 746 |
| 18 inch | 3500 | 700 | 15 | 1500 | WN450 | 895 |
| 20 inch | 4000 | 800 | 15 | 2000 | WN500 | 1268 |
| 22 inch | 4500-5000 | 900-1000 | 16 | 2000 | WN500 | 1491 |
| 24 inch | 6000 | 1200 | 17 | 2000 | WN550 | 2190 |
| 26 inch | 7000 | 1400 | 20 | 2200 | WN600 | 2380 |
| 28 inch | 8000 | 1600 | 20 | 2500 | WN700 | 3000 |
| Above cutter suction dredger model let you reference . we can do and customized all dredging machinery equipment according to your requirements. |
| 1.More than 20 years factory . |
| 2.Exported over 50 countries . |
| 3.Over 500 projects worldwide . |
| 4.Famous brand equipment on our cutter suction dredger . |
| 5.Can offer the all customized cutter suction dredger size . |
| 6.All professional team for servicing customers. |
| 7.Timely safe and high efficiency delivery time. |
| 8.Flexible payment methods . |
9.safely transportation methods . |
| So far . our factory have received more than 100 country customers from the worldwide . we have won the recognition more and more customers with the high -quality product and enthusiastic service . Set sail factory expect you join in our huge family. |
