Product Details:
|
| Model NO.: | QHCSD-476 | Slot Type: | CTN |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Engine Power And Brand: | Cummins 1137 Kw | Auxiliary Power And Brand: | Cummins 260 Kw |
| Water Flow: | 3500 Cubic Meter | Capacity: | 700m3 |
| Maximum Dredging Depth: | 15meter | Maximun Discharge Distance: | 2000meter |
| Sand Pump Size: | 450ND | Cutter Head Power: | 180kw |
| Total Length: | 39meter | Width: | 8.6 Meter |
| Depth: | 2.25 Meter | Bottom Steel Plate Thickness: | 12mm |
| Side Plate Thickness: | 10mm | Deck Plate Thickness: | 10mm |
| Front Plate Thickness: | 16mm | Transport Package: | Canvas |
| Specification: | 18 Inch Cutter Suciton Dredger | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 5000set/Year | Package Size: | 3800.00cm * 750.00cm * 150.00cm |
| Package Gross Weight: | 90000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 3000/Piece 1 Piece(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

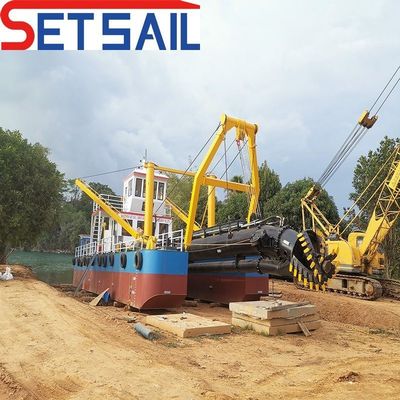

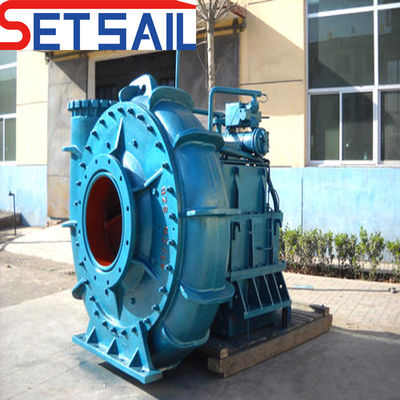

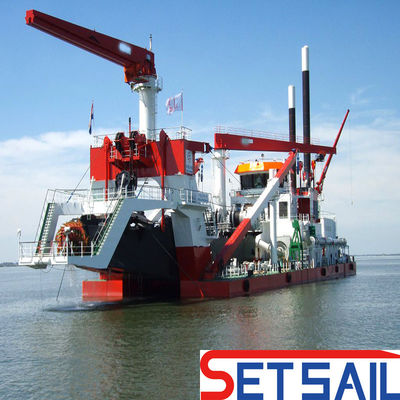

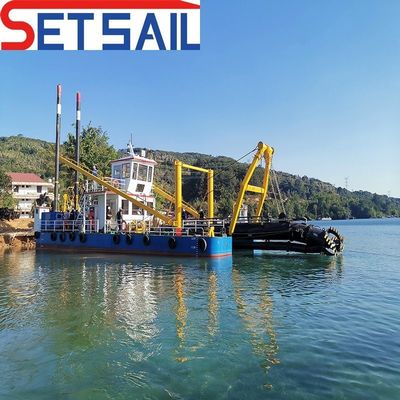

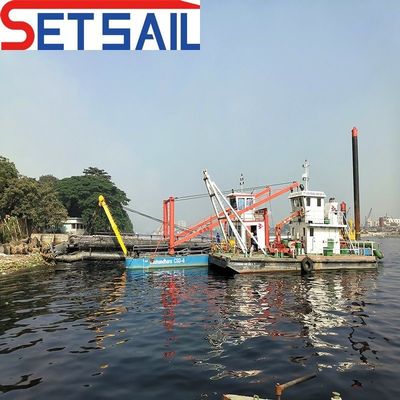

Cutter suction dredger are widely used all kinds of port . river .lake .sea and inland waterway for dredging . Set Sail cutter suction dredger adopt advanced hydraulic control system . this system can reach the longer service life . higher performance and higher capacity . Prower of cutter suction dredger use diesel engine . this diesel engine from Cummins from US and UK. Cummins engine has steady performance . longer continuous working time . don't easy appear error.slurry pump is from famous manufacturing factory. pressure pump is made of high quality material to insure the service life , this pump can reach the output of full power .let customer get the largest capacity . Cutter suction dredger is customized by our factory according to the client request. including engine brand . slurry pump brand . hydraulic control system and the others . all parts of cutter suction dredger adopt advanced device let the cutter suction dredger reach the match well. |
| Item Name | Descriptions /Specifications |
| Production Capacity (solid) | 525-700 cbm/hr for medium sand at a distance of 1500 m. |
| Slurry concentration, % | Min 15%, Max 20% |
| Discharge distance (max) | Max 2000 m |
| Dredging depth at 45 degree 45 | 15 m |
| Min. dredging depth | 1.4m |
| Inner Diameter of suction pipe | 500mm |
| Inner Diameter of discharge pipe | 500mm |
| Average Draught | 1.4m |
| Maximum draught | 1.6m |
| Total weight | 180Ton |
| Main engine | 1137kw,Cummins,China |
| Auxiliary engine | 260kw,Cummins,China |
| Total installed power | 1397KW |
| Fuel tank capacity | 30Ton |
| Delivery time | 90 days |
| Way of Packing * Steel support & iron sheet sea- worthy package. * Load: Export software scientific loading work |
| Transportation * MSK/MSC/APL/EMC/WANHAI/KLINE * Air delivery services * We will remind you before boat arrives. |
| Set Sail factory is loated in QINGZHOU city . our factory has more than 25 year produce exprence . More than 60 meployees at my factory . Main product : all sorts of cutter suction dredger jet cutter suction dredger mining machinery sand transportation boat mutil function service boat wishing sand machienry so on. we have complete devolopment and research team and professtion enginner and service team aviliable . |
