Product Details:
|
| Model NO.: | QH-D84 | Slot Type: | CTN |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Total Length: | 41 | Width: | 9.3m |
| Depth: | 2.8m | Water Flow: | 5000m3 |
| Capacity: | 1100m3 | Mail Engine Power: | 1193 |
| Pump Size: | 500 | Dredging Depth: | 15m |
| Discharge Distance: | 2000m | Cutter Head Power: | 170kw |
| Generator Set Voltage: | 50kw | Engine Brand: | Cummins Weichai |
| Pump Brand: | Shijiazhuang Industral Pump | PLC: | Siemens |
| Head: | 55m | Transport Package: | Suitable For Shipment |
| Specification: | Capacity 1100m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8905100000 |
| Supply Ability: | 1500 Sets /Year | Package Size: | 3800.00cm * 750.00cm * 200.00cm |
| Package Gross Weight: | 180000.000kg | Type: | Cutter Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Cast Iron Cyclone |
| Samples: | US$ 30000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

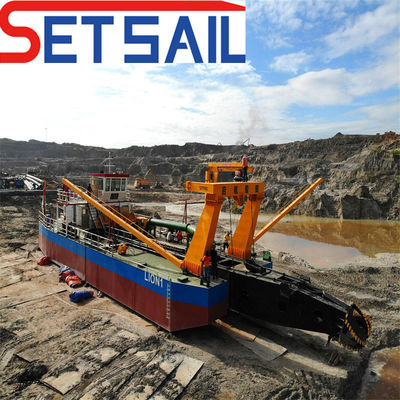

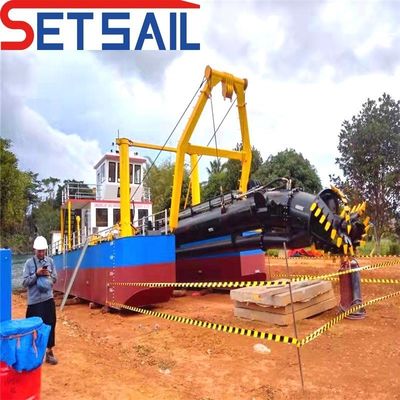

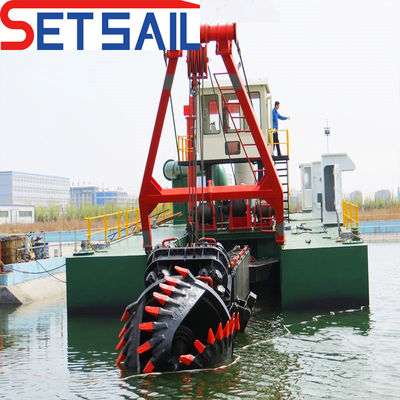

| 1. Cutter Suction Dredger of steel construction. the non self-propelled and self-propelled dismountable type. is able to berth and dredge at any waters both in the coastal area and inland rivers. The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China. |
| 2. It's hull consists of a main pontoon and two side pontoons. Is to be easy to dismantle or mount for transportation by road. rail or water. and is to be easy to reassemble at project site. The engines and dredge pump are located in the center pontoon. the 2 side pontoons serve as fuel bunkers. ballast tanks and store. |
| 3. The dredger is powered by diesel engines. The main diesel engine is to drive the dredge pump and the auxiliary engine is to drive hydraulic system. including cutter.swing and ladder winches, anchor winches. and the spud rams etc. |
| 4. The spacious control cabin is ergonomically designed with 360 degree view. All the operation buttons. swifts. indicators. gauges are equipped on the control desk. Only one worker can control all the dredger in the operation room. |
| 5. The dredger is painted by 4 layers of marine paint to protect from the corrosion. The ZINC anode can be used to give better anti-corrosion function. |
| Size \item | 8 inch | 10 inch | 12 inch | 14 inch | 16 inch |
| Total length | 20m | 25m | 26m | 30m | 34m |
| Mainly engine brand \power | Cummins220kw | Cummins298kw | Cummins447kw | Cummins447kw | Cummins582kw |
| Auxiliary engine power | -------- | -------- | -------- | Cummins 224kw | Cummins224kw |
| Harbour generator | Cummins 20KW | Cummins20KW | Cummins20KW | Cummins30KW | Cummins30KW |
| Max. dredging depth | 8m | 9m | 10m | 11m | 13m |
| Discharge pipe inner diameter | 200mm | 250mm | 300mm | 350mm | 400mm |
| Head | 30m | 30m | 30m | 45m | 45m |
| Sand pump brand | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang |
| Water flow | 800m3 | 1000m3 | 1500m3 | 2000m3 | 2500m3 |
| Solid sand capacity | 160m2 | 200m3 | 300m3 | 400m3 | 500m3 |
| Discharge distance | 800m | 1000m | 1200m | 1500m | 1500m |
| Cutter head diameter | 1300mm | 1350mm | 1450mm | 1450mm | 1500mm |
| Cutter power | 30kw | 50kw | 60kw | 70kw | 70kw |
| Displacement | 65t | 98t | 116t | 174t | 180t |
| Hydraulic control system | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens |
| Total power | 244kw | 318kw | 467kw | 701kw | 836kw |
| Total weight | 50t | 60T | 70T | 90T | 110T |
| Total fuel oil consumption | 34L | 36L | 78L | 105L | 112L |
| Size \item | 18 inch | 20 inch | 22 inch | 24 inch | 26 inch | 28 inch | 32 inch |
| Total length | 37m | 38m | 41m | 43m | 45m | 47m | 50m |
| Mainly engine brand \power | Cummins895kw | Cummins895kw | Cummins1193kw | Cummins1641kw | Cummins1864kw | Cummins2380kw | Cummins3000kw |
| Auxiliary engine power | Cummins224kw | Cummins298kw | Cummins298kw | Cummins447kw | Cummins 582kw | Cummins720kw | Cummins1000kw |
| Harbour generator | Cummins30KW | Cummins40KW | Cummins40KW | Cummins50KW | Cummins75KW | Cummins75KW | Cummins103KW |
| Max. dredging depth | 14m | 15m | 16m | 16m | 16m | 17m | 17m |
| Discharge pipe inner diameter | 450mm | 500mm | 550mm | 600mm | 650mm | 700mm | 800mm |
| Head | 48m | 54m | 57m | 63m | 63m | 64mm | 66m |
| dredging pump brand | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang | Shijiazhuang |
| Water flow | 3000m3 | 4000m3 | 4500m3 | 5000m3 | 6000m3 | 7000m3 | 7500m3 |
| Solid sand capacity | 600m3 | 800m3 | 900m3 | 1000m3 | 1200m3 | 1400m3 | 1500m3 |
| Discharge distance | 1500m | 2000m | 2000m | 2000m | 2000m | 2200m | 2500m |
| Cutter head diameter | 1500mm | 1700mm | 2000mm | 2050mm | 2100mm | 2200mm | 2350mm |
| Cutter power | 80kw | 170kw | 170kw | 300kw | 350kw | 500kw | 500kw |
| Displacement | 224t | 296t | 302t | 385t | 725t | 780t | 1100t |
| Hydraulic control system | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens | PLC Siemens |
| Total power | 1149kw | 1233kw | 1531kw | 2138kw | 2521kw | 3175kw | 4103kw |
| Total weight | 130T | 180T | 210T | 245T | 280T | 320T | 510T |
| Total fuel oil consumption | 123L | 179L | 229L | 245L | 290L | 365L | 471L |

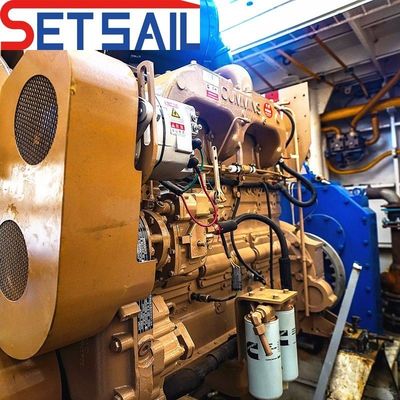

Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.

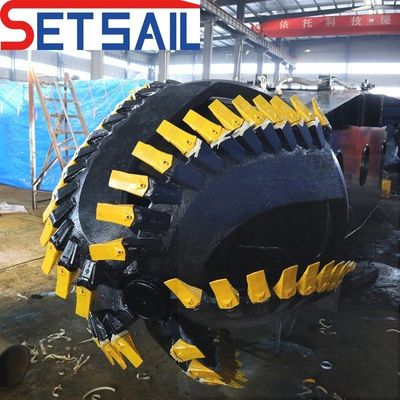

Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves. all configuration equipment are customized according to the request .meantime we can offer the longer service than the other factory
