Product Details:
|
| Model NO.: | QHJSD-25 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1year | After-sales Service: | Lifelong |
| Total Length: | 27m-39m | Main Engine Brand: | Cummins. Weichai |
| Main Engine Power: | 75kw-2000kw | Sand Pump Size: | 8/8′′-18/16′′ |
| Jet Pump Power: | 4kw-200kw | Max. Dredging Depth: | 9m-30m |
| Water Flow: | 540kw-5000kw | Max. Capacity: | 100m3-2000m3 |
| Sand Pump Brand: | Shijiazhuang | PLC Control System: | Siemens |
| Hydraulic Brand: | Rexroth | Optional: | Water Flow Meter |
| Product Brand: | Set Sail | Product Position: | Anchor Position |
| Product Name: | Jet Suction Dredger | Transport Package: | Container |
| Specification: | Capacity 100m3-2000m3 | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 8905100000 |
| Supply Ability: | 10000 Set/Year | Package Size: | 1180.00cm * 500.00cm * 150.00cm |
| Package Gross Weight: | 23000.000kg | Type: | Jet Suction Dredger |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 2000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

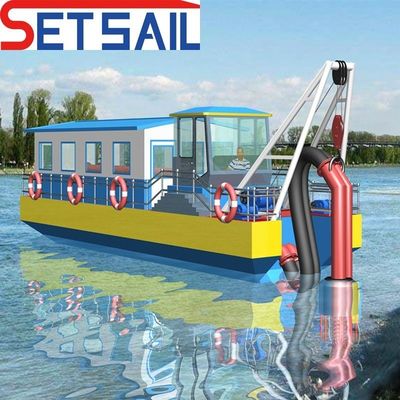

| Jet suction dredger . throught the high presssure jet water column to disperse the ore body .marine engine is controled by the frequency converter. to drive the suction pump to make the vacuum.then send the mixed medium is sucked into the the pump then send to the platform .fined into the destribution . through the distribution into the gold election equipment . the selected concentrate is transported to the destination by the transfer pump .and the waste flows through the chute to the side of the beneficiation platform .operation room i equipped with A/C and monitor. |
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
| Item | QH-J100 | QH-J200 | QH-J300 | QH-J400 | QH-J500 | QH-J650 | QH-J750 | |||||
| Total length | 27m | 29m | 30m | 33m | 36m | 39m | 39m | |||||
| Main engine brand | Cummins |
|
|
|
|
| Cummins | |||||
| Main engine power | 75kw | 88kw | 103kw | 255kw | 330kw | 368kw | 476kw | |||||
| Sand pump | 8/8'' | 10/8'' | 12/10'' | 14/12'' | 14/12'' | 16/14'' | 18/16'' | |||||
| Jet pump power | 4kw | 7.5kw | 11kw | 15kw | 16kw | 17kw | 18kw | |||||
| Max. dredging depth | 9m | 11m | 13m | 15m | 16m | 17m | 18m | |||||
| Pump water flow | 540m3 | 900m3 | 1370m3 | 2000m3 | 2500m3 | 3250m3 | 3600m3 | |||||
| Max. capacity | 100m3 | 200m3 | 300m3 | 400m3 | 500m3 | 650m3 | 750m3 |
| 1. Best pirce | 2.Energy -efficient |
| 3.Outstanding durability realiable performance | 4.Easy transportation |
| 5.Long service life and warrant | 6.High quality |
| 7.Easy maintenance | 8.Service training |
| 1 | Our factory can offer the accurate desing and slution . we can send the engineer to the site to get the detailed working situation |
| 2 | Our factory can sign the long -term service agreement . wen can offer onling and offling surport , special failure we can send the engineer to working site to settle |
| 3 | Our product is strickly to test before delive to the customer. all product are strickly to produce accordomg to the design and produce contract |
| 4 | We can send the installation and testing team to the working site . use the shortest time to make the job normal working |
| 5 | We can offer the free training for the local workers . |
| 6 | Price msut match the quality .factory earn lest profit to give the biggest profit to customers. |
| 7 | Long warrant and offer the a parts of free spare part . espcially after sales wervice team to in charge for each customers |
| 1 | Set sali dredger designed and manufactured for 30 years and have been exported to more than 37 countries. |
| 2 | Set sail factory are Fortune 500 companies chosen manufacturer with 30 years' dredge workmanship. |
| 3 | More than 100 certificated engineers and technicians |
| 4 | Cooperated with famous ship design & research institute and Ocean University |
| 5 | Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| 6 | We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc. |
