Product Details:
|
| Model NO.: | QHTSD-77 | Customized: | Customized |
|---|---|---|---|
| Condition: | New | Warranty: | 2 Year |
| After-sales Service: | Lifelong | Diesel Engine Power: | 110kw-2000kw |
| Water Flow: | 100m3-20000m3 | Dredging Depth: | 4m-15m |
| Capacity: | 500m3-5000m3 | Draught: | 0.85m-15m |
| Total Length: | 17m-50m | Total Width: | 4.5m-12m |
| Total Depth: | 1.5m-5m | Bottom Plate Thickness: | 6mm-20mm |
| Side Plate Thickness: | 6mm-20mm | Front Plate Thickness: | 5mm-20mm |
| Engine Brand: | Cummins | Sand Pump Brand: | Shijiazhuang |
| Hydraulic Brand: | Rexroth | PLC Brand: | Siemens |
| Transport Package: | Canvas | Specification: | Capacity 50m3-4000m3 |
| Trademark: | Set Sail | Origin: | China |
| HS Code: | 8905100000 | Supply Ability: | 10000 Set/Year |
| Package Size: | 1850.00cm * 500.00cm * 200.00cm | Package Gross Weight: | 90000.000kg |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Slot Type: | CTS | Samples: | US$ 2000/Set 1 Set(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

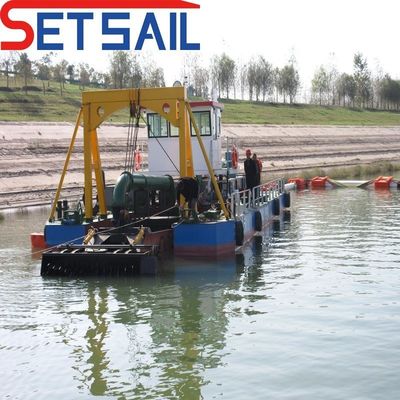

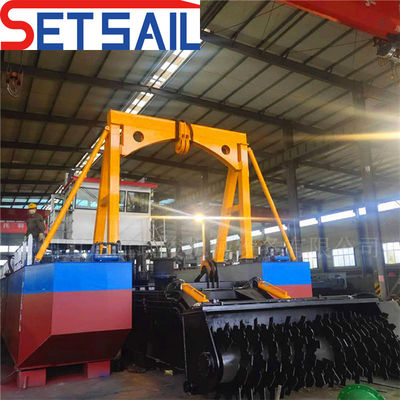

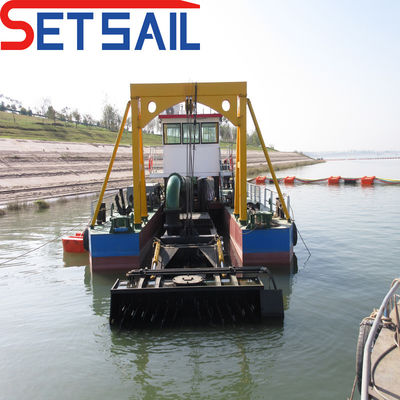

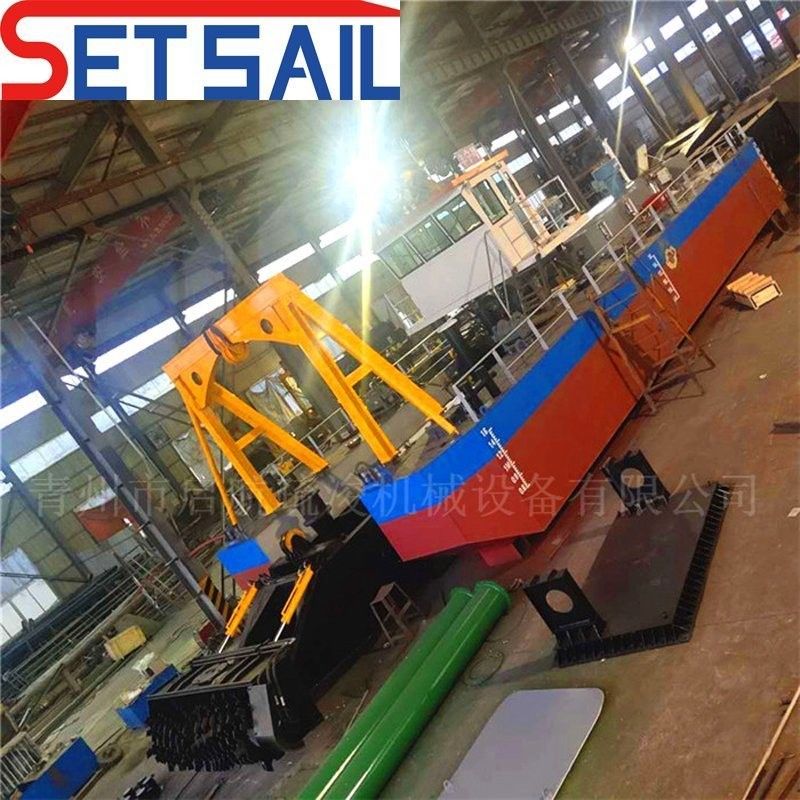

| Trailing suction hopper dredger is self-propelled and non-self propelled . the dredging pump drives the front of the screw rake head to churn .cut collection to the underwater position . and through the suction pipe to get the bottom silt .sand .and other loose material with water then through the the discharge pipe to transport to destination .during the dredger working process in resevoir . in order increase the suction mud effective . we add the jet in the front of suction pipe to increase the concentration . this type of trailing hopper scution dredger is suitable for underwater sandy and non-viscous soil . as well as soft and easily flowing mud. |
Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.
Hydraulic system is one of the most important parts of trailing hopper suction dredgers. The suction head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves. all configuration equipment are customized according to the request .meantime we can offer the longer service than the other factory
| 1. Widely operation area | 2.Easily operation |
| 3.Less wastage | 4.High efficient |
| Model | QH-150 | QH-200 |
| Tolal dimention | 17m*4.5m*1.5m | 20m*6m*1.7m |
| Dredging depth | 5-6m | 6-8m |
| Capacity | 150m3 | 200m3 |
| Thinckness of steel plate | Bottom : 6mm Side: 6mm Front :5mm | Bottom :6mm Side : 6mm Front : 5mm |
| Main engine power | 230kw | 300kw |
| Pump water flow | 500m3 | 800m3 |
| Draught | 0.85m | 0.9m |
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
