7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo

7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo
7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo 7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo 7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo 7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo 7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo 7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo

Large Image :  7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo

Product Details:
Place of Origin: China
Certification: ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash
Supply Ability: 2500set /Year
Contact Now

7.5kw-20kw Power Injection Pump Power Chain Bucket Mining Sand Gold Dredger for Congo

Description
Model NO.: QHCBD-24 Slot Type: CTN
Customized: Customized Condition: New
Warranty: 2 Year After-sales Service: Lifelong
Hull Length: 24-50 Meter Dredging Depth: 7 -30 Meter
Capacity: 60-500 Cubic Meter Drum Screen Size: 1.4m*1.2m-2.6m*1.2m
Drum Screen Power: 5.5kw-20kw Generator Sets Pwer: Cumins 75kw-500kw
Digging Main Motor Power: 37kw-200kw Injection Pump Power: 7.5kw-20kw
Chain Bucket Capacity: 0.035m3-1.2m3 Chanin Bucekt Quantity: 62-100 Piece
Chain Quantity: 124-200 Piece Migration Device Quantity: 4kw*3-15kw*3
Draught: 0.6m-1.2m Product Brand: Set Sail
Product Name: Bucket Chain Mining Dredger Transport Package: Canvas
Specification: 50-500m3Chain Bucket Mining Dredger Trademark: Set Sail
Origin: Qingzhou City Shandong Province China HS Code: 8905100000
Supply Ability: 5000set/Year Package Size: 3900.00cm * 860.00cm * 200.00cm
Package Gross Weight: 180000.000kg Type: Chain Bucket Mining Dredger
Power Type: Electric Cyclone Type: Hydrocyclone
Samples: US$ 2000/Set 1 Set(Min.Order) | Customization: Available | Customized Request
Shipping Cost : About Shipping Cost And Estimated Delivery Time.  : Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.


High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo


High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo
High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo
High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo
mining dredger overview :
 Chain bucket river mining dredger is used for river gold . diamond . tin and sand iron powder so on . The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed. then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water

 mining dredger application :
Our factory is a professtional enterprise in the mineral field . our chain bucket mining dredger is suitable for river .lake .reservoir and gangue so on . use bucket gold dredger can get the gold . diamond and orin ore and other minerals . outstanding performance can get 85%-95% in recovery percentage .meantime we can offer the first -class fine seletion equipment .

Working principle : Chain bucket mining dredger uses the bucket chain to digging the mixture from the river . lake and sea . mixture contains sand. stone .mud .gold and diamond so on . the mixture is transported to the drum screen the according to the different size of material to seprate . different size material into the different election equipment .  agiation chute and fixed chute for the river gold . jigging and centrifuge for diamond . all power from the generation sets to drive the all electrical motor .water pump and hydraulic equipment .  all tail material can recycline and into the river .

Main function and component :

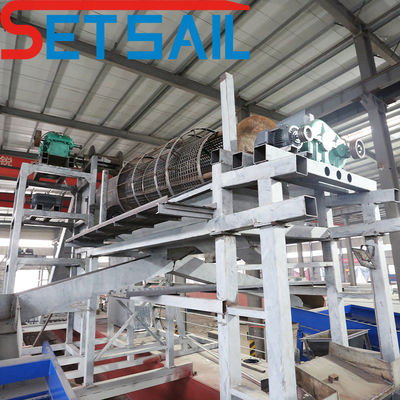

  Bucket chain mining dredger . the processing mixing sand . stone mud material in the drum screen . seprate stone and sand then fine sand conveyed into the chute to get the extracted . tailings flow through the chute
        Bucket chain mining dredger . the hull adopts thw assemble box structure .Equipped with operatting room . generator sets  digging devices  sand separation devices , primary mining extraction device . vibrating selected device . Tailings recovery . tailing delivery devices  lifting devices  positioning devices  can be designed according to the work enviroment .
Primary size and parameter:
Model  QH-60 QH-80 QH-100 QH-120 QH-150
Hull size(L*B*H) 24*4.5*1.0m 27*5.4*1.0m 30*4.8*1.0m 35*7.6*1.2m 38*6.6*1.2m
Dredging depth 7m 12m 13m 15m 18m
Max. capacity 60m3/h 80m3/h 100m3/h 120m/h 150m/h
Drum screen (L*Dia.) 1.4*1.2m 2.4*1.4m 2.4*1.4m 2.4*1.4m 2.6*1.5m
Digging power  37kw 55kw 55kw 75kw 75kw
Lifting  motor  7.5kw 18kw 22kw 22kw 22kw
Injectinong pump power 7.5kw 11.5kw 11.5kw 22kw 22kw
Chain bucket capacity 0.035m3 0.05m3 0.08m3 0.08m3 0.08m3
Chain bucket quantity 86pcs 62pcs 62pcs 86pcs 86pcs
Chain  quantity 172pcs 124pcs 124pcs 172pcs 172pcs
Mining dredger at working site :
High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo
High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo
High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo
High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo
High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo
High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo

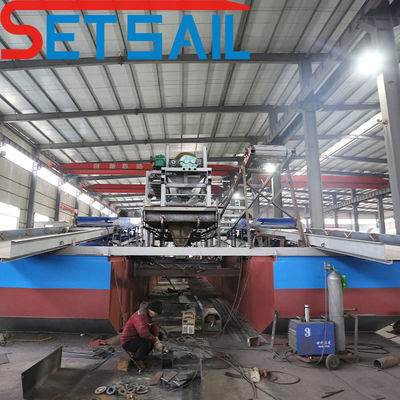

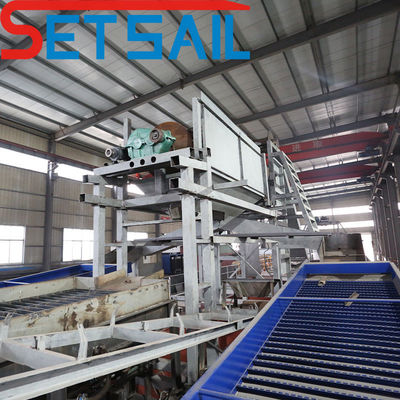

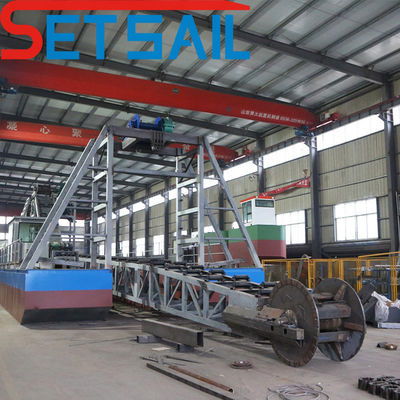

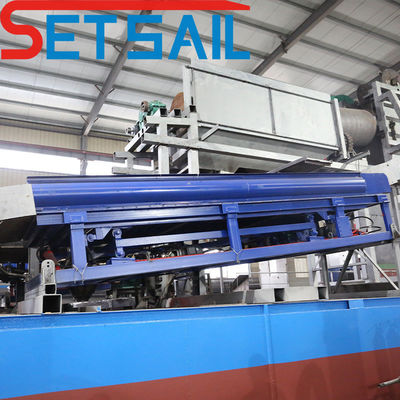

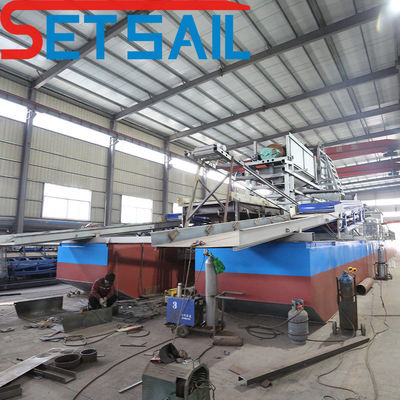

Set Sail factory workshop:
High Efficiency Chain Bucket Mining Sand Gold Dredger for CongoOur factory introduce :
       Set Sail Dredging Equipment Machinery Co., Ltd is one of the leader manufacture dredging equipment in china .our factory covers over 40000 square meter more than 200 employees in factory. Our factory has experience more than 20 years complete research development production  design  testing  assemble after sales service department so on . let our customers do not worry anything.
     Set sail expect cooperation with the worldwide customers to create the bright tomorrow

High Efficiency Chain Bucket Mining Sand Gold Dredger for CongoCertification :
High Efficiency Chain Bucket Mining Sand Gold Dredger for Congo
