4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger

4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger
4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger 4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger 4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger 4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger 4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger 4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger

Large Image :  4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger

Product Details:
Place of Origin: China
Certification: ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash
Supply Ability: 2500set /Year
Contact Now

4kw X 3-10kw X3 Migration Device High Capacity Chain Bucket Sand and Gold Dredger

Description
Model NO.: QHSD-12 Slot Type: CTN
Customized: Customized Condition: New
Warranty: 1year After-sales Service: Lifelong
Capacity: 60m3-300m3 Dredging Depth: 7m-20m
Drum Screen Length .Diameter: 1.4mx1.2m-2.6mx1.5m Durm Screen Power: 5.5kw-20kw
Generator Power: 75kw-150kw Width: 4.5m-10m
Hight: 1.0m-2m Bucket Quantity: 86PCS-100PCS
Chain Quantity: 172PCS-200PCS Dredging Power: 37kw-150kw
Lifting Motor Power: 7.5kw-100kw Injection Pump Power: 7.5kw-50kw
Migration Device: 4kw X 3-10kw X3 Drum Screen Motor: 5.5kw-50kw
Product Name: River Mining Dredger Transport Package: Container
Specification: Total Length 24meter-38meter Trademark: Set Sail
Origin: Qingzhou City Shandong Province China HS Code: 8905100000
Supply Ability: 5000set/Year Package Size: 3800.00cm * 750.00cm * 200.00cm
Package Gross Weight: 180000.000kg Lead Time: 60 Days (1 - 1 Sets) To Be Negotiated ( > 1 Sets)
Type: Chain Bucket Gold Dredger Power Type: Electric
Cyclone Type: Hydrocyclone Samples: US$ 2000/Set 1 Set(Min.Order) |
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

High capacity chain bucket sand and gold dredger in river

1. Chain bucket gold dredger discription :
          Bucket chain gold dredger adopts assembled box struture . according to the geographical enviroment to design all operation type . it is made of digging device . lifting device  separating sand device . gold selection device . tailing processing device . generator set. positing device so on .
High Capacity Chain Bucket Sand and Gold Dredger in River

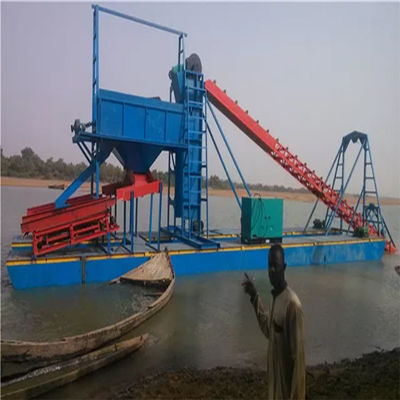

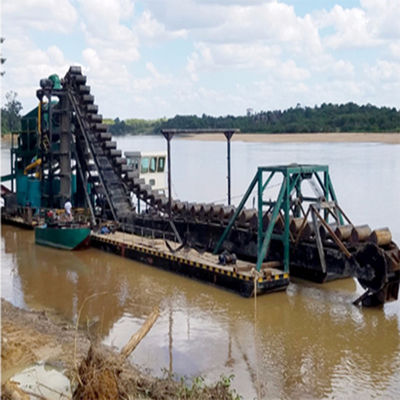

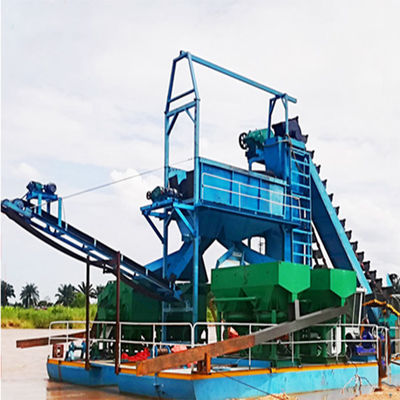

2.Chain bucket gold dredger picture :
mining dredger overview :
 Chain bucket river mining dredger is used for river gold . diamond . tin and sand iron powder so on . The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed. then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water

 mining dredger application :
Our factory is a professtional enterprise in the mineral field . our chain bucket mining dredger is suitable for river .lake .reservoir and gangue so on . use bucket gold dredger can get the gold . diamond and orin ore and other minerals . outstanding performance can get 85%-95% in recovery percentage .meantime we can offer the first -class fine seletion equipment .

Working principle : Chain bucket mining dredger uses the bucket chain to digging the mixture from the river . lake and sea . mixture contains sand. stone .mud .gold and diamond so on . the mixture is transported to the drum screen the according to the different size of material to seprate . different size material into the different election equipment .  agiation chute and fixed chute for the river gold . jigging and centrifuge for diamond . all power from the generation sets to drive the all electrical motor .water pump and hydraulic equipment .  all tail material can recycline and into the river .
High Capacity Chain Bucket Sand and Gold Dredger in RiverHigh Capacity Chain Bucket Sand and Gold Dredger in RiverHigh Capacity Chain Bucket Sand and Gold Dredger in RiverHigh Capacity Chain Bucket Sand and Gold Dredger in River3.Chain bucket gold dredger working principle :
       Chain bucket gold dredger . throuth the electric motor to drive chain bucket dig the mixture of sand .mud . stone and gold. then the bucket put mixture into the the drum screen to separate mixture . Standard material will into the gold seledtion device to select by vibration . non -standard material will into the river by belt convery or other place . all power from generator sets . position use the winch to fix the dold dredger when it is working .
4.Chain bucket gold dredger basic parameter:
Item \type Hull size  Dredging depth Drum scrren power Generator power and brand  Dredging power Lifting power Chain bucket capacity
QH-60 24m 7m 5.5kw Cummins /75kw 35kw 7.5kw 0.035m3
QH-80 27m 12m 5.5kw Cummins/75kw 55kw 18kw 0.05m3
QH-100 30m 13m 5.5kw Cummins /75kw 55kw 22kw 0.08m3
QH-120 35m 15m 7.5kw Cummins/75kw 75kw 22kw 0.08m3
QH-150 38m 18m 11kw Cummins /75kw 75kw 22kw 0.08m3
5. Company profile :
         Set sail dredging machinery equipment factory is manufacture. mainly product : all kinds of cutter suction dredger . jet suction dredger . chain bucket sand dredger . chain bucket gold and diamond dredger .land mining machiery . multi-function service working boat . wheel bucket dredger . trailing suction dredger so on .Successful series of products have won the recognization and approval of general administration of Quality Supervision. Now our company's products are widely exported and used in the Aisa,Afrrica,South America,Middle Easr and other regions.
High Capacity Chain Bucket Sand and Gold Dredger in River
6.Product feature :

      The dredging bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed, then trommel classifier, with single layer or double layer screens, will separate the gravels, clay balls, water plants with need sand. The find sand with fine gold & gold nuggests will be finished selection by the gold centrifuge,pulsating sluice box and fixed sluice box. After 3 process of gold panning, the gold recovery percentage can be upto 90%.
       Our bucket chain gold dredger is very fir for the alluvial sand with gold. If the river sand with a lot of  big pebbles, the bucket chain type is one perfect choice.

7.FAQ:
1  the gold particle size in mm?
2  if you will require the diesel generator? and any special requirement for the generator brand?

3  In the dredging raw ore, the sand & stone percentage? stone's size in mm?
4 How many meters for the dredge depth?
5 How many cubic meter per hour for the deal capacity?

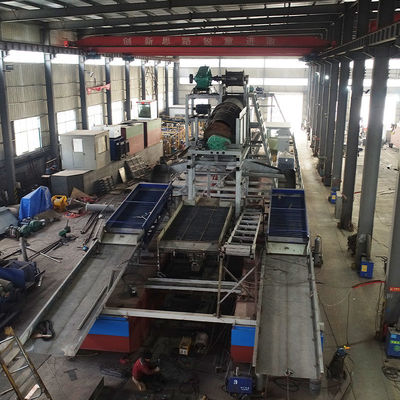

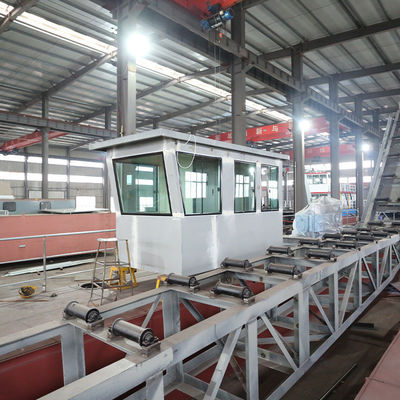

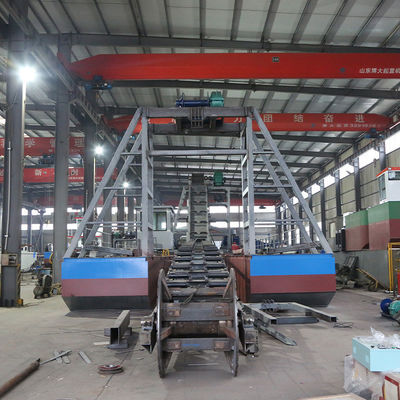

8. Workshop :
High Capacity Chain Bucket Sand and Gold Dredger in River
9. Customer visit and factory certification :High Capacity Chain Bucket Sand and Gold Dredger in River10.Our service :
  1. Free dredger consultation and free product drawings
  2. Customize dredgers based on the client's actual dredging needs
  3. On-site visits and factory visit services provided by Set Sail
  4. Arrange 2-3 Set Sail senior engineer and technicians to enter the working site within 36 hours
  5. Free professional assembly, training and operating to make sure dredger operates smoothly
  6. 1-year warranty and Lifetime technical assistance
  7. Sign after-sales service agreement with Set Sail  clients
  8. Offer spare parts at a discounted price
  9. On-site parts available
  10. Set Sail company require responsible Sales team, design team, manufacture team available 24/7 to best serve clients
  11. Set Sail company signs a long-time after-sale service agreement with customers.we make an excellent filing of customers for long term following-up service.
