Product Details:
|
| Model NO.: | QHM21 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2year | After-sales Service: | Lifelong |
| Total Length: | 24m-38m | Dredging Depth: | 7m-30m |
| Maxi.Capacity: | 500m3 | Drum Screen Dimension: | 1.4m*1.2m-2.6m*1.5m |
| Drum Screen Power: | 5.5kw-50kw | Generator Power: | 75kw-200kw |
| Main Dredging Motor Power: | 37kw-200kw | Lifting Motor Power: | 7.5kw-50kw |
| Water Pump Power: | 7.5kw-50kw | Bucket Capacity: | 0.035-0.08m3 |
| Bucket Quantity: | 62PCS-82PCS | Chain Quantity: | 124PCS-172PCS |
| Transport Package: | Canvas | Specification: | Capacity 60m3/h-500m3/h |
| Trademark: | Set Sail | Origin: | China |
| HS Code: | 8905100000 | Supply Ability: | 10000 Set/Year |
| Package Size: | 3900.00cm * 860.00cm * 225.00cm | Package Gross Weight: | 120000.000kg |
| Type: | Chain Bucket Mining Dredger | Power Type: | Electric |
| Cyclone Type: | Hydrocyclone | Samples: | US$ 2000/Set 1 Set(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

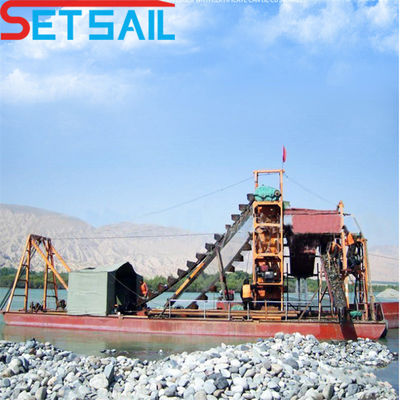

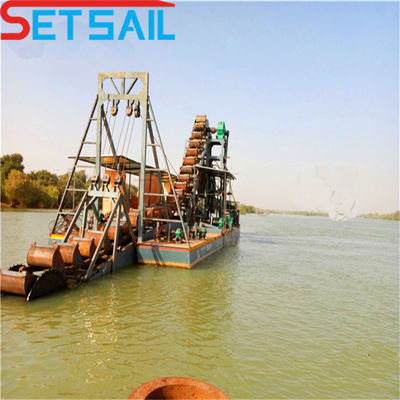

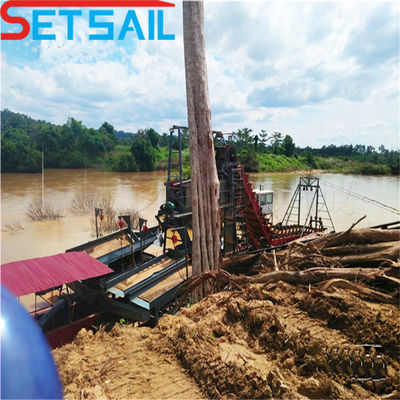

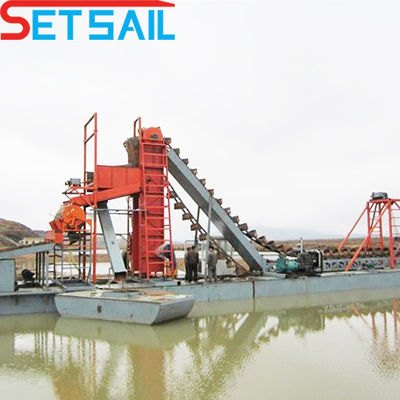

| Chain bucket river mining dredger is used for river gold . diamond . tin and sand iron powder so on . The bucket chain gold dredger use the buckets, driven by guide wheels on continuous rotation on the bucket bridge. sand .mud and stone so on are digged by the bucket with chain from the water above .Bucket rotates around the underwater dredging wheel, scooping up the solid in the riverbed. then into the separating system, solids larger than 10 mm will go into the tail-box, tailing discharged to place far away from gold dredger. Less than 10 mm of material from the flow channel into the Gold Sands separation system, based on the difference between the relative density of sand and gold, gold will fall into the bottom since of the high density,sand and other material will float on the surface,and discharged to the tail system by water |

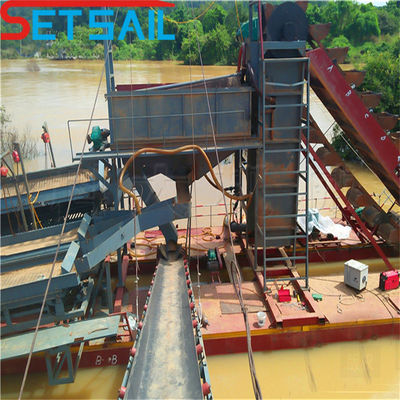

| Chain bucket gold dredger . throuth the electric motor to drive chain bucket dig the mixture of sand .mud . stone and gold. then the bucket put mixture into the the drum screen to separate mixture . Standard material will into the gold seledtion device to select by vibration . non -standard material will into the river by belt convery or other place . all power from generator sets . position use the winch to fix the dold dredger when it is working . |
| Item \type | Hull size | Dredging depth | Drum scrren power | Generator power and brand | Dredging power | Lifting power | Chain bucket capacity |
| QH-60 | 24m | 7m | 5.5kw | Cummins /75kw | 35kw | 7.5kw | 0.035m3 |
| QH-80 | 27m | 12m | 5.5kw | Cummins/75kw | 55kw | 18kw | 0.05m3 |
| QH-100 | 30m | 13m | 5.5kw | Cummins /75kw | 55kw | 22kw | 0.08m3 |
| QH-120 | 35m | 15m | 7.5kw | Cummins/75kw | 75kw | 22kw | 0.08m3 |
| QH-150 | 38m | 18m | 11kw | Cummins /75kw | 75kw | 22kw | 0.08m3 |
| 1 | Profestional people serve the technical consult. |
| 2 | All the mining machinery can be coustomed. |
| 3 | We are factory which can provide the higher quality and lower price. |
| 4 | Offering spare parts at a discounted price. |
| 5 | Responsible Sales team design team manufacture team available 24/7 to best serve clients. |
| 6 | Free repair if quality problems happen. |
| 7 | Provide professional service and providesolution in a timely manner. |
| 8 | Free field Installation commissioning training and and free product drawings. |
| The dredging bucket rotates around the underwater dredging wheel. scooping up the solid in the riverbed. then trommel classifier. with single layer or double layer screens. will separate the gravels, clay balls. water plants with need sand. The find sand with fine gold & gold nuggests will be finished selection by the gold centrifuge.pulsating sluice box and fixed sluice box. After 3 process of gold panning. the gold recovery percentage can be upto 90%. Our bucket chain gold dredger is very fir for the alluvial sand with gold. If the river sand with a lot of big pebbles. the bucket chain type is one perfect choice. |
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
| 1 | the gold particle size in mm? |
| 2 | if you will require the diesel generator? and any special requirement for the generator brand? |
| 3 | In the dredging raw ore, the sand & stone percentage? stone's size in mm? |
| 4 | How many meters for the dredge depth? |
| 5 | How many cubic meter per hour for the deal capacity? |
