Product Details:
|
| Model NO.: | QHCBD-6 | Material: | Carbon Steel |
|---|---|---|---|
| Material Feature: | Corrosion Resistant | Energy Saving: | Energy Saving |
| Warranty: | 2 Years | Color: | Multi Color |
| Customized: | Customized | Condition: | New |
| After-sales Service: | Lifelong | Power: | Diesel Engine Generator Sets |
| Application: | River Gold And Diamond | Gold Equipment: | Agitation Chute |
| Diamond Equipment: | Jigging | Deal Capacity: | 50-300m3 |
| Dredging Depth: | 2-30m | Transport Package: | Canvas |
| Specification: | Carbon Material Chain Bucket Mining Dredger | Trademark: | Set Sail |
| Origin: | China | HS Code: | 890510000 |
| Supply Ability: | 5000set/Year | Package Size: | 3800.00cm * 750.00cm * 200.00cm |
| Package Gross Weight: | 180000.000kg | Type: | Flotation Separator |
| Voltage: | 380V | Weight: | >10T |
| Samples: | US$ 2000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd. is one of the leading dredging factory in China . Cutter suction dredger river mining machinery land mining machinery Chain bucket sand dredger jet suction dredger service working boat trailing hoper dredger Wheel bucke suction dredger so on .our product are exproted all part of the world such as Aisa,Afrrica,South America,Middle Easr and other regions. |

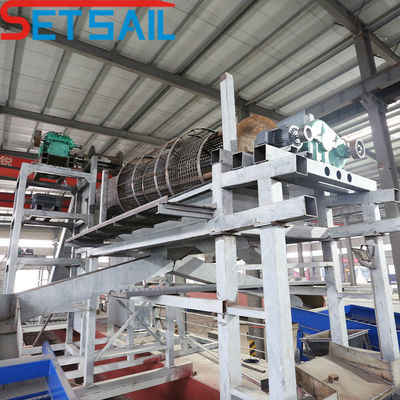

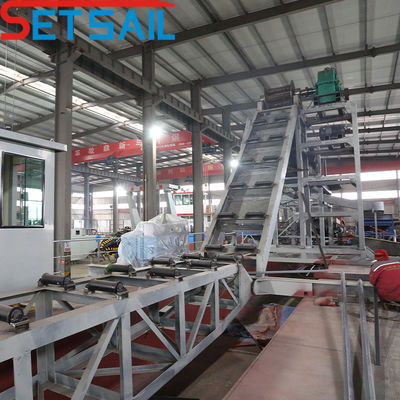

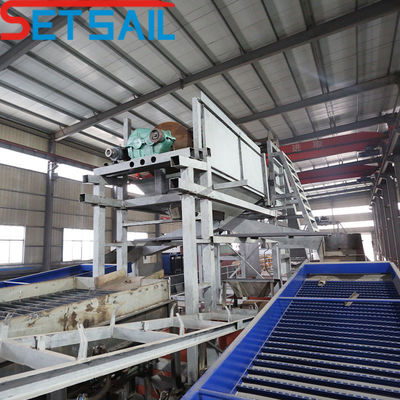

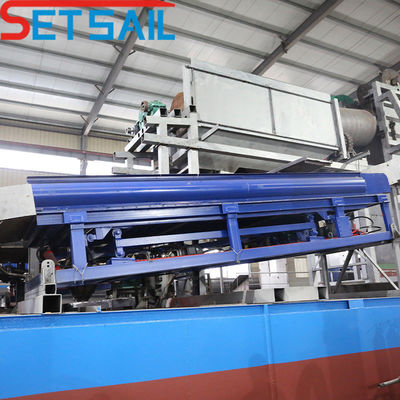

| The dredging bucket rotates around the underwater dredging wheel. scooping up the solid in the riverbed. then trommel classifier. with single layer or double layer screens. will separate the gravels. clay balls. water plants with need sand. The find sand with fine gold & gold nuggests will be finished selection by the gold centrifuge.pulsating sluice box and fixed sluice box. After 3 process of gold panning. the gold recovery percentage can be upto 90%. Our bucket chain gold dredger is very fir for the alluvial sand with gold. If the river sand with a lot of big pebbles. the bucket chain type is one perfect choice. |
| 1 | How many cubic meter per hour for the deal capacity? |
| 2 | How many meters for the dredge depth? |
| 3 | In the dredging raw ore, the sand & stone percentage? stone's size in mm? |
| 4 | . the gold particle size in mm? |
| 5 | if you will require the diesel generator? and any special requirement for the generator brand? |
| Model | HJ-M60 | HJ-M80 | HJ-M100 | HJ-M120 | HJ-M150 |
| Hull size | 24*4.5*1 | 27*5.4*1 | 30*4.8*1 | 35*7.6*1.2 | 38*6.6*1.2 |
| Dredging depth | 7m | 12m | 13m | 15m | 18m |
| Drum screen(L*DIA) | 1.4*1.2 | 2.4*1.4 | 2.4*1.4 | 2.4*1.4 | 2.6*1.5 |
| Drum screen power | 5.5KW | 5.5KW | 5.5KW | 7.5KW | 11KW |
| Generator power | 75KW | 75KW | 75KW | 75KW | 75KW |
| Chain bucket quantity | 86 | 62 | 62 | 86 | 86 |
| Chain bucket capacity | 0.035KG | 0.05KG | 0.08KG | 0.08KG | 0.08KG |
| Chain quantity | 172 | 124 | 124 | 172 | 172 |
| Chain size | 600*100*30 | 600*100*30 | 800*100*35 | 800*120*40 | 800*120*40 |
