Product Details:
|
| Model NO.: | MD-22 | Slot Type: | CTN |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Hull Length: | 24-50 Meter | Dredging Depth: | 7 -30 Meter |
| Capacity: | 60-500 Cubic Meter | Drum Screen Size: | 1.4m*1.2m-2.6m*1.2m |
| Drum Screen Power: | 5.5kw-20kw | Generator Sets Pwer: | Cumins 75kw-500kw |
| Digging Main Motor Power: | 37kw-200kw | Injection Pump Power: | 7.5kw-20kw |
| Chain Bucket Capacity: | 0.035m3-1.2m3 | Chanin Bucekt Quantity: | 62-100 Piece |
| Chain Quantity: | 124-200 Piece | Migration Device Quantity: | 4kw*3-15kw*3 |
| Draught: | 0.6m-1.2m | Total Length: | 44m |
| Application: | River Gold And Diamond | Transport Package: | Canvas |
| Specification: | 50-500m3Chain Bucket Mining Dredger | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 8905100000 |
| Supply Ability: | 5000set/Year | Package Size: | 3900.00cm * 860.00cm * 225.00cm |
| Package Gross Weight: | 60000.000kg | Type: | Chain Bucket Mining Dredger |
| Power Type: | Electric | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 2000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

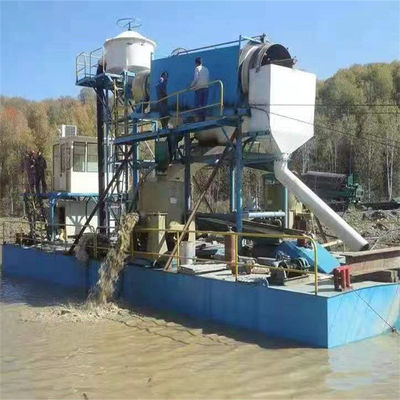

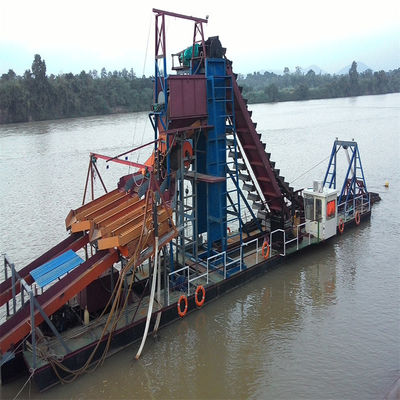

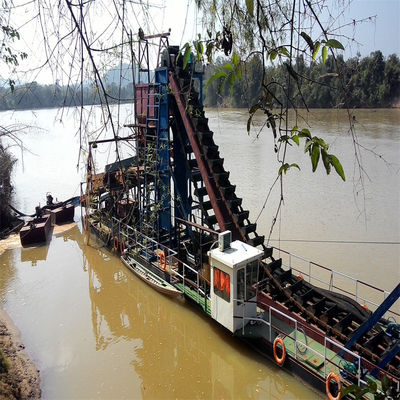

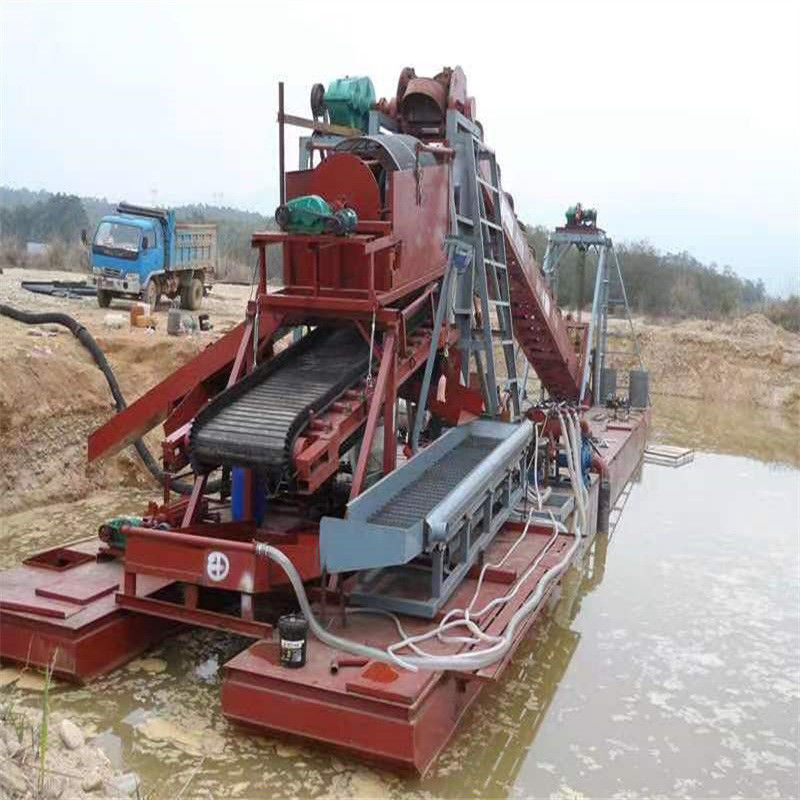

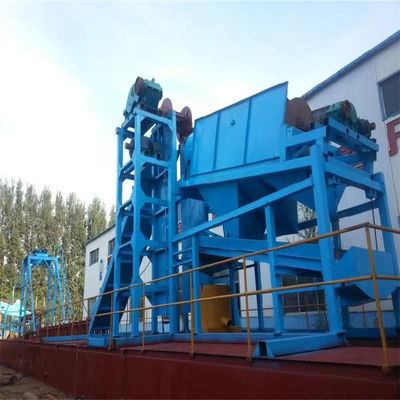

| Bucket chain mining dredger . the hull adopts thw assemble box structure .Equipped with operatting room . generator sets digging devices sand separation devices , primary mining extraction device . vibrating selected device . Tailings recovery . tailing delivery devices lifting devices positioning devices can be designed according to the work enviroment . |
| Bucket chain mining dredger . the processing mixing sand . stone mud material in the drum screen . seprate stone and sand then fine sand conveyed into the chute to get the extracted . tailings flow through the chute |
| Model | QH-60 | QH-80 | QH-100 | QH-120 | QH-150 |
| Hull size(L*B*H) | 24*4.5*1.0m | 27*5.4*1.0m | 30*4.8*1.0m | 35*7.6*1.2m | 38*6.6*1.2m |
| Dredging depth | 7m | 12m | 13m | 15m | 18m |
| Max. capacity | 60m3/h | 80m3/h | 100m3/h | 120m/h | 150m/h |
| Drum screen (L*Dia.) | 1.4*1.2m | 2.4*1.4m | 2.4*1.4m | 2.4*1.4m | 2.6*1.5m |
| Digging power | 37kw | 55kw | 55kw | 75kw | 75kw |
| Lifting motor | 7.5kw | 18kw | 22kw | 22kw | 22kw |
| Injectinong pump power | 7.5kw | 11.5kw | 11.5kw | 22kw | 22kw |
| Chain bucket capacity | 0.035m3 | 0.05m3 | 0.08m3 | 0.08m3 | 0.08m3 |
| Chain bucket quantity | 86pcs | 62pcs | 62pcs | 86pcs | 86pcs |
| Chain quantity | 172pcs | 124pcs | 124pcs | 172pcs | 172pcs |
| 1 | the gold particle size in mm? |
| 2 | if you will require the diesel generator? and any special requirement for the generator brand? |
| 3 | In the dredging raw ore. the sand & stone percentage? stone's size in mm? |
| 4 | How many meters for the dredge depth? |
| 5 | How many cubic meter per hour for the deal capacity? |
