Product Details:
|
| Model NO.: | QHM-1 | Material: | Carbon Steel |
|---|---|---|---|
| Material Feature: | Corrosion Resistance | Energy Saving: | Energy Saving |
| Warranty: | 2 Years | Color: | Multi Color |
| Customized: | Customized | Condition: | New |
| After-sales Service: | Lifelong | Power: | Genarator Sets /150kw |
| Deal Capacity: | 150m3 /Hour | Dredging Depth: | 1-30 Meter |
| Generator Brand: | Cumins | Function: | River Sand And Mining |
| Power Supply: | Generator Sets | Gold Recovery Percentage: | 85%-90% |
| Total Length: | 38 Meter | Breadth: | 6.6 Meter |
| Height: | 1.2 Meter | Draught: | 0.8 Meter |
| Drum Screen Power: | 11 Kw | Main Digging Motor Power: | 75kw |
| Lifting Motor Power: | 22kw | Injection Pump Power: | 15kw |
| Transport Package: | Canvas | Specification: | 150m3 Capacity |
| Trademark: | Set Sail | Origin: | Qingzhou City Shandong Province China |
| HS Code: | 895100000 | Supply Ability: | 1000 Sets Per Year |
| Package Size: | 3800.00cm * 750.00cm * 200.00cm | Package Gross Weight: | 120000.000kg |
| Type: | Flotation Separator | Voltage: | 380V |
| Weight: | >10T | Samples: | US$ 2000/Set 1 Set(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

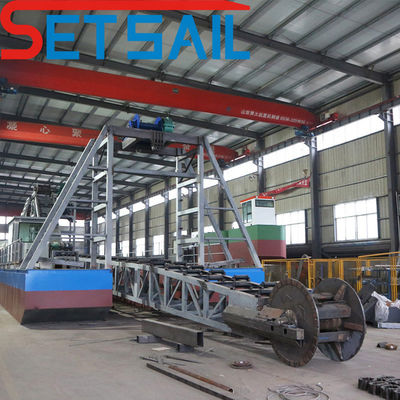

| Bucket : use it to dig the mixture from the river lake and sea so on | Bucket Chain : it connect the bucket to made the whole dig system |
| agitation chute : this agiation chute for the river gold | jigger machinery : this machinery for the river diamond and gold |
| classification system : mixture is splited by this machinery to get the qualified material | Four angle wheel and five angle wheel : it makes the all digging sytem more rotation smooth |
| 1 | Long time quality guaranteed. Every step of the producing is strictly supervised. Certified by ISO9001. |
| 2 | Wide application. Can be used in river, seaside etc for small scale alluvial/placer gold dredging. |
| 3 | Good after sales service. Overseas service for installation and debugging and problem consult. |
| 4 | Customized. Can be produced according to customers' requirement, such as the color and so on. |
| Model | Deal Capacity(m3/h) | Power(KW) | Water consumption(m3/h) | Dredge Depth(m) | Gold Recovery Percentage |
| QHBCD-100 | 100 | 65-100 | 100-200 | 1-25 | 85-90% |
| QHBCD-150 | 150 | 82-120 | 150-250 | 1-25 | 85-90% |
| QHBCD-200 | 200 | 97-150 | 200-300 | 1-25 | 85-90% |
| QHBCD-250 | 250 | 108-200 | 250-500 | 1-25 | 85-90% |
6. Our service : | 1 | Rational and practical design according to customers request proved |
| 2 | Within warranty period we provide free repair if quality problems emerge. |
| 3 | Engerneers are avaliable to service oversea to assemble and test the machine according to the contract. |
| 4 | Free training of the first batch of operater proved. any question or problem about the products can be answered via online support phone calls or on-sit support 24 hours. |
| 1 | How many cubic meter per hour for the deal capacity? |
| 2 | How many meters for the dredge depth? |
| 3 | In the dredging raw ore, the sand & stone percentage? stone's size in mm? |
| 4 | the gold particle size in mm? |
| 5 | if you will require the diesel generator? and any special requirement for the generator brand? |
