Product Details:
|
| Model NO.: | QHSD-4 | Slot Type: | CTD |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1year | After-sales Service: | Lifelong |
| Hull Dimension: | 23m-49m | Main Engine Power: | 75kw-240kw |
| Dredging Depth: | 8m-28m | Bucket Quantity: | 128PCS-176PCS |
| Chian Quantity: | 128PCS-176PCS | Total Power: | 95kw-260kw |
| Total Fuel Consumption: | 14L-39L | Main Engine Brand: | Cummins Weichai |
| Total Length: | 44m | Total Width: | 7.8m |
| Height: | 2m | Total Weight: | 50ton |
| Power: | Generator Sets | Application: | River Gold And Diamond |
| Brand: | Set Sail | Transport Package: | Container |
| Specification: | Capacity 60m3-500m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 89051000 |
| Supply Ability: | 3000set/Year | Package Size: | 4400.00cm * 780.00cm * 200.00cm |
| Package Gross Weight: | 50000.000kg | Lead Time: | 40 Days (1 - 1 Sets) To Be Negotiated ( > 1 Sets) |
| Type: | Bucket Dredger | Power Type: | Electric |
| Cyclone Type: | Cast Iron Cyclone | Samples: | US$ 2000/Set 1 Set(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

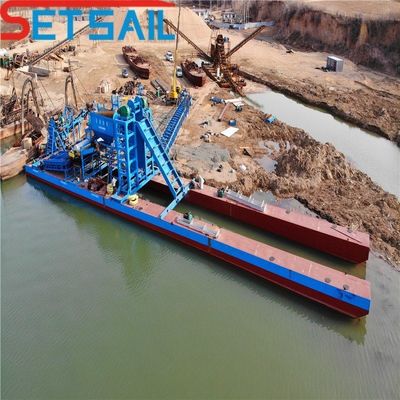

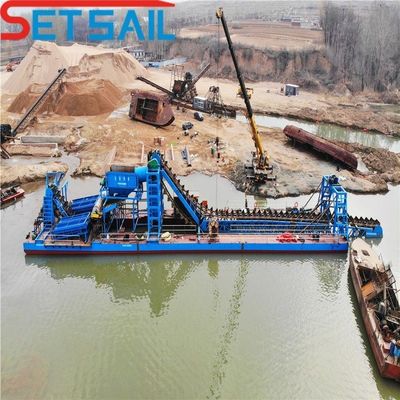

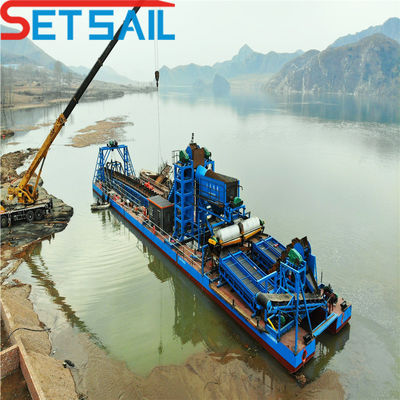

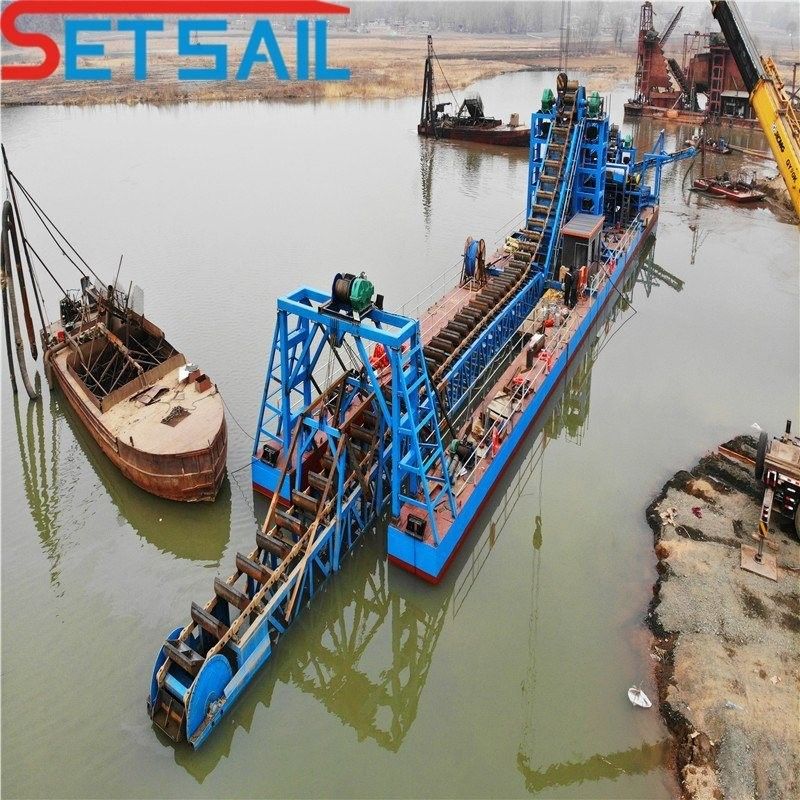

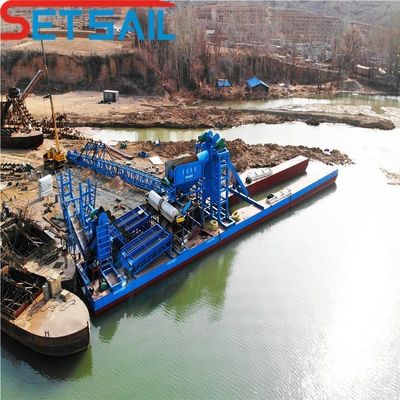

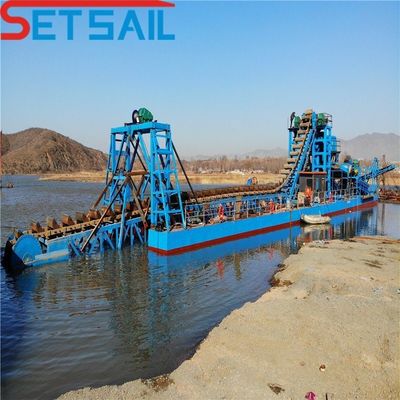

| Setsail bucket chain dredgers are designed for different soil conditions especial large rocks. With big dredging depth and low cost. this type of dredger is mostly suitable for projects like rivers lakes sand dredging. The dredger can complete the integrated procedures of sand excavation washing and separating so as fine sand will be got. Dredging work is done by the continuous running of buckets amounted on the bucket ladder. chain bucket dredger can combine with the mining machinery for river gold and diamond so on. |
| Type | QH-60 | QH-80 | QH-100 | QH-120 | QH-150 | QH-200 | QH-300 | QH-400 |
| Total length | 23m | 25m | 28m | 35m | 36m | 42m | 46m | 49m |
| Main engine power | 75kw | 88kw | 105kw | 115kw | 126kw | 147kw | 206kw | 240kw |
| Max.dredging depth | 8m | 8m | 10m | 13m | 16m | 20m | 25m | 28m |
| Max. capacity | 60m3 | 80m3 | 100m3 | 120m3 | 150m3 | 200m3 | 300m3 | 400m3 |
| Total power | 95kw | 108kw | 125kw | 135kw | 145kw | 167kw | 225kw | 260kw |
| Total fuel consumption | 14L/H | 16L/H | 19L/H | 20L/H | 22L/H | 25L/H | 34L/H | 39L/H |
| Bucket quantity | 64PCS | 64PCS | 64PCS | 64PCS | 64PCS | 88PCS | 88PCS | 88PCS |
| ★ All these parameters are just for reference. We can provide the machine according to your different requirements. | ||||||||
| 1. Highly cost efficiency | 2.High efficiency and energy saving |
| 3. Long service life and warrant | 4. Easy transportation |
| 5.Outstanding durability reliable performance | 6.High quality |
| 7.Easy maintence | 8. Service training |
| 1 | - Quality Control: |
| 2 | - Modular Structure: |
| 3 | Environmental Concept: The cabin adopts new environmental protection material. which has the advantages of sound insulation and heat preservation and can effectively improve the working environment. |
| 4 | - Short Delivery Time Setsail will prepare various main components of dredgers in the workshop like diesel engine. dredging pump and cutter head. which can greatly shorten delivery time. |
7.Why choose Set Sail chain bucket mining dredger : | Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
| We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc. |
