Product Details:
|
| Model NO.: | QHLMM-12 | Material: | Carbon Steel |
|---|---|---|---|
| Material Feature: | Oil Resistant | Energy Saving: | Energy Saving |
| Warranty: | 1 Year | Color: | Multi Color |
| Customized: | Customized | Condition: | New |
| After-sales Service: | 1 Year | Hooper Power: | 10kw -50kw |
| Lifting Power: | 2kw-10kw | Drum Scrren Power: | 10kw-100kw |
| Water Pump Water Flow: | 200m3-5000m3 | Centrifuge Power: | 7.5kw-50kw |
| Total Generator Power: | 120kw-2000kw | Fule Consumption: | 18L-500L |
| Generator Brand: | Cummis . Weichai | Capacity: | 100m3-500m3 |
| Diesel Engine: | Cummins | Generator Sets: | Stanford |
| Water Pump: | Boshan | Tailing Processing: | Belt Coveryor |
| Product Brand: | Set Sail | Product Name: | Alluvial Sand Gold Machinery |
| Transport Package: | Canvas And Container | Specification: | Max. Capacity 1000ton Per Hour |
| Trademark: | Set Sail | Origin: | Qingzhou City Shandong Province China |
| HS Code: | 8474100000 | Supply Ability: | 10000set/Year |
| Package Size: | 800.00cm * 300.00cm * 200.00cm | Package Gross Weight: | 12000.000kg |
| Type: | Gravity Separator | Voltage: | 380V |
| Weight: | >10T | Samples: | US$ 1000/Piece 1 Piece(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

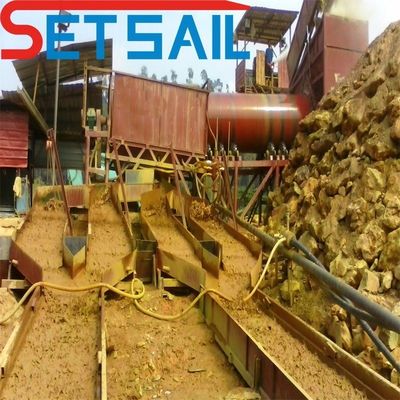

| Land mining machinery is widely used for land gold .diamond and iron sand so on , according to the different material and proportion to choose the fine selection device . general seletion device : agitate chute with fixed chute can get the high recovery rate. centrifuge is the new technecal for gold . we will according to the different terrain to choose the most suitable device . jig is mainly selection way for land diamond . we can combine these selection device together to get the all kinds of material |
| 1 | Agitate chute: this structure improve the the sectetion gold rate . can reach the 70%-80% . it is used conbine with the fixed chute (2 pictures) can reach the over 90%. power form the electric moter througt the transfer device to get the agitate . |

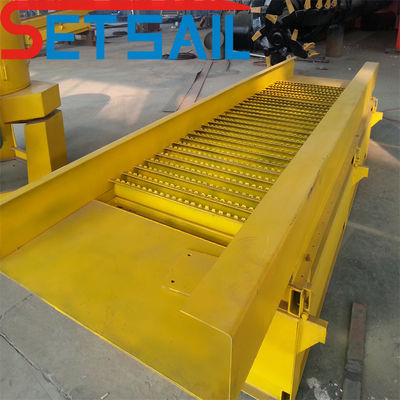

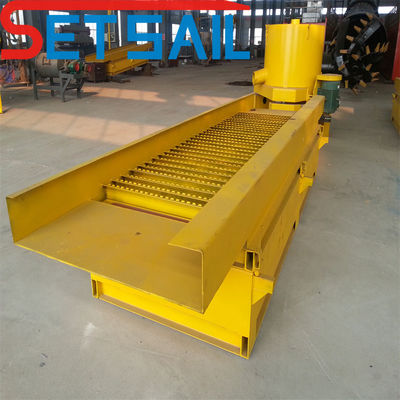

| 2 | Fixed gold chute . it is always used with agitate gold chute . centrifuge and jig. can get the gold and diamond . it assist the jig and centrifuge to improve the seclection rate . |
| 3 | Centrifuge : it is used for land and river gold .centrifuge make the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading. |
| 4 | Jig: it is used for the land and river diamond . according to the material different proportion to get the damond .The pulsation curve of a jig is a sawtooth shape, with fast upward flow and slow downward flow.The whole bed rises slowly and decreases slowly, the effective loosening time is long, the screen surface handling capacity of the unit increases significantly, the lower limit of particle size recovery is reduced, and the feeding material with too small particle size saves a lot. |
| Specifications of Professional Diamond Mining Equipment Machine on sale | |||
| Model | Set Sail 50 | Set Sail 100 | Set Sail 200 |
| Parameters | |||
| Size /mm | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
| Capacity | 50-80 tph | 100-150 tph | 200-300 tph |
| Power | 50 kw | 120 kw | 150 kw |
| Feeder Hopper /mm | 2000*2200 | 3000*2200 | 3800*3000 |
| Clay Scrubber /mm | φ1000*2000 | φ1200*3000 | φ1500*3000 |
| Trommel Screen /mm | φ1200*3000 | φ1500*3500 | φ1800*4000 |
| Sluice Box | 2 sets | 3 sets | 4 sets |
| Water Supply /m³ | 120 m³ | 240 m³ | 370 m³ |
| Wheels | 6 wheels | 10 wheels | 10 wheels |
| Recovery Rate | 98% | 98% | 98% |
| 1 | 30 years' dredger manufacture workmanship. especially large water flow dredger field . |
| 2 | Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger. |
| 3 | Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service . |
| 4 | 6 manufacture shops .R&D center, testing pool. |
| 5 | Large production. ISO 9001 2015 quality system. CE certification so on . |
| 6 | Presences more than 40 countries. |
