Product Details:
|
| Model NO.: | LM-4 | Material: | Carbon Steel |
|---|---|---|---|
| Material Feature: | Oil Resistant | Energy Saving: | Energy Saving |
| Warranty: | 1 Year | Color: | Multi Color |
| Customized: | Customized | Condition: | New |
| After-sales Service: | 1 Year | Hooper Power: | 10kw -50kw |
| Lifting Power: | 2kw-10kw | Drum Scrren Power: | 10kw-100kw |
| Water Pump Water Flow: | 200m3-5000m3 | Centrifuge Power: | 7.5kw-50kw |
| Total Generator Power: | 120kw-2000kw | Fule Consumption: | 18L-500L |
| Generator Brand: | Cummis . Weichai | Capacity: | 100m3-500m3 |
| Transport Package: | Canvas And Container | Specification: | Max. Capacity 1000ton Per Hour |
| Trademark: | Set Sail | Origin: | Qingzhou City Shandong Province China |
| HS Code: | 8474100000 | Supply Ability: | 10000set/Year |
| Package Size: | 1180.00cm * 500.00cm * 200.00cm | Package Gross Weight: | 20000.000kg |
| Lead Time: | 20 Days (1 - 1 Sets) To Be Negotiated ( > 1 Sets) | Type: | Gravity Separator |
| Voltage: | 380V | Weight: | >10T |
| Samples: | US$ 1000/Piece 1 Piece(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

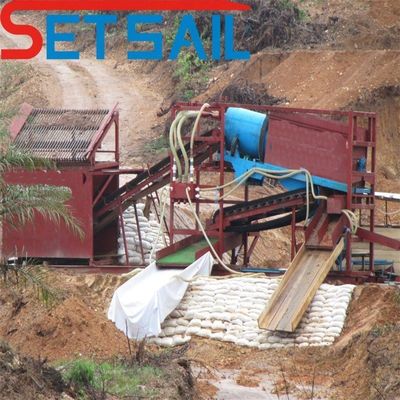

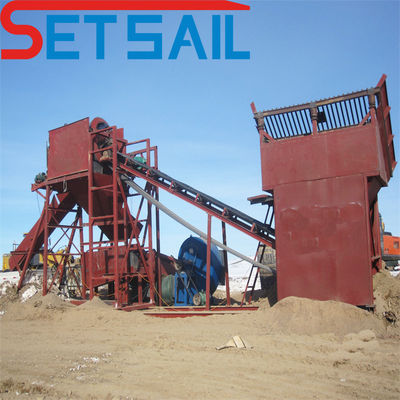

| Land mining machinery is widely used for land gold .diamond and iron sand so on , according to the different material and proportion to choose the fine selection device . general seletion device : agitate chute with fixed chute can get the high recovery rate. centrifuge is the new technecal for gold . we will according to the different terrain to choose the most suitable device . jig is mainly selection way for land diamond . we can combine these selection device together to get the all kinds of material |
| land Material (gold .diamond .iron powder so on ) is feed into the storage with grille by excavator and loader,high pressure water released and wash the mineral by water pipe at the around storage,then,mixture mineral by forward into the drum screen .we are according to the matrial to choose the which kind of drum .(normally drum screen and agitation screen )according to the drum net mess to get the difference matierial .This finer material passes through the screen openings while the large material tumbles towards its eventually exit at the real of the drum.After that,the fine mineral and water go through the sluice bow which is consist with gold grass mat.The no use mineral are washed out and the gold are catched by the gold grass mat. the mixture material is collected by the mining machinery( agiatation chute .jigger . concentration so on ) . so it is finished roughting . |

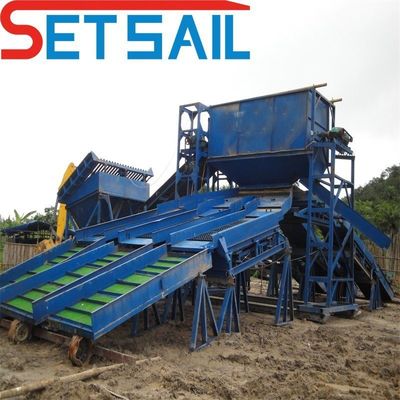

| 1 | Agitate chute: this structure improve the the sectetion gold rate . can reach the 70%-80% . it is used conbine with the fixed chute (2 pictures) can reach the over 90%. power form the electric moter througt the transfer device to get the agitate . |
| 2 | Fixed gold chute . it is always used with agitate gold chute . centrifuge and jig. can get the gold and diamond . it assist the jig and centrifuge to improve the seclection rate . |
| 3 | Centrifuge : it is used for land and river gold .centrifuge make the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading. |
| 4 | Jig: it is used for the land and river diamond . according to the material different proportion to get the damond .The pulsation curve of a jig is a sawtooth shape, with fast upward flow and slow downward flow.The whole bed rises slowly and decreases slowly, the effective loosening time is long, the screen surface handling capacity of the unit increases significantly, the lower limit of particle size recovery is reduced, and the feeding material with too small particle size saves a lot. |
| 1 | simple structure . portable machiner conbine togehter |
| 2 | This machiner can elect gold and diamond in the same time |
| 3 | High recovery gold and diamond ratio. |
| 4 | Low failure . High capacity . |
| 1 | we can send the export enginer to the site before doing the design . help the customers get the accurate design and solution |
| 2 | we can let the customers what know hwo well the equipment by the video |
| 3 | we can provide the 1-2 warrant and longlife technology support |
| 4 | Testing product before delivery product |
| 5 | Assist customers in formulating construction plans |
| 6 | Free guide to equipment installation and debugging |
| 7 | Train technical staff for customers |
| 8 | we can send the engginer to the aboard for installation and free training wrokers |
