Product Details:
|
| Model NO.: | LM-30 | Material: | Carbon Steel |
|---|---|---|---|
| Material Feature: | Oil Resistant | Energy Saving: | Energy Saving |
| Warranty: | 1 Year | Color: | Multi Color |
| Customized: | Customized | Condition: | New |
| After-sales Service: | Lifelong | Hooper Power: | 10kw -50kw |
| Lifting Power: | 2kw-10kw | Drum Scrren Power: | 10kw-100kw |
| Water Pump Water Flow: | 200m3-5000m3 | Centrifuge Power: | 7.5kw-50kw |
| Total Generator Power: | 120kw-2000kw | Fule Consumption: | 18L-500L |
| Generator Brand: | Cummis . Weichai | Capacity: | 100m3-500m3 |
| Transport Package: | Canvas And Container | Specification: | Max. Capacity 1000ton Per Hour |
| Trademark: | Set Sail | Origin: | Qingzhou City Shandong Province China |
| HS Code: | 8474100000 | Supply Ability: | 10000set/Year |
| Package Size: | 1180.00cm * 300.00cm * 150.00cm | Package Gross Weight: | 12000.000kg |
| Type: | Gravity Separator | Voltage: | 380V |
| Weight: | >10T | Samples: | US$ 1000/Piece 1 Piece(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| land mining machinery is widly used for the land mining machinery . in particular useding for the gold and diamond . according to the different material to choose the feeding wasy . normally the hopper with grille to stop the unqualified material out . it equipped the agitation chute with fixed gold carpet . jigger machinery and centrifugal machinery so on can reach the 98% election mining rate the trailing can reclemation and sale All processing power from the generator sets or electric power . all production processing can be combined flexibly . all processing is consist of feeding system .screening system . water supply system.iielection mining system . according to the different mining to match the didderent election mining device and tailing processing system . generally electric machine : agitation chute with fixed chute . jigging and centrifuge so on .meantime we can according to the customer's inquirement to match the refine device . |
| land Material (gold .diamond .iron powder so on ) is feed into the storage with grille by excavator and loader,high pressure water released and wash the mineral by water pipe at the around storage,then,mixture mineral by forward into the drum screen .we are according to the matrial to choose the which kind of drum .(normally drum screen and agitation screen )according to the drum net mess to get the difference matierial .This finer material passes through the screen openings while the large material tumbles towards its eventually exit at the real of the drum.After that,the fine mineral and water go through the sluice bow which is consist with gold grass mat.The no use mineral are washed out and the gold are catched by the gold grass mat. the mixture material is collected by the mining machinery( agiatation chute .jigger . concentration so on ) . so it is finished roughting . |
| Land mining machiery application : | |
| 1 | Land gold and tin |
| 2 | Land diamond |
| 3 | Land gold and diamond |

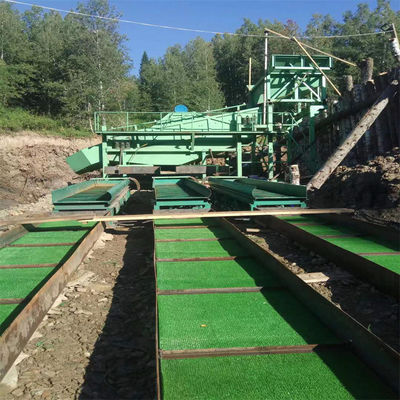

| 1 | Agitate chute: this structure improve the the sectetion gold rate . can reach the 70%-80% . it is used conbine with the fixed chute (2 pictures) can reach the over 90%. power form the electric moter througt the transfer device to get the agitate . |
| 2 | Fixed gold chute . it is always used with agitate gold chute . centrifuge and jig. can get the gold and diamond . it assist the jig and centrifuge to improve the seclection rate . |
| 3 | Centrifuge : it is used for land and river gold .centrifuge make the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading. |
| 4 | Jig: it is used for the land and river diamond . according to the material different proportion to get the damond .The pulsation curve of a jig is a sawtooth shape, with fast upward flow and slow downward flow.The whole bed rises slowly and decreases slowly, the effective loosening time is long, the screen surface handling capacity of the unit increases significantly, the lower limit of particle size recovery is reduced, and the feeding material with too small particle size saves a lot. |
| 1 | 30 years' dredger manufacture workmanship. especially large water flow dredger field . |
| 2 | Fortune 500 Company chosen supplier .Germany . American brand as the main conponents on my dredger. |
| 3 | Enterprise credit rating AAA. Enterprise credit can ensure the product quality and all service . |
| 4 | 6 manufacture shops .R&D center, testing pool. |
| 5 | Large production. ISO 9001 2015 quality system. CE certification so on . |
| 6 | Presences more than 40 countries. |
