Product Details:
|
| Model NO.: | QHWB-21 | Load Capacity: | >1000t |
|---|---|---|---|
| Condition: | New | Customized: | Customized |
| Usage: | Rescue Tugboat, Transport Tugboat, Harbor Tug, Fishing Working | Type: | Marine Tugboat |
| Hull Length Dimension: | 12m-25m | Plate Thickness: | 8mm-15mm |
| Deck Crean Lift: | 1.5t-5t | Speed: | 15kn/H-20kn/H |
| Main Engine Brand: | Cummins | Propeller Power: | 300HP-500HP |
| Main Engine Quantity: | 2PCS | Generator Power: | 12kw-50kw |
| Total Fuel Consumption: | 33L-55L | Gearbox Brand: | Hangchi |
| Gearbox Quantity: | 2PCS | Anchor Quantity And Weight: | 70kg X2 |
| Transport Package: | Container | Specification: | Volume In Bulk 210m3-500m3 |
| Trademark: | Set Sail | Origin: | China |
| HS Code: | 89051000 | Supply Ability: | 5000set/Year |
| After-sales Service: | 1year | Warranty: | Lifelong |
| Hull Material: | Alloy Steel | Samples: | US$ 5000/Set 1 Set(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

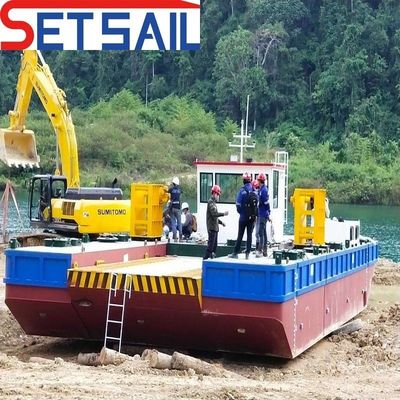

| Setsail multifuction work boat can cooperate with different kinds of dredgers to do the dredgering projects and offshore project. Setsail work boat could be competent of all kinds of projects because of its convenience, flexibility and low cost. |
| 1 | Pushing and tugging dredgers and other dredging equipment. |
| 2 | Transporting the workers and other materials. |
| 3 | Anchor operation. |
| 4 | Repairing cutter. bucket wheel. dredging pipes and other parts. |
| 5 | Transporting fuel oil and fresh water for the dredging site. |
| 6 | Dredging pipeline operation. |
| 7 | Pushing. tugging. loading and unloading cargo barges. |
| Model | QH-180 | QH-210 | QH-280 | QH-340 | QH-420 |
| Hull material thickness | 8mm/8mm/8mm | 8mm/8mm/10mm | 10mm/8mm/10mm | 10mm/8mm/10mm | 12mm/10mm/12mm |
| Draught | 1.2m | 1.3m | 1.5m | 1.8m | 2.0m |
| Displacement | 60T | 80T | 130T | 200T | 270T |
| valume in bulk | 180m3 | 210m3 | 280m3 | 340m3 | 420m3 |
| Deck crane lift | 1T | 1.5T | 2T | 2.5T | 3T |
| Speed | 15km/h | 15km/h | 15km/h | 20km/h | 20km/h |
| Engine power | 240HP | 300HP | 376HP | 410HP | 500HP |
| Generator power | 12kw | 12kw | 30kw | 30kw | 30kw |
| fuel oil consumption | 27L/H | 33L/H | 41L/H | 45L/H | 55L/H |
| 1 | High efficience. large output and long distance of engine- main engine brand is Weichai.Cummins. |
| 2 | Very simple and fast assembly and dis-assembly afloat or onshore simple operation ,easy to control. |
| 3 | Highly efficient fuel consumption and minimum overall operational costs |
| 4 | Operation by one man from spacious and low noise operating cabin.Controls and instrucments mounted in ergonomic dash board. |
Smaller size dredger will be transported by container and engineers will go to job site to assembly testing and training.Bigger size dredger with diapatchable constructure will be transported by trailer truck on land and by bulk cargo ship by sea. |
| 1 | Profestional people serve the technical consult. |
| 2 | All the muti-function service boat can be coustomed. |
| 3 | We are factory which can provide the higher quality and lower price. |
| 4 | Offering spare parts at a discounted price. |
| 5 | Responsible Sales team design team manufacture team available 24/7 to best serve clients. |
| 6 | Free repair if quality problems happen. |
| 7 | Provide professional service and providesolution in a timely manner. |
| 8 | Free field Installation commissioning training and and free product drawings. |
