Product Details:
|
| Model NO.: | QHSM-2 | Speed Of Screw: | 16rpm |
|---|---|---|---|
| Motor Type: | AC Motor | Motor Power: | 18.5KW |
| Rotation Speed: | 0.8-1.2 R/min | Wheel Bucket Diameter: | 2200mm |
| Screw Diameter: | 1000mm | Warranty: | 1 Year |
| After-sales Service: | Longlife | Processing Capacity: | 50m3-500m3/H |
| Length: | 15m-30m | Main Reducer Model: | 650 |
| Acessory Reducer Size: | 250 | Max. Water Consumption: | 200m3 |
| Total Power: | 55kw-200kw | Transport Package: | Canvas |
| Specification: | Max. Capacity 500m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8474100000 |
| Supply Ability: | 10000set/Year | Type: | Wheel Sand Washing Machine |
| Capacity: | 200-300t/h | Water Consumption: | 40-300t/h |
| Samples: | US$ 4000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

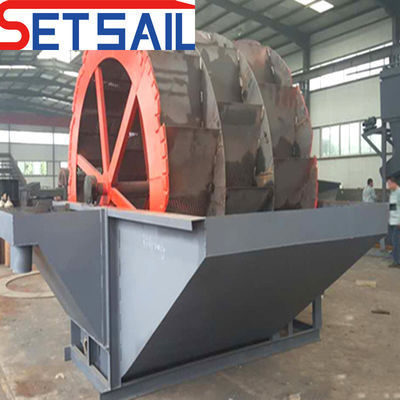

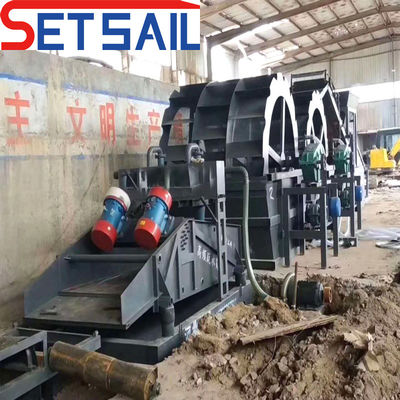

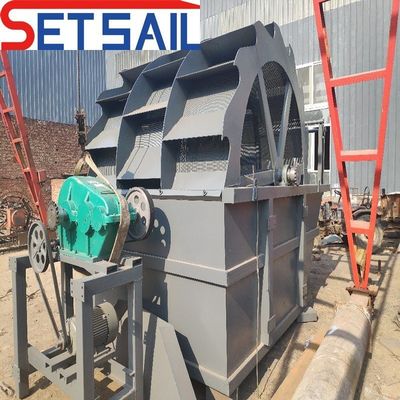

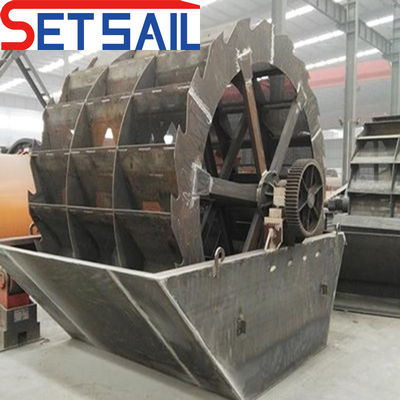

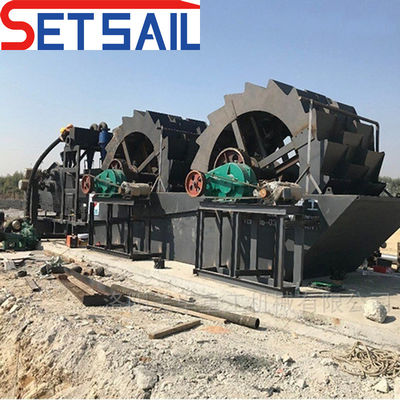

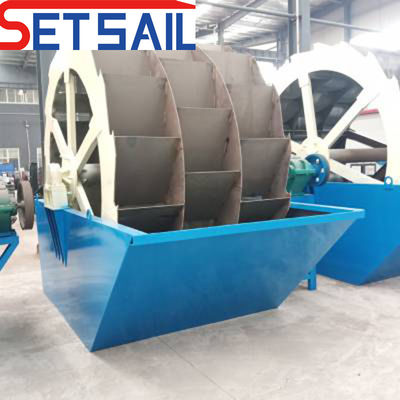

| Wheel sand washing machine (stone washing machine )driven by the motor and reducer keep the impeller in the water tank making the circular to get rid of silt and others .after sand is cleared through the mesh in the wheel to into the belt converyor to the destination . if the sand so dirty we use the double water wheel washing wheel sand washing machine. wheel sand washing machine combins with crusher and drum scrren so on equipment to make the complete the production line |
| Basic Parameters of Sand Washer | ||||
| Type | QHSWM12-26 | QHSWM15-28 | QHSWM18-30 | QHSWM20-30 |
| Dimension(L*W*H) | 3400x2300x2700 | 3600x2800x2900 | 3800x3100x3100 | 3800x3400x3100 |
| Water wheel dimension | φ2600x1200double row | φ2800x1500double | φ3000x1800triplex | φ3000x2000triplex |
| Material | 8mm | 8mm | 10mm | 10mm |
| Feeding hopper dimension | 3400x1300 | 3600x1600 | 3800x1900 | 3800x2100 |
| Material | 4mm | 4mm | 5mm | 5mm |
| Working capacity m³/h | 50-60 | 80-100 | 120-150 | 150-180 |
| Max.approval grain size(mm) | ≤12 | ≤12 | ≤12 | ≤12 |
| Main Power(kw) | 7.5kw-4 | 11kw-4 | 15kw-4 | 18.5kw-4 |
| Submersible pump | ||||
| Power | 5.5kw | 7.5kw | 7.5kw | 5.5kw x2 |
| Clean Water Flow m³/h | 60 | 65 | 65 | 60 |
| Conveyor | ||||
| Length mm | 10000 | 10000 | 10000 | 10000 |
| Belt width mm | 600 | 800 | 1000 | 1000 |
| Frame material | 12#channel steel | 12#channel steel | 12#channel steel | 14#channel steel |
| Electromotor kw | 5.5 | 7.5 | 11 | 15 |
| 1 | Very simple and fast assembly and dis-assembly. simple operation .easy to control. |
| 2 | Self propulsion system. can be propulsed in place when moved. |
| 3 | High efficience. large output and long distance of pump.Pumping depth reaches up to 20-30m underwater |
| 4 | Hull consists of multiple pontoons connected by proven coupling system. |
| 5 | Highly efficient fuel consumption and minimum overall operational costs |
| 6 | Good access to all parts.especially the dredge pump wearing parts.Fresh water cooling system |
| 7 | OEM. ODM. ISO .CE .customization are available |
| Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| Factory has manufacture experience more than 20 years. |
| More than 50 certificated engineers and technicians. |
| We have certification and patent more than 50 item. It contains ISO CE etc. |
| Set Sail dredger is sold more than 80 countries . |
|
