Product Details:
|
| Model NO.: | QHSS-25 | Customized: | Customized |
|---|---|---|---|
| Max Pay Load: | <5000ton | Self Propelled: | Yes |
| Type: | Sand Transportation Barge | Condition: | New |
| Length (Feet): | 151′ - 250′ | Power: | Diesel Engine Power |
| Max. Length: | 50m | Draft: | 2.4m |
| Max. Loading Capacity: | 500t | Main Engine Brand: | Cummins . Weichai |
| Main Engine Power: | 100kw-500kw | Main Engine Quantity: | 1-2 Set |
| Main Engine Speed: | 1500-2000 RMB | Ger Box Size: | 135 |
| Ger Box Quantity: | 1-2 Set | Speed: | 12kn/H |
| Propulsion Power: | 110kw-300kw | Converyor Power: | 11kw-20kw |
| Generator Power: | 33kw-100kw | Displacement: | 155t-600t |
| Transport Package: | Canvas. Container | Specification: | Maxmum Loading Capacity 500t |
| Trademark: | Set Sail | Origin: | Qingzhou City Shandong Province China |
| HS Code: | 89051000 | Supply Ability: | 10000set/Year |
| After-sales Service: | 1 Year | Warranty: | Lifelong |
| Hull Material: | Steel | Samples: | US$ 2000/Set 1 Set(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

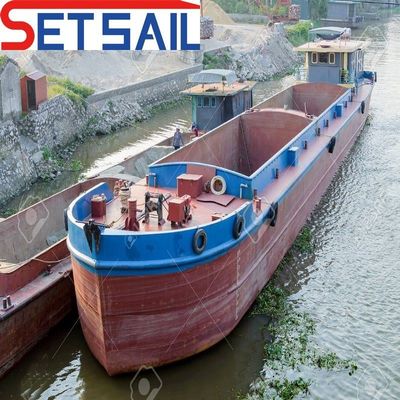

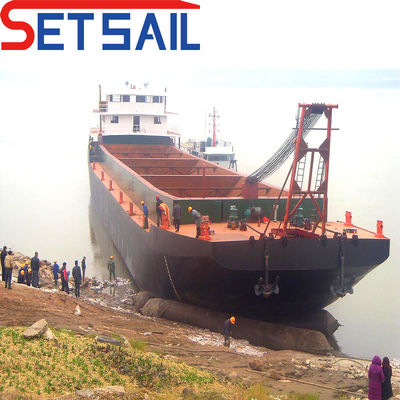

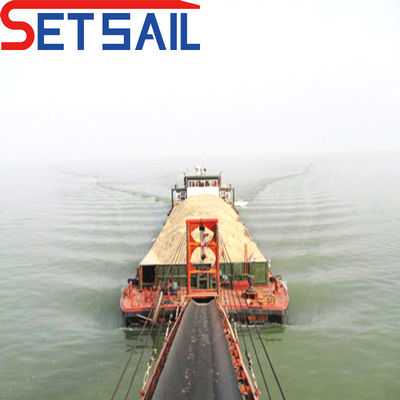

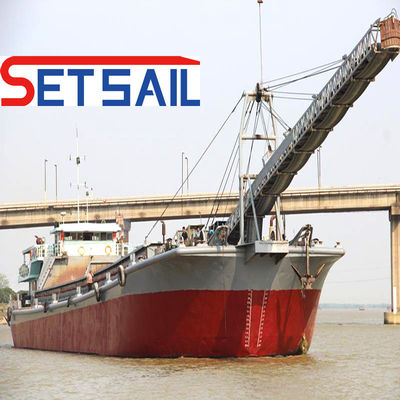

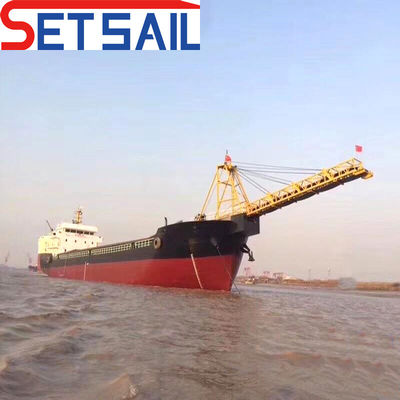

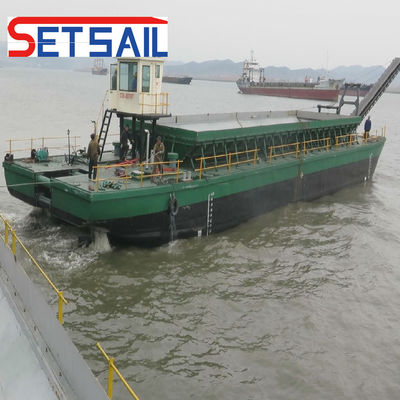

| Setsail sand transportation ship is self -propelled and self -unloading equipment . floating body can be divided into the integral and separation structure . it is equiped with propulsion system storage silo system delivery rack landing gear. postion anchor device . conveying device operation room . |
| working process: digging sand -conveying -Transportaion -unloading . positioning wich and conveying lifting wich are deived by electric motor in the sand transportation ship . Digging sand device get the original sand . then convey the sand into the storage and trandported to the destnation . use the belt conveyor transported the sand to the land , then into the next step of gravel sorting . crushing washing grading |
| 1 | All steel plate is according to the CCSB standard to made |
| 2 | Proplusion system is from Cummins diesel engine . |
| 3 | Automatic control the deck crane anchor soon equipment |
| 4 | Mathching the GPS monitor system so on . |
| 5 | We can offer the full automatic and sime automatic transportaion system |
| 1 | Easily operation . one worker can handle all . |
| 2 | All kinds of filter for hydraulic oil and water to get the fresh water and oil for cooling and hydraulic system |
| 3 | Each mainly device are tested individually and then fully test the whole in the testing pool |
| 4 | Short delivery time . Normally hot dredger we have in stock . others normally is 2-4 month |
| 5 | All spare parts our factory always have in stock . |
| 6 | Long after sales service and foreign service can available. |
7. Packing and shipment : | Are you factory or trade company ? | I am factory |
| How long is your production period? | In stock for basic size customized within 30 days |
| How is the warrant ? | Normally 1 year or 2 year |
| How is your after sales service ? | Professional team for customers in time |
| How is your delivery ? | Safety and quickly transportation |
| How to assemble and test the device | Send the professional engineer to the abroad until the device smooth |
| How is the payment ? | T/T L/C or others |
