Product Details:
|
| Model NO.: | Harvester-34 | Automation: | Automatic |
|---|---|---|---|
| Screw: | Multi-Screw | Treatment: | Chemical Treatment |
| Total Length: | 7.2m-25m | Hull Width: | 3m-7m |
| Totla Height: | 3m-6m | Draft: | 0.55m-2m |
| Cutting Width: | 3m-6m | Cutting Depth: | 1.2m-2m |
| Max. Speed: | 12kn/H | Working Speed: | 3.5-5kn/H |
| Loading Capacity: | 7.5-50m3 | Endurance Ability: | 24h |
| Type Of Drive: | Paddle Wheel Or Propeller | Passenger: | 1-2 |
| Product Brand: | Set Sail | Power: | Diesel Engine Or Electric |
| Application: | River Weed , Reed Hyacinth Floating Waste | Transport Package: | Canvas |
| Specification: | Max. Loading Capacity 50m3 | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 8467890000 |
| Supply Ability: | 10000set/Year | After-sales Service: | 1 Year |
| Warranty: | Lifelong | Condition: | New |
| Samples: | US$ 4000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

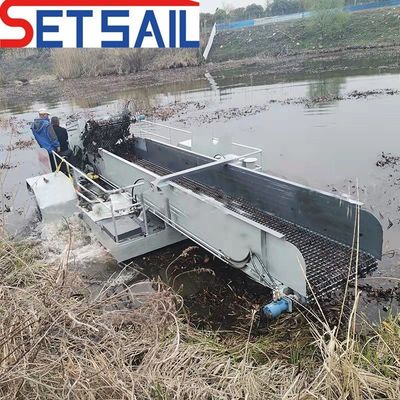

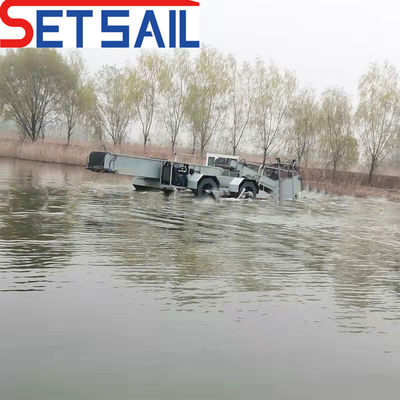

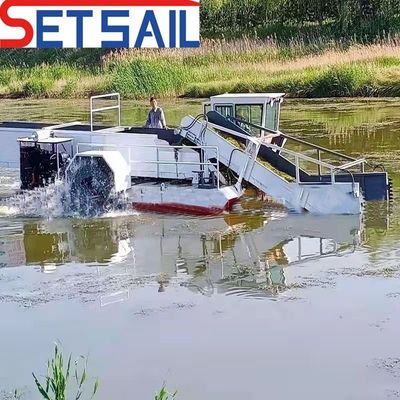

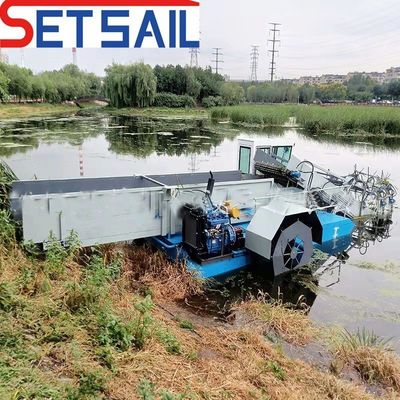

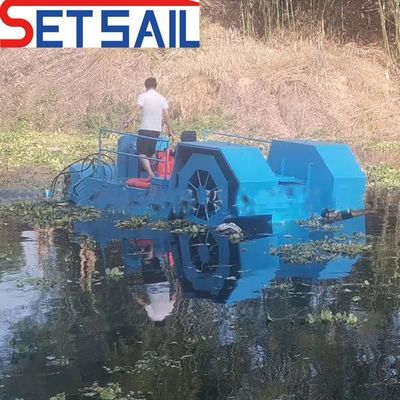

| 1 | The vessel with single plate and single deck .the structure of the whole welding . it is drived by the double paddle wheel. |
| 2 | This vessel can first collect the water hyacinth and water lettuce ,High efficiency to collet .reduce volume and break the water hyacinth. |
| 3 | This vessel has double cabins structure the cabin in frount is the collection chamber . the babin after is the storehouse and conveying .the cabin in front and after adopts stainless stell mess belt of Great wall ,transport smoothly ,ensure the working smoothly the water hyacinth from the after cabine is transported to the port and trash truck . |
| 4 | This vessel is full automatic hydraulic machinery just one person can achieve the automic control operation of the vessel |
| 1 | Green and environmental protection |
| 2 | High efficiency low cost |
| 3 | Outstanding durable reliable performance |
| 4 | High strength transportation |
| 5 | Long service and warrant |
| 6 | High quatilty and strict testing |
| 7 | Energy -efficient easy maintenance |
| 8 | High Cost performance |
| Type | Model | C-60 | C-75 | C-90 |
| Hull size (L*W*H) | Hull size | 7.2m | 8.8m | 9.6m |
| Total length | 12.5m | 14.6m | 17.5m | |
| Hull width | 3.0m | 3.2m | 3.4m | |
| Total width | 4.0m | 4.5m | 4.8m | |
| Hull height | 1.1m | 1.1m | 1.16m | |
| Draught | 0.55m-0.75m | 0.6m-0.75m | 0.6m-0.75m | |
| Total height | 2.9m | 2.9m | 4.5m | |
| Working capacity | Cutting width | 3.1m | 3.5m | 3.8m |
| Cutting depth | 1.2m | 1.2m | 1.5m | |
| Carrying capacity | 7.5m3 | 15m3 | 22m3 | |
| Max. Speed | 6km/h | 7km/h | 8km/h | |
| Work speed | 3.5km/h | 3.5km/h | 3.5km/h | |
| Power | 60kw | 75kw | 90kw | |
| Endurance ability | 24h | 24h | 24h | |
| Type of drive Paddle wheel or propeller | ||||
| Passenger | 1-2 | 1-2 | 1-2 | |
| 1 | Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| 2 | Factory has manufacture experience more than 20 years. |
| 3 | More than 50 certificated engineers and technicians. |
| 4 | We have certification and patent more than 50 item. It contains ISO CE etc. |
| 5 | Set Sail dredger is sold more than 80 countries . |
| 1 | Professional team offer the profession service throughout . |
| 2 | Professional salesmen and engineer can provide the precise design and timely and efficiency communication. |
| 3 | All dredging machinery support our customers inspection . we can offer the passed product All production parts must through the strict testing . |
| 4 | Before production we can send the engineer to the on site to collect the information |
| 5 | Product is finished we can send the maintain team and engineer to abroad until the all dredger working normally . |
| 6 | We can free for training the local workers and all kinds of guidance . complex problems we can help customers to solve them when necessary we can send the engineer to foreign |
