Product Details:
|
| Model NO.: | QHCSP-1 | Slot Type: | CTN |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Reinforcement: | High Tensile Textile Cord | Application: | Industrial Discharge And Suction |
| Shape: | Round | Basic Size: | 8 Inch -34inch |
| Safely Factor: | 3:1 | Connection: | Flange With Bolt |
| Length: | Customized | Keyword: | Discharge Pipe |
| Diameter: | 200-950mm | Working Pressure: | 15bar-25bar |
| Standard: | ISO9001 CE | Featurte: | Flexible |
| Material: | HDPE | Product Brand: | Set Sail |
| Product Name: | HDPE Pipeline | Transport Package: | Canvas |
| Specification: | PE PIPE | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 4009210000 |
| Supply Ability: | 1000000 | Package Size: | 1180.00cm * 300.00cm * 300.00cm |
| Package Gross Weight: | 50.000kg | Type: | Cutter Suction Dredger Discharge Pipe |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Samples: | US$ 5/Meter 1 Meter(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| iameter MM | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa |
| Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | |
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 |

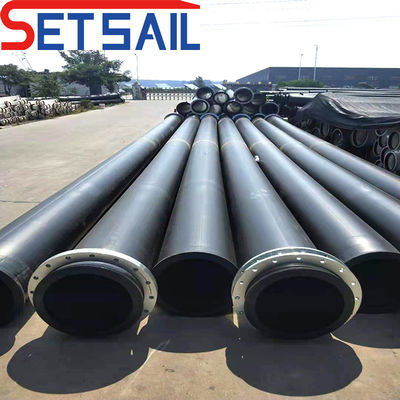

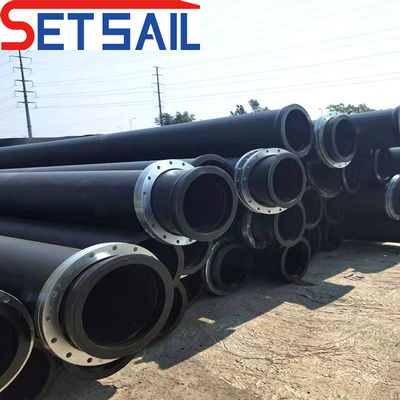

| 1 | Excellent wear resistance: PE wear resistance ranks first all plastic material. 66 times than nylon. 4 times than polytef. 9 times than rdinary polyethylene. even more than ordinary metals. is 7 times than that of carbon steel. and 10 times than stainless steel. greatly improved the service life. |
| 2 | Light weight. The density PE is about 0.94g / cm3. lower than other engineering plastics. 1/2 lighter than polytef. 1/7 light of the steel pipe. thus easy for installation. reducing the energy consumption. |
| 3 | The PE pipe has good flexibility. tension. strength and elasticity. It doesn't break after folding. extruding or internal or external force impact. The pipes are connected directly and can be bended in water. The bending degree of 4 to 8 pcs of pipes can be 360 degree. It is of good resistance of storm and waves. On land, the pipes can be connected even in area with 30 degree unevenness. |
| 4 | Self-lubricating. The friction of UHMWPE is very low and good self-lubricating performance, better than other metal pipelines. |
| 5 | Chemical resistance. PE has the high chemical stability and anti-corrosive ability in the certain range of temperature and concentration ability of various of corrosive media (acids. bases. salts) and organic media. |
| 6 | Lower water absorption. PE is almost non-absorbent. does not swell in water. much less absorbent than ylon. |
| 7 | Non-stick performance. The PE surface is very weak. almost equal to PTFE. thus no scale deposit at the pipe surface. |
| 8 | Excellent impact resistance. PE has the superb impact resistance. 2 times better than polycarbonate. Even in the ammonia temperature (-269 ºC). it can still maintain good impact resistance. which make it a wide application in cryogenic engineering field. |
| 9 | Good sanitation. PE meet the national health standard. even up to the standard of human-contact field. In addition. UHMWPE also has excellent ability of cracking-resistance. electrical insulation-resistance. fatigue- resistance. deformation-resistance under high temperature. γ-rays-resistance and other superb characteristics. |

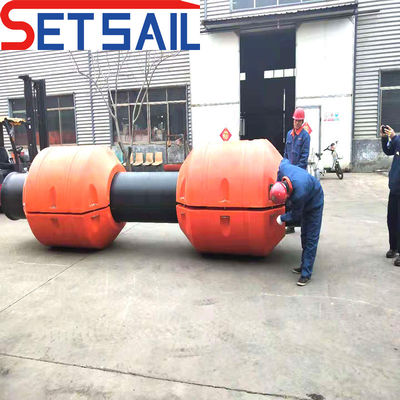

| The hull of floater frame is made from medium density polyethylene material with excellent flexibility. filled with high strength polyurethane foam inside. With reasonable structure and good performance. the floater becomes the ideal substitution of the traditional steel floater for the floating dredging pipes. The GI bolts and washers will be provided free. |
| 1 | The floating frame is equipped with shock and wave resistance. compact and reasonable structure. easy installation and excellent performance. Being floating materials for mud delivery pipeline on water. it becomes the first choice of dredging customers. |
| 2 | Good Toughness, strong environmental stress cracking resistance (ESCR). and being appropriate for offshore and lake construction. |
| 3 | Light weight, high resistance to wear, being convenient to install and transport, and low cost of transportation and transformation. |
| 4 | Resistance to corrosion and climate, 3 times more than steel buoy in terms of life span. |
| 5 | Easy, fast and flexible assembling diversified modeling. |
| 6 | Low price and cost performance is significantly better than that of steel buoy. |
| 7 | Being popular with customers because of its consistent quality. novel modeling reasonable price and excellent service. |
| 8 | Light weight, big Buoyancy. |
| 9 | Resistance to impact. and acid-proof alkaline. anti-corrosive etc |
| 10 | Very low absorption rate |
| 11 | Simple installation and low maintenance costs |
| 12 | Service temperature range-60°C-80°C |
| Hose I.D. (mm) | Length (Meter) | Working Pressure | Hose I.D. (mm) | Length (Meter) | Working Pressure | ||
| 200 | 1 | 5-30 bar | 600 | 1.5 | 5-30 bar | ||
| 250 | 1 | 5-30 bar | 650 | 1.6 | 5-30 bar | ||
| 300 | 1.2 | 5-30 bar | 700 | 1.7 | 5-30 bar | ||
| 350 | 1.2 | 5-30 bar | 750 | 1.8 | 5-30 bar | ||
| 400 | 1.2 | 5-30 bar | 800 | 1.8 | 5-30 bar | ||
| 450 | 1.3 | 5-30 bar | 850 | 2 | 5-30 bar | ||
| 500 | 1.5 | 5-30 bar | 900 | 2 | 5-30 bar | ||
| 550 | 1.5 | 5-30 bar | 1000 | 2.5 | 5-30 bar | ||
Other sizes of hose can be made upon request. | |||||||

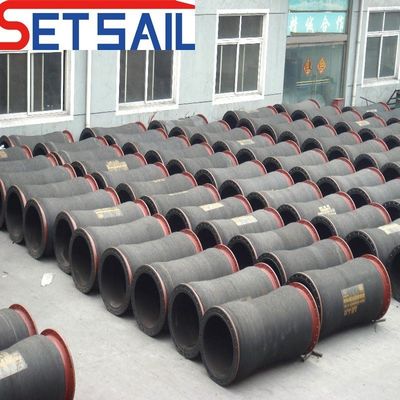

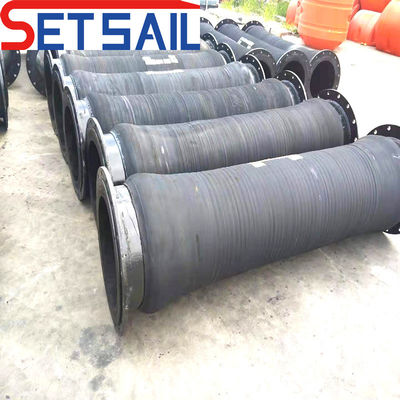

| Rubber hose : it is usesd between both pipe. it makes all pipe line can flexible to change derect in the working , each pipe use the flange to connect each other |

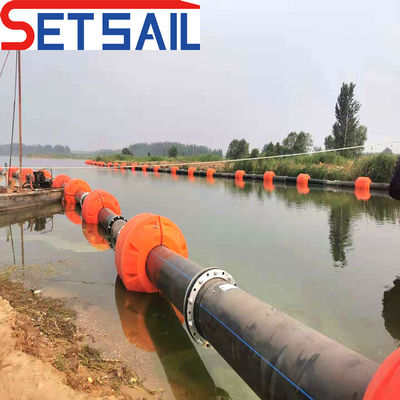

| Floating is uesd for making the all pipe float on the water . maintance easy working lifetime long |
