Product Details:
|
| Model NO.: | QHCSP-2 | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service: | Lifelong | Reinforcement: | High Tensile Textile Cord |
| Application: | Industrial Discharge And Suction | Shape: | Round |
| Basic Size: | 8 Inch -34inch | Safely Factor: | 3:1 |
| Connection: | Flange With Bolt | Length: | Customized |
| Keyword: | Discharge Pipe | Diameter: | 200-950mm |
| Working Pressure: | 15bar-25bar | Standard: | ISO9001 CE |
| Featurte: | Flexible | Transport Package: | Canvas |
| Specification: | PE PIPE | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 4009210000 |
| Supply Ability: | 1000000 | Type: | Cutter Suction Dredger Discharge Pipe |
| Power Type: | Diesel | Cyclone Type: | Hydrocyclone |
| Slot Type: | CTN | Customized: | Customized |
| Condition: | New | Samples: | US$ 5/Meter 1 Meter(Min.Order) | Request Samp |
| Customization: | Available | Customized Request |
| iameter MM | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa |
| Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | |
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 |
| 1 | Light weight. high resistance to wear. being convenient to install and transport. and low cost of transportation and transformation. |
| 2 | Easy. fast and flexible assembling diversified modeling. |
| 3 | Low price and cost performance is significantly better than that of steel buoy. |
| 4 | Good Toughness. strong environmental stress cracking resistance (ESCR). and being appropriate for offshore and lake construction. |
| 5 | Resistance to corrosion and climate. |
| 6 | Simple installation and low maintenance costs |
| 7 | service temperature range-60°C-80°C |
| 8 | very low absorption rate |

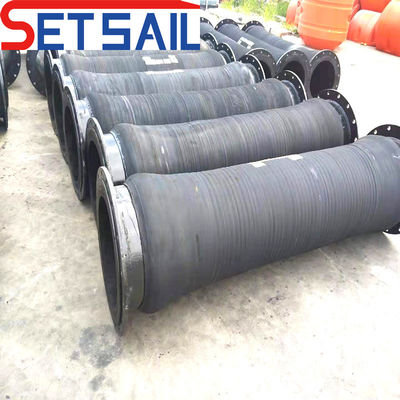

| Rubber hose : it is usesd between both pipe. it makes all pipe line can flexible to change derect in the working , each pipe use the flange to connect each other |

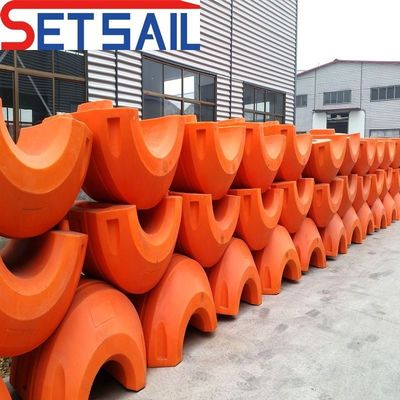

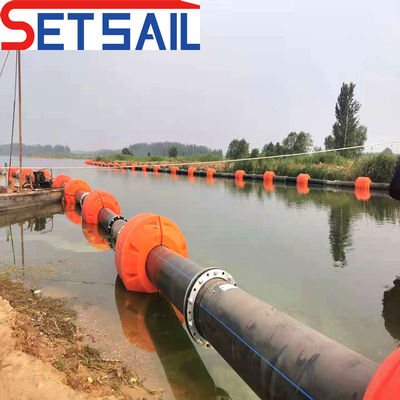

| Floating is uesd for making the all pipe float on the water . maintance easy working lifetime long |
