Product Details:
|
| Model NO.: | QHCSP-19 | Customized: | Customized |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| After-sales Service: | 2 Year | Reinforcement: | High Tensile Textile Cord |
| Application: | Industrial Discharge And Suction | Shape: | Round |
| Basic Size: | 8 Inch -34inch | Safely Factor: | 3:1 |
| Connection: | Flange With Bolt | Length: | Customized |
| Keyword: | Discharge Pipe | Diameter: | 200-950mm |
| Working Pressure: | 15bar-25bar | Standard: | ISO9001 CE |
| Featurte: | Flexible | Transport Package: | Canvas |
| Specification: | PE PIPE | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 4009210000 |
| Supply Ability: | 1000000 | Package Size: | 1180.00cm * 50.00cm * 50.00cm |
| Package Gross Weight: | 100.000kg | Power Type: | Diesel |
| Cyclone Type: | Hydrocyclone | Slot Type: | CTN |
| Samples: | US$ 5/Meter 1 Meter(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

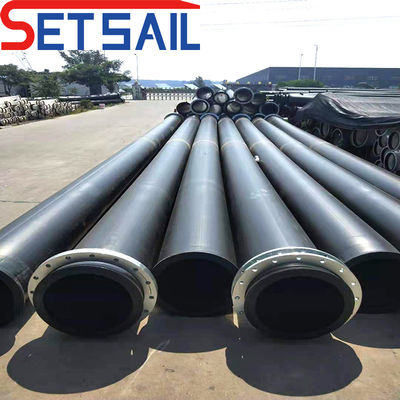

| iameter MM | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa |
| Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | |
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 |
| 1 | Light weight. high resistance to wear. being convenient to install and transport. and low cost of transportation and transformation. |
| 2 | Easy. fast and flexible assembling diversified modeling. |
| 3 | Low price and cost performance is significantly better than that of steel buoy. |
| 4 | Good Toughness. strong environmental stress cracking resistance (ESCR). and being appropriate for offshore and lake construction. |
| 5 | Resistance to corrosion and climate. |
| 6 | Simple installation and low maintenance costs |
| 7 | service temperature range-60°C-80°C |
| 8 | very low absorption rate |

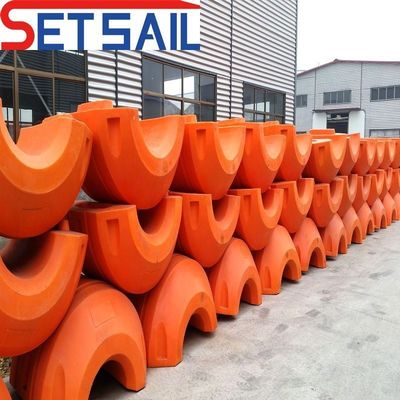

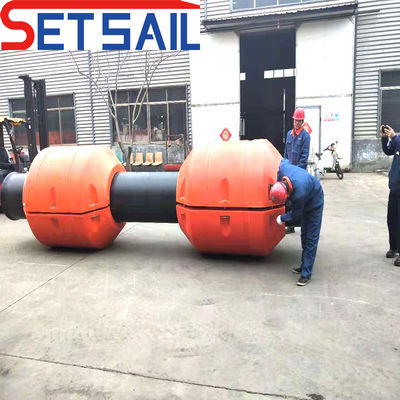

| The hull of floater frame is made from medium density polyethylene material with excellent flexibility. filled with high strength polyurethane foam inside. With reasonable structure and good performance. the floater becomes the ideal substitution of the traditional steel floater for the floating dredging pipes. The GI bolts and washers will be provided free. |
| 1 | The floating frame is equipped with shock and wave resistance. compact and reasonable structure. easy installation and excellent performance. Being floating materials for mud delivery pipeline on water. it becomes the first choice of dredging customers. |
| 2 | Good Toughness, strong environmental stress cracking resistance (ESCR). and being appropriate for offshore and lake construction. |
| 3 | Light weight, high resistance to wear, being convenient to install and transport, and low cost of transportation and transformation. |
| 4 | Resistance to corrosion and climate, 3 times more than steel buoy in terms of life span. |
| 5 | Easy, fast and flexible assembling diversified modeling. |
| 6 | Low price and cost performance is significantly better than that of steel buoy. |
| 7 | Being popular with customers because of its consistent quality. novel modeling reasonable price and excellent service. |
| 8 | Light weight, big Buoyancy. |
| 9 | Resistance to impact. and acid-proof alkaline. anti-corrosive etc |
| 10 | Very low absorption rate |
| 11 | Simple installation and low maintenance costs |
| 12 | Service temperature range-60°C-80°C |
| Hose I.D. (mm) | Length (Meter) | Working Pressure | Hose I.D. (mm) | Length (Meter) | Working Pressure | ||
| 200 | 1 | 5-30 bar | 600 | 1.5 | 5-30 bar | ||
| 250 | 1 | 5-30 bar | 650 | 1.6 | 5-30 bar | ||
| 300 | 1.2 | 5-30 bar | 700 | 1.7 | 5-30 bar | ||
| 350 | 1.2 | 5-30 bar | 750 | 1.8 | 5-30 bar | ||
| 400 | 1.2 | 5-30 bar | 800 | 1.8 | 5-30 bar | ||
| 450 | 1.3 | 5-30 bar | 850 | 2 | 5-30 bar | ||
| 500 | 1.5 | 5-30 bar | 900 | 2 | 5-30 bar | ||
| 550 | 1.5 | 5-30 bar | 1000 | 2.5 | 5-30 bar | ||
Other sizes of hose can be made upon request. | |||||||

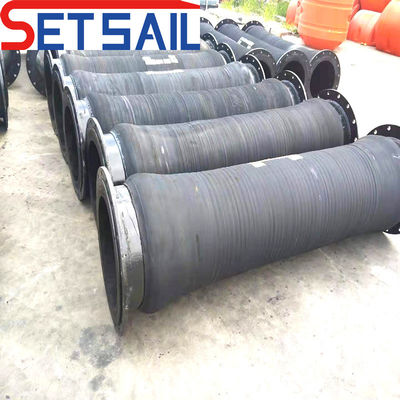

| Rubber hose : it is usesd between both pipe. it makes all pipe line can flexible to change derect in the working , each pipe use the flange to connect each other |

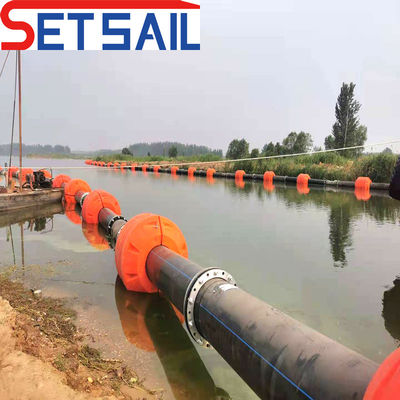

| Floating is uesd for making the all pipe float on the water . maintance easy working lifetime long |
