Product Details:
|
| Features: | Anti-Wear, Anti-Abrasive | Model NO.: | QHCSP-42 |
|---|---|---|---|
| Slot Type: | CTN | Customized: | Customized |
| Condition: | New | Warranty: | 1 Year |
| After-sales Service: | Lifelong | Influent Type Of Impeller: | Single Suction Pump |
| Pump Casing Combined: | Horizontal Split Pumps | Impeller: | Open |
| Customized Support: | OEM | Voltage: | 380V |
| Maximum Solid: | 178 Mm | Color: | Multi -Color |
| Horsepower: | 10-200 | Working Pressure: | High Pressure Pump |
| Position Of Pump Shaft: | Horizontal Pump | Mounting Height: | Suction Centrifugal |
| Application: | Mining Industry, Sand Dredging, Sludge, Mining | Seal Type: | Gland Packing Or Expeller Seal |
| Transport Package: | Naked And Container | Specification: | Water Flow 800m3-20000m3 |
| Trademark: | Set Sail | Origin: | China |
| HS Code: | 8413709990 | Supply Ability: | 5000set/Year |
| Package Size: | 300.00cm * 300.00cm * 300.00cm | Package Gross Weight: | 1000.000kg |
| Type: | Sand Pump | Power Type: | Diesel |
| Cyclone Type: | Hydrocyclone | Samples: | US$ 1000/Set 1 Set(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

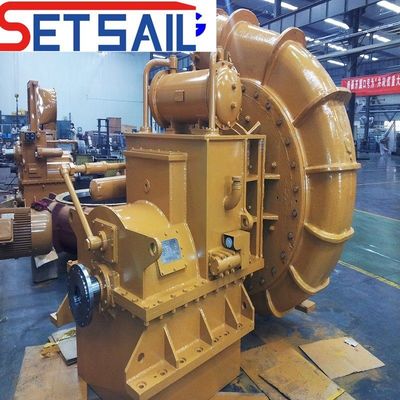

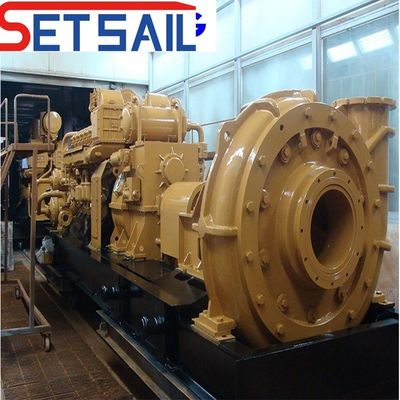

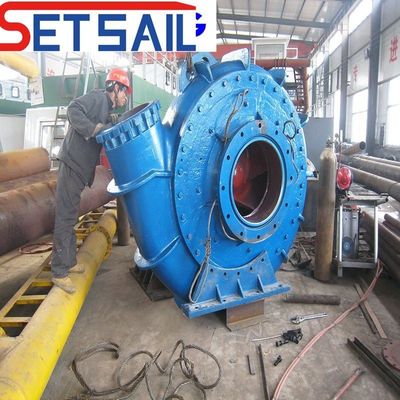

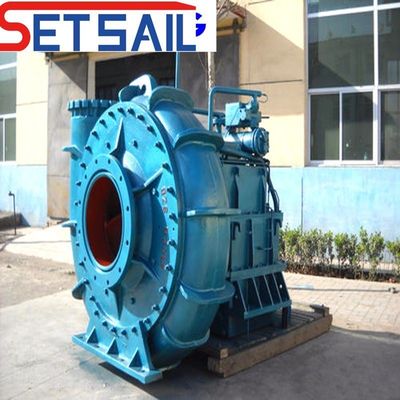

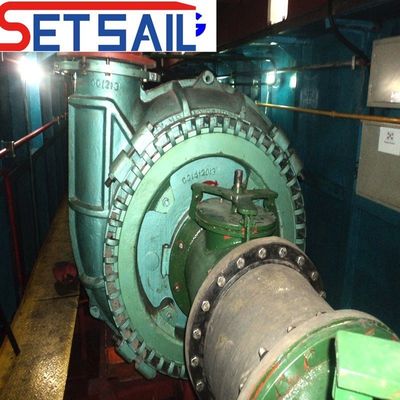

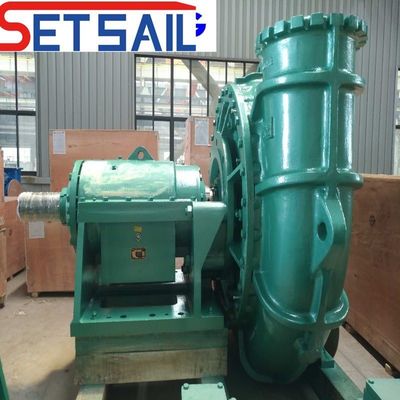

| WN dredging pump is a kinds of new type dredging mud pump .it is made by the all kinds of advance asistance software for dredging of the river lake and hydraulic reclamation so on . The NP-AH type slurry pumps are those of cantilever, horizontal and centrifugal ones, whose shafts can be sealed by packing seals or by centrifugal type seals. The positions of the pump outlet can be positioned at an interval of 45°according to different requirements, so eight different angles can be applied by rotation in installation. The M. AH type slurry pumps have pump bodies (volute liners, front and back liners) that consist of replaceable wear-resistant metal liners or wear-resistant rubber liners, and impellers can also apply wear-resistant metal material or wear-resistant rubber material. The HH type slurry pumps only apply wear-resistant metal material as their pump bodies and impellers. |
| 1 | ★The overall structure is good for ship |
| 2 | ★ Dredging performance is excellent |
| 3 | ★ Good wear resistance, long life of overcurrent parts |
| 4 | ★ Small hydraulic loss, high efficiency, low power consumption |
| 5 | ★ Reliable shaft seal, no leakage |
| 6 | ★Electric turning mechanism, save time and effort |
| Type | water flow (m3/h) | Head (m) | Speed (r/min) | Inlet diameter(mm) | outlet diameter(mm) | Max.diameter of flowd parti |
| 200wn | 750-1000 | 40-65 | 700-850 | 250 | 200 | 180 |
| 250wn | 1100-1300 | 40-65 | 500-650 | 350 | 250 | 144 |
| 300wn | 1800-2200 | 40-65 | 400-550 | 450 | 300 | 241 |
| 350wn | 2600-3000 | 40-65 | 400-550 | 450 | 350 | 245 |
| 400wn | 2800-3200 | 20-40 | 400-550 | 450 | 400 | 250 |
| 450wn | 3200-3850 | 40-67 | 350-500 | 600 | 450 | 254 |
| 500wn | 4500-5500 | 40-65 | 350-450 | 650 | 500 | 250 |
| 600wn | 7000 | 62 | 470 | 700 | 600 | 220 |
| 700wn | 10000 | 85 | 380 | 760 | 700 | 280 |
| 800wn | 12500 | 59 | 349 | 800 | 750 | 300 |
| 850wn | 14400 | 70 | 330 | 900 | 850 | 320 |
| 900wn | 16000. | 30 | 175 | 1000 | 900 | 340 |
| 1000wn | 16000-25000 | 23-76 | 181-290 | 1200 | 1000 | 350 |
