Product Details:
|
| Features: | Anti-Wear, Anti-Abrasive | Model NO.: | QHCSP-50 |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 1 Year | After-sales Service: | Lifelong |
| Influent Type Of Impeller: | Single Suction Pump | Pump Casing Combined: | Horizontal Split Pumps |
| Impeller: | Open | Customized Support: | OEM |
| Voltage: | 380V | Maximum Solid: | 178 Mm |
| Color: | Multi -Color | Horsepower: | 10-200 |
| Working Pressure: | High Pressure Pump | Position Of Pump Shaft: | Horizontal Pump |
| Mounting Height: | Suction Centrifugal | Application: | Mining Industry, Sand Dredging, Sludge, Mining |
| Seal Type: | Gland Packing Or Expeller Seal | Transport Package: | Naked And Container |
| Specification: | Water Flow 800m3-20000m3 | Trademark: | Set Sail |
| Origin: | China | HS Code: | 8413709990 |
| Supply Ability: | 5000set/Year | Package Size: | 1180.00cm * 60.00cm * 60.00cm |
| Package Gross Weight: | 200.000kg | Power Type: | Diesel |
| Cyclone Type: | Hydrocyclone | Slot Type: | CTN |
| Samples: | US$ 1000/Set 1 Set(Min.Order) | | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

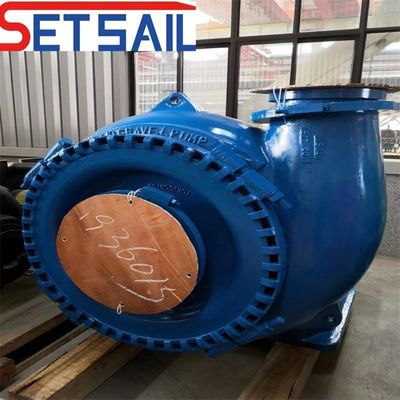

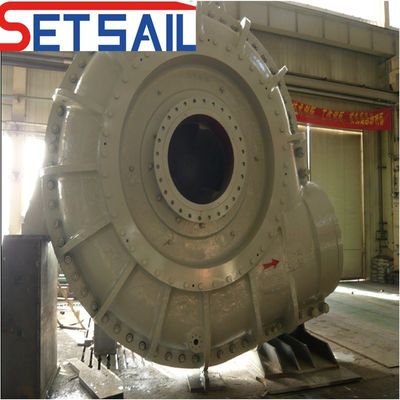

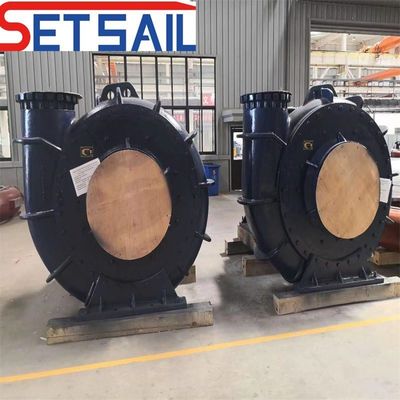

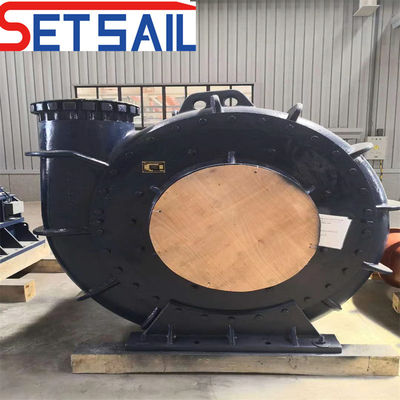

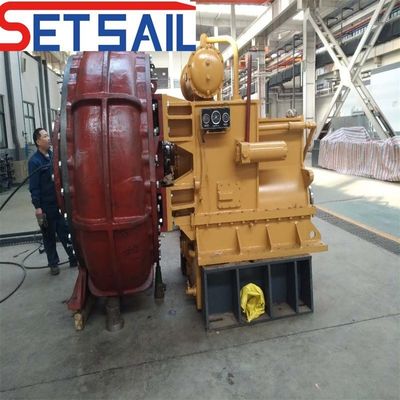

| WN dredging pump is a kinds of new type dredging mud pump .it is made by the all kinds of advance asistance software for dredging of the river lake and hydraulic reclamation so on . |
| 1 | ★The overall structure is good for ship |
| 2 | ★ Dredging performance is excellent |
| 3 | ★ Good wear resistance, long life of overcurrent parts |
| 4 | ★ Small hydraulic loss, high efficiency, low power consumption |
| 5 | ★ Reliable shaft seal, no leakage |
| 6 | ★Electric turning mechanism, save time and effort |
| Type | water flow (m3/h) | Head (m) | Speed (r/min) | Inlet diameter(mm) | outlet diameter(mm) | Max.diameter of flowd parti |
| 200wn | 750-1000 | 40-65 | 700-850 | 250 | 200 | 180 |
| 250wn | 1100-1300 | 40-65 | 500-650 | 350 | 250 | 144 |
| 300wn | 1800-2200 | 40-65 | 400-550 | 450 | 300 | 241 |
| 350wn | 2600-3000 | 40-65 | 400-550 | 450 | 350 | 245 |
| 400wn | 2800-3200 | 20-40 | 400-550 | 450 | 400 | 250 |
| 450wn | 3200-3850 | 40-67 | 350-500 | 600 | 450 | 254 |
| 500wn | 4500-5500 | 40-65 | 350-450 | 650 | 500 | 250 |
| 600wn | 7000 | 62 | 470 | 700 | 600 | 220 |
| 700wn | 10000 | 85 | 380 | 760 | 700 | 280 |
| 800wn | 12500 | 59 | 349 | 800 | 750 | 300 |
| 850wn | 14400 | 70 | 330 | 900 | 850 | 320 |
| 900wn | 16000. | 30 | 175 | 1000 | 900 | 340 |
| 1000wn | 16000-25000 | 23-76 | 181-290 | 1200 | 1000 | 350 |
