Product Details:
|
| Model NO.: | D-1 | Slot Type: | CTS |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Warranty: | 2 Year | After-sales Service: | Lifelong |
| Cutter Teeth Quantity: | 40-60 Pieces | Cutter Blade Quantity: | 5-6 Pieces |
| Power: | Diesel Engine Or Electric | Pump Power: | Diesel Engine Or Electric Motor |
| Moving Way: | Hydraulic Winch And Spud Carrier | Ladder Shape: | Square Or Round Shape |
| Diesel Engine Brand: | Cumins . Cat . Chinese Brand | Steel Plate Type: | Marine Steel |
| Pump Brand: | Shijiazhuang Kingda | PLC Brand: | Simense |
| Hydraulic Brand: | Rexroth . Parker | Optional: | Water Flow Meter . Concentration Meter |
| Length: | 16-65m | Width: | 4-12m |
| Height: | 1.5-3.2m | Transport Package: | Mute |
| Specification: | CCS Cutter Suction Dredger | Trademark: | Set Sail |
| Origin: | Qingzhou City Shandong Province China | HS Code: | 8905100000 |
| Supply Ability: | 100 Sets/Year | Package Size: | 50000.00cm * 8000.00cm * 200.00cm |
| Package Gross Weight: | 32000.000kg | Lead Time: | 60 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces) |
| Type: | Cutter Suction Dredger | Power Type: | Diesel |
| Cyclone Type: | Hydrocyclone | Samples: | US$ 100000/Piece 1 Piece(Min.Order) | |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

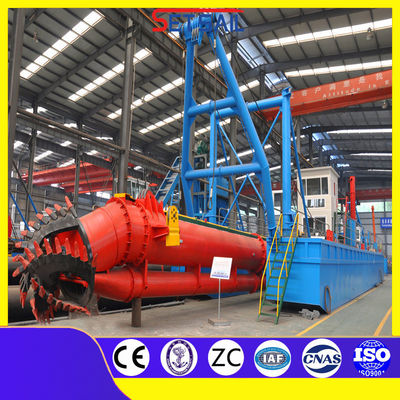

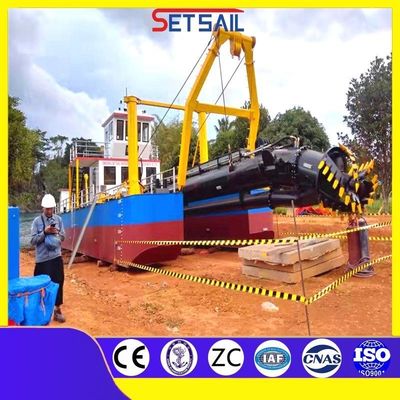

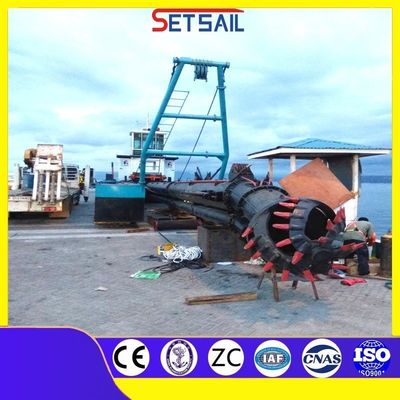

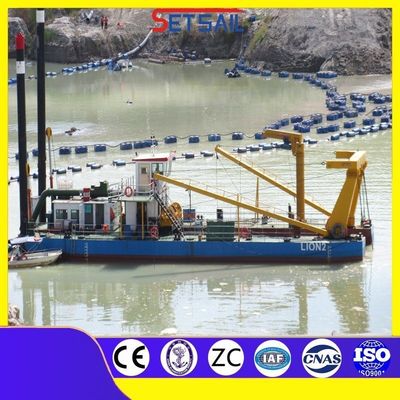

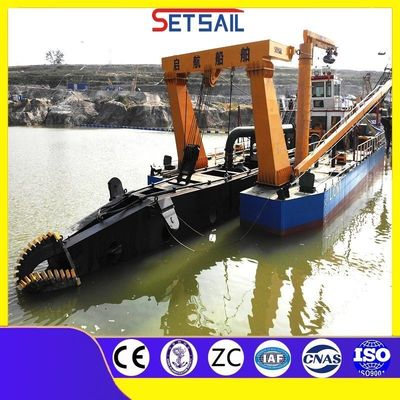

Cutter suction dredger is the one of the best dredging way recent. it is widly used for river . lake . inland waterway .port construction so on . electric power and diesel engine power are avialiable .diesel engine power is normally used for less depth 25m of cutter suction dredger . over dpeth 25m is normally used the underwater pump with electric power . our all equipped equipment from the first-lined brand such as Cat .Cumins and China famous brand . Rexroth. parke and vikes so on for hydraulic system. rich optional equipment water flow meter . concentration meter . depth sounder spud carrier .video monitor and GPS so on . we can according to the customers request to do the large depth suction dredger .
Best parts will be used for the dredgers, like world famous Cumins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.

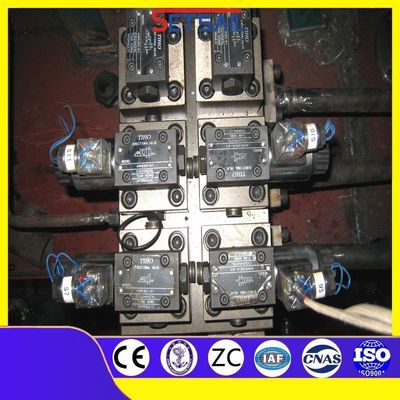

Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.
| NO. item | Total length(m) | Water flow(m3) | Capacity (m3) | Engine power(kw) | Diging depth(m) | Discharge distance(m) | Cutter power(kw) |
| 8 inch | 17 m | 800 m3 | 160 m3 | 220 kw | 8m | 800 m | 30kw |
| 10 inch | 23 m | 1000 m3 | 200 m3 | 336 kw | 9 m | 1000 m | 50 kw |
| 12 inch | 25 m | 1500 m3 | 300 m3 | 559 kw | 10 m | 1200 m | 60 kw |
| 14 inch | 27 m | 2000 m | 400 m3 | 634 kw | 11 m | 1500 m | 70 kw |
| 16 inch | 29 m | 2500 m3 | 500 m3 | 746 kw | 13 m | 1500 m | 70 kw |
| 18 inch | 31 m | 3000 m3 | 600 m,3 | 895 kw | 14 m | 1500 m | 80 kw |
| 20 inch | 36 m | 4000 m3 | 800 m3 | 1268 kw | 15 m | 2000 m | 170 kw |
| 22 inch | 38 m | 4500 m3 | 900 m3 | 1491 kw | 16 m | 2000 m | 170 kw |
| 24 inch | 41 m | 5500 m3 | 1100 m3 | 2190 kw | 16 m | 2000 m | 300 kw |
| 26 inch | 43 m | 6000 m3 | 1200 m3 | 2380 kw | 16 m | 2000 m | 350 kw |
| 28 inch | 45 m | 7000 m3 | 1400 m3 | 3000 kw | 17 m | 2200 m | 500 kw |
| 32 inch | 50 m | 7500 m3 | 1500 m3 | 3500 kw | 17 m | 2500 m | 500 kw |
according to the different size product to arrange the different shipping way . normally container and bulk are availale , we can do the protection steel shelf to protect the important equipment . our all package is suitable for the long distance shipping
| 1 | We can provide the expert engineer and installation team to the working site for guiding |
| 2 | Before transportation product we can inspect the working site and design detailed installation plan |
| 3 | We can offer the full installation equiment list of the customer need . |
| 4 | We can provide the sientific installation plan to keep the safe and smooth |
| 1 | Set Sail dredger factory covers an area of 1500 acres with more than 200 employees. |
| 2 | Factory has manufacture experience more than 20 years. |
| 3 | More than 50 certificated engineers and technicians. |
| 4 | We have certification and patent more than 50 item. It contains ISO CE etc. |
| 5 | Set Sail dredger is sold more than 80 countries . |
| 6 | We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc. |
| *Our factory can offer the long time after -sale service and free spare parts for customers |
| *Our factory can offer the experienced installation team for installation and training the local workers |
| *we can according to the request of customers to choose the reasonable and practical device |
| *we can provide the professional and quick solution for any problem |
| *we have the professional technician regularly to follow up customers |
| *we can sign all kinds of agreement to ensure the customers right |
